Contact: Component To Wire；20-45A，20-8 wire size

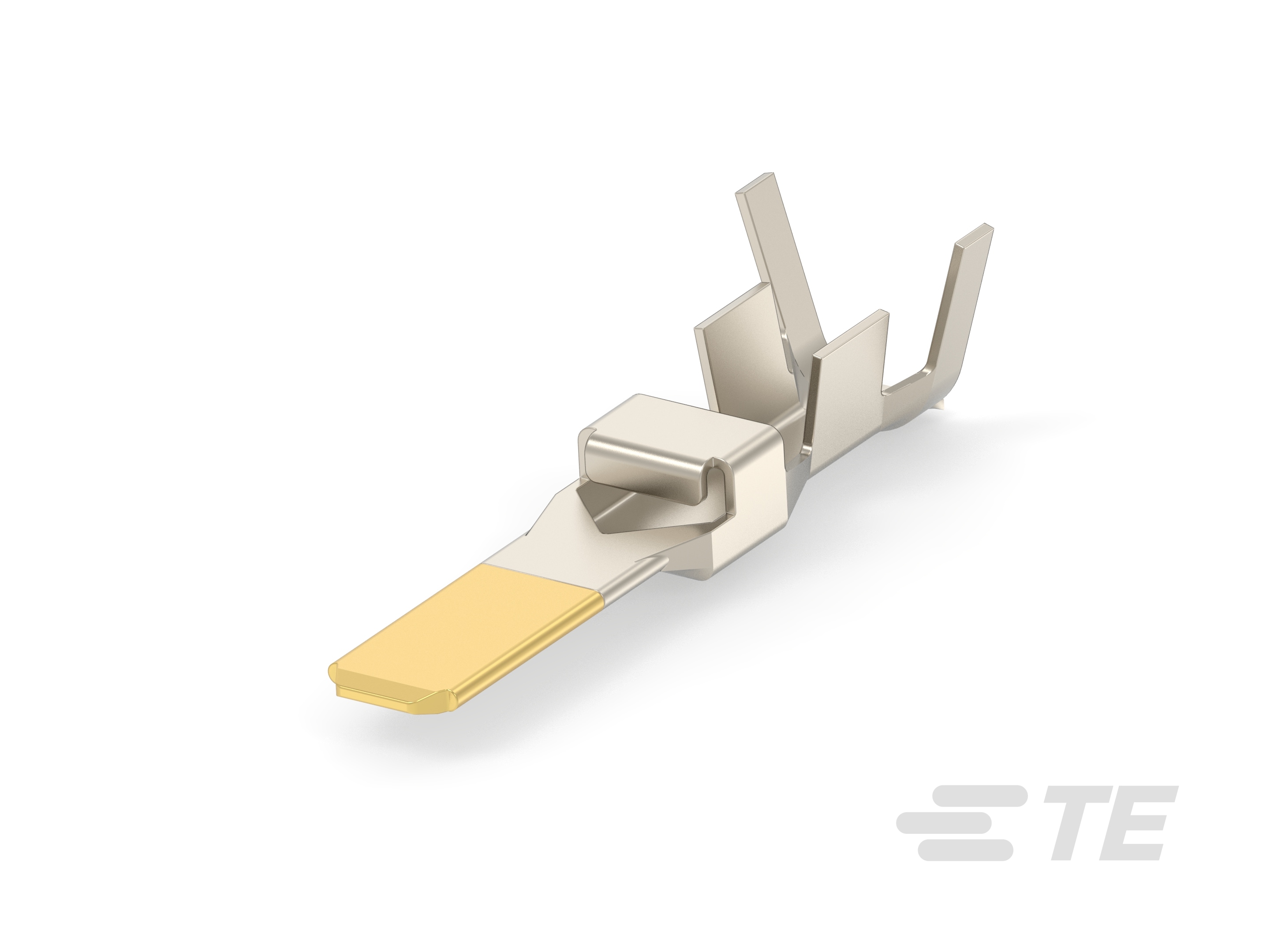

The Dynamic 5000 contact tabs and receptacles are designed with a maximum 45A contact current rating, 20 - 8 wire size and available with gold or silver plating. Used in power circuit applications.

More Less

Image Gallery |

Connect with Us

Product Features

Contact Type : Receptacle | Tab
Contact Mating Area Plating Material : Gold (Au) | Gold Flash over Palladium Nickel | Silver (Ag)
Operating Voltage (VAC): 250 | 630
Operating Voltage (VDC): 630
Contact Retention Within Housing : With

Available from

Product	TE Part #	Documents	Contact Type	Contact Mating Area Plating Material	Operating Voltage	Operating Voltage	Contact Retention Within Housing	Compatible With Wire & Cable Type	Wire Size	Wire Size	Termination Method to Wire & Cable	Contact Base Material	Sealable	Contact Current Rating (Max)	Operating Temperature Range
D5000 TAB CONT M LONG REEL AU PLATING Buy on te.com	84695-1	Product Drawing 3D PDF	Tab	Gold (Au)	250 VAC	-	-	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-30 – 105 °C
D5000 TAB CONT S LONG REEL AU PLATING	84696-1	Product Drawing 3D PDF	Tab	Gold (Au)	-	-	-	-	-	-	-	-	16 – 14 AWG	1.23 – 2.27 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT. S FORM PdNi PL Buy on te.com	179955-2	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	630 VDC	-	-	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT. S FORM. PdNi PL	179955-3	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	630 VDC	-	-	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 REC S AG FORM Buy on te.com	179955-6	3D PDF	Receptacle	Silver (Ag)	630 VAC	630 VDC	-	-	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	45 A	-55 – 105 °C
DYNAMIC D-5 REC CONT. M FORM PdNi PL Buy on te.com	179956-2	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	630 VDC	-	-	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT M FORM. PdNi PL	179956-3	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	630 VDC	-	-	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 REC M AG FORM	179956-6	3D PDF	Receptacle	Silver (Ag)	630 VAC	630 VDC	-	-	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	45 A	-55 – 105 °C
DYNAMIC D-5 REC CONT. S PdNi PL L/P Buy on te.com	316040-2	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	630 VDC	-	-	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT. S PdNi PL L/P Buy on te.com	316040-3	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	630 VDC	-	-	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT S L/P Buy on te.com	316040-6	Product Drawing 3D PDF	Receptacle	Silver (Ag)	630 VAC	630 VDC	-	-	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	45 A	-55 – 105 °C
DYNAMIC D-5 REC CONT. M L/P PdNi PL Buy on te.com	316041-2	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	630 VDC	-	-	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT. M PdNi PL L/P Buy on te.com	316041-3	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	630 VDC	-	-	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT M L/P Buy on te.com	316041-6	Product Drawing 3D PDF	Receptacle	Silver (Ag)	630 VAC	630 VDC	-	-	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	45 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT. PdNi PL (S) Buy on te.com	917802-2	3D PDF	Tab	Gold Flash over Palladium Nickel	630 VAC	630 VDC	With	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT. PdNi PL (S)	917802-3	3D PDF	Tab	Gold Flash over Palladium Nickel	630 VAC	630 VDC	With	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT. M PdNi PL Buy on te.com	917803-2	3D PDF	Tab	Gold Flash over Palladium Nickel	630 VAC	630 VDC	With	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT. M PdNi PL Buy on te.com	917803-3	3D PDF	Tab	Gold Flash over Palladium Nickel	630 VAC	630 VDC	With	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT. PdNi PL S L/P Buy on te.com	917804-2	3D PDF	Tab	Gold Flash over Palladium Nickel	630 VAC	630 VDC	With	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT. PdNi PL S L/P	917804-3	3D PDF	Tab	Gold Flash over Palladium Nickel	630 VAC	630 VDC	With	Discrete Wire	16 – 14 AWG	1.23 – 2.27 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT "S" L/P Ag	917804-6	3D PDF	Tab	Silver (Ag)	-	-	-	-	-	-	-	-	16 – 14 AWG	1.23 – 2.27 mm²	-	-	-	-	-	-	45 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT. PdNi PL M L/P	917805-2	Product Drawing 3D PDF	Tab	Gold Flash over Palladium Nickel	630 VAC	630 VDC	With	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONT. PdNi PL M L/P Buy on te.com	917805-3	Product Drawing 3D PDF	Tab	Gold Flash over Palladium Nickel	630 VAC	630 VDC	With	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONTACT"M"SIZE Buy on te.com	917805-6	Product Drawing 3D PDF	Tab	Silver (Ag)	630 VAC	630 VDC	With	Discrete Wire	12 – 10 AWG	3.08 – 5.5 mm²	Crimp	Copper Alloy	No	45 A	-55 – 105 °C
DYNAMIC D-5 REC CONT L FORM. PdNi PL	1318696-2	3D PDF	Receptacle	Gold Flash over Palladium Nickel	-	-	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT L	1318696-6	3D PDF	Receptacle	Silver (Ag)	630 VAC	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	Crimp	Copper Alloy	-	-	45 A	-55 – 105 °C
DYNAMIC D-5 REC CONT L PdNi PL L/P	1318697-2	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	Crimp	Copper Alloy	-	-	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT L L/P Buy on te.com	1318697-6	3D PDF	Receptacle	Silver (Ag)	630 VAC	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	Crimp	Copper Alloy	-	-	45 A	-55 – 105 °C
DYNAMIC D-5 REC CONT SS FORM A PdNi PL	1318985-2	3D PDF	Receptacle	Gold Flash over Palladium Nickel	630 VAC	-	-	-	-	-	-	20 – 16 AWG	.5 – 1.42 mm²	Crimp	Copper Alloy	-	-	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT SS FORM A PdNi PL	1318985-3	3D PDF	Receptacle	Gold Flash over Palladium Nickel	-	-	-	-	-	-	-	-	20 – 16 AWG	.5 – 1.42 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT SS FORM	1318985-6	3D PDF	Receptacle	Silver (Ag)	630 VAC	-	-	-	-	-	-	20 – 16 AWG	.5 – 1.42 mm²	Crimp	Copper Alloy	-	-	45 A	-55 – 105 °C
DYNAMIC D-5 REC CONT SS L/P PdNi PL	1318986-2	3D PDF	Receptacle	Gold Flash over Palladium Nickel	-	-	-	-	-	-	-	-	20 – 16 AWG	.5 – 1.42 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT SS L/P PdNi PL	1318986-3	3D PDF	Receptacle	Gold Flash over Palladium Nickel	-	-	-	-	-	-	-	-	20 – 16 AWG	.5 – 1.42 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
DYNAMIC D-5 REC CONT SS L/P	1318986-6	3D PDF	Receptacle	Silver (Ag)	630 VAC	-	-	-	-	-	-	20 – 16 AWG	.5 – 1.42 mm²	Crimp	Copper Alloy	-	-	45 A	-55 – 105 °C
DYNAMIC D-5 TAB CONTACT_L-SIZE	1747443-6	Product Drawing 3D PDF	Tab	Silver (Ag)	630 VAC	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	Crimp	Copper Alloy	-	-	45 A	-55 – 105 °C
DYNAMIC D-5 TAB CONTACT L SIZE PdNi PL	1981690-2	Product Drawing 3D PDF	Tab	Gold Flash over Palladium Nickel	-	-	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
DYNAMIC D-5 TAB CONTACT PdNi PL L L/P	1981691-2	3D PDF	Tab	Gold Flash over Palladium Nickel	-	-	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
D5000 TAB CONT M LONG L/P AU	2013593-1	Product Drawing 3D PDF	Tab	Gold (Au)	-	-	-	-	-	-	-	-	12 – 10 AWG	3.08 – 5.5 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
D5000 TAB CONT S LONG L/P AU Buy on te.com	2013594-1	Product Drawing 3D PDF	Tab	Gold (Au)	-	-	-	-	-	-	-	-	16 – 14 AWG	1.23 – 2.27 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
D5000 TAB CONT L LONG REEL Ag PLATING	2174021-1	Product Drawing 3D PDF	Tab	Silver (Ag)	-	-	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
D5000 TAB CONT L LONG L/P Ag Buy on te.com	2174022-1	Product Drawing 3D PDF	Tab	Silver (Ag)	-	-	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
D5 TAB LONG AU L SIZE	2316819-1	Product Drawing 3D PDF	Tab	Gold (Au)	-	-	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C
D5 TAB LONG AU L SIZE L/P	2316820-1	Product Drawing 3D PDF	Tab	Gold (Au)	-	-	-	-	-	-	-	-	8 AWG	7.95 – 8.92 mm²	-	-	-	-	-	-	30 A	-55 – 105 °C

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Discrete Wire Type Solid or Stranded | Stranded
Sealable No

Configuration Features

Compatible With Wire & Cable Type Discrete Wire

Electrical Characteristics

Operating Voltage (VAC) 250 | 630
Operating Voltage (VDC) 630

Contact Features

Contact Length (mm) 23.4 | 33.7 | 37.9
Contact Length (in) .921 | 1.327 | 1.49
Barrel Type Open
Contact Shape & Form Rectangular
Contact Type Receptacle | Tab
Contact Mating Area Plating Material Gold (Au) | Gold Flash over Palladium Nickel | Silver (Ag)
Contact Retention Within Housing With
Contact Base Material Copper Alloy
Contact Current Rating (Max) (A) 30 | 45
Mating Tab Width 6.4 mm [ .25 in ]
Mating Tab Thickness (mm) .8 | 1
Mating Tab Thickness (in) .031 | .039
Contact Mating Area Plating Material Thickness (µm) .2 | .38 | .76 | 2.54
Contact Mating Area Plating Material Thickness (µin) 7.9 | 15 | 30 | 100
Contact Orientation Straight
Contact Underplating Material Nickel

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire & Cable

Mechanical Attachment

Wire Insulation Support With

Dimensions

Wire Size (AWG) 8 | 12 – 10 | 16 – 14 | 20 – 16
Wire Size (mm²) .5 – 1.42 | 1.23 – 2.27 | 3.08 – 5.5 | 7.95 – 8.92
Compatible Insulation Diameter Range (mm) 1.8 – 3.23 | 3 – 3.8 | 4 – 5.2 | 4.9 – 7.8
Compatible Insulation Diameter Range (in) .071 – .127 | .118 – .15 | .157 – .205 | .193 – .307

Usage Conditions

Operating Temperature Range (°C) -55 – 105 | -30 – 105
Operating Temperature Range (°F) -67 – 221 | -22 – 221

Operation/Application

Circuit Application Power

Industry Standards

UL Flammability Rating UL 94V-0

Packaging Features

Packaging Quantity 500 | 1500 | 2400 | 3000 | 3600 | 4000 | 4500 | 5400 | 6000
Packaging Method Bag & Box | Package/Box | Reel & Box
