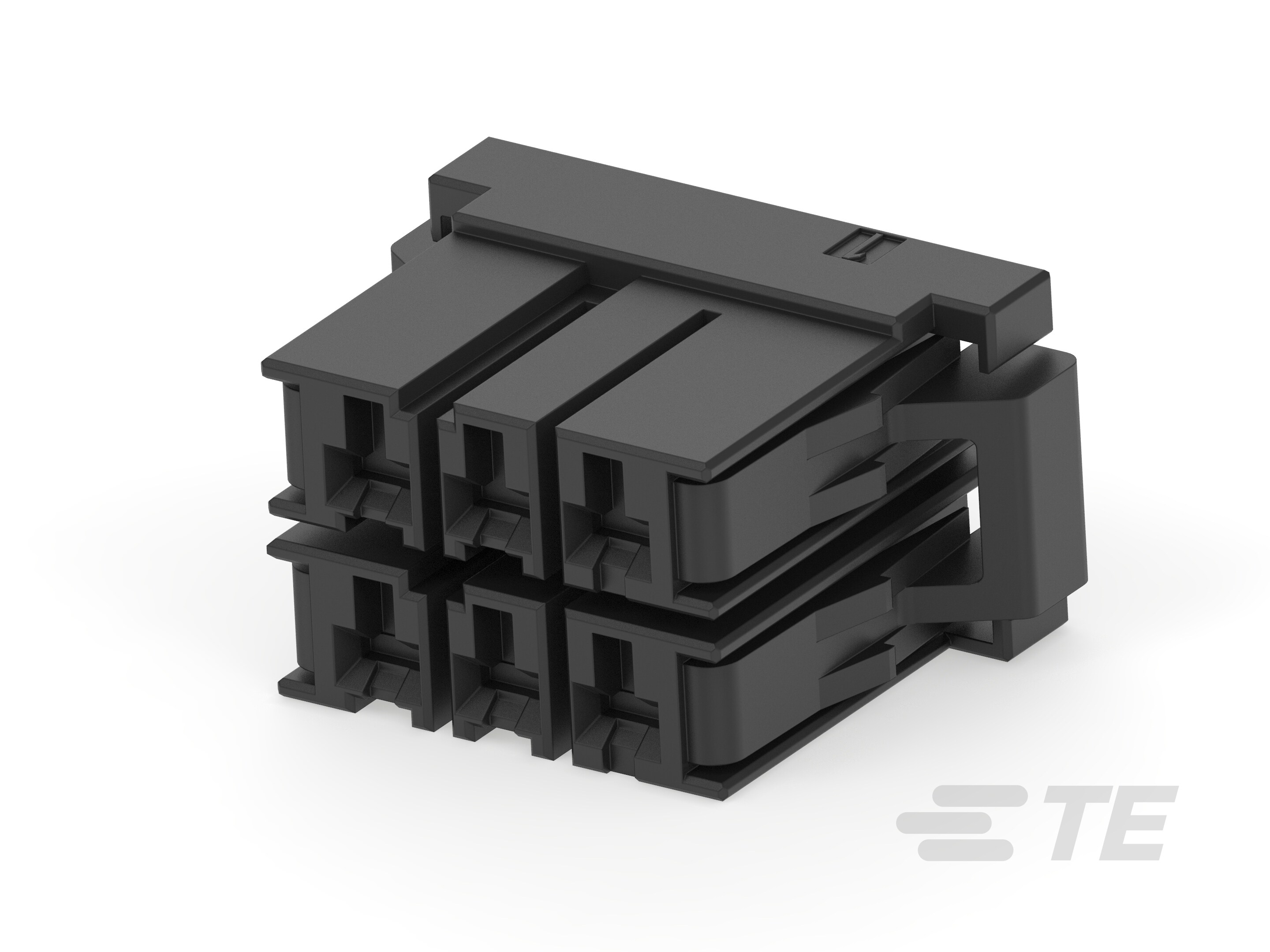

Receptacle and Tab Housing: 6.35 mm pitch, 600V

Receptacle and Tab Housing: 6.35 mm pitch, 600V-CAT-D9934-A78A
More Less
Connect with Us

Product Features

  • Connector Product Type : Housing

  • Connector & Housing Type : Housing for Male Terminals | Receptacle

  • Connector & Housing Type : Housing for Male Terminals | Receptacle

  • Connector System : Wire-to-Board | Wire-to-Wire

  • UL Flammability Rating : UL 94V-0

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Housing

  • Connector & Housing Type  Housing for Male Terminals | Receptacle

  • Connector & Housing Type  Housing for Male Terminals | Receptacle

  • Connector System  Wire-to-Board | Wire-to-Wire

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  2 | 3 | 4 | 6

  • Number of Rows  1 | 2

  • Number of Rows  1 | 2

Body Features

  • Primary Product Color  Black

  • Primary Product Color  Black

Contact Features

  • Contact Base Material  Copper Alloy

  • Contact Type  Receptacle

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Mating Retention  With

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging) | Panel Mount

Housing Features

  • Centerline (Pitch)  6.35 mm [ .25 in ]

  • Housing Material  Polyester GF

Dimensions

  • Connector Length (mm) 33.7 | 40.05

  • Connector Length (in) 1.32 | 1.57

  • Connector Width  23 mm [ .9 in ]

  • Connector Height  8.5 mm [ .33 in ]

  • Row-to-Row Spacing  8.8 mm [ .346 in ]

  • Row-to-Row Spacing  8.8 mm [ .346 in ]

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Power

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  200 | 250

  • Packaging Method  Bag

Reference Number

  • TE Internal Number CAT-D9934-A78A
