Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Discrete Wire Type  Stranded

Configuration Features

  • Compatible With Wire & Cable Type  Discrete Wire

Electrical Characteristics

  • Operating Voltage (VAC) 600

  • Operating Voltage (VDC) 600

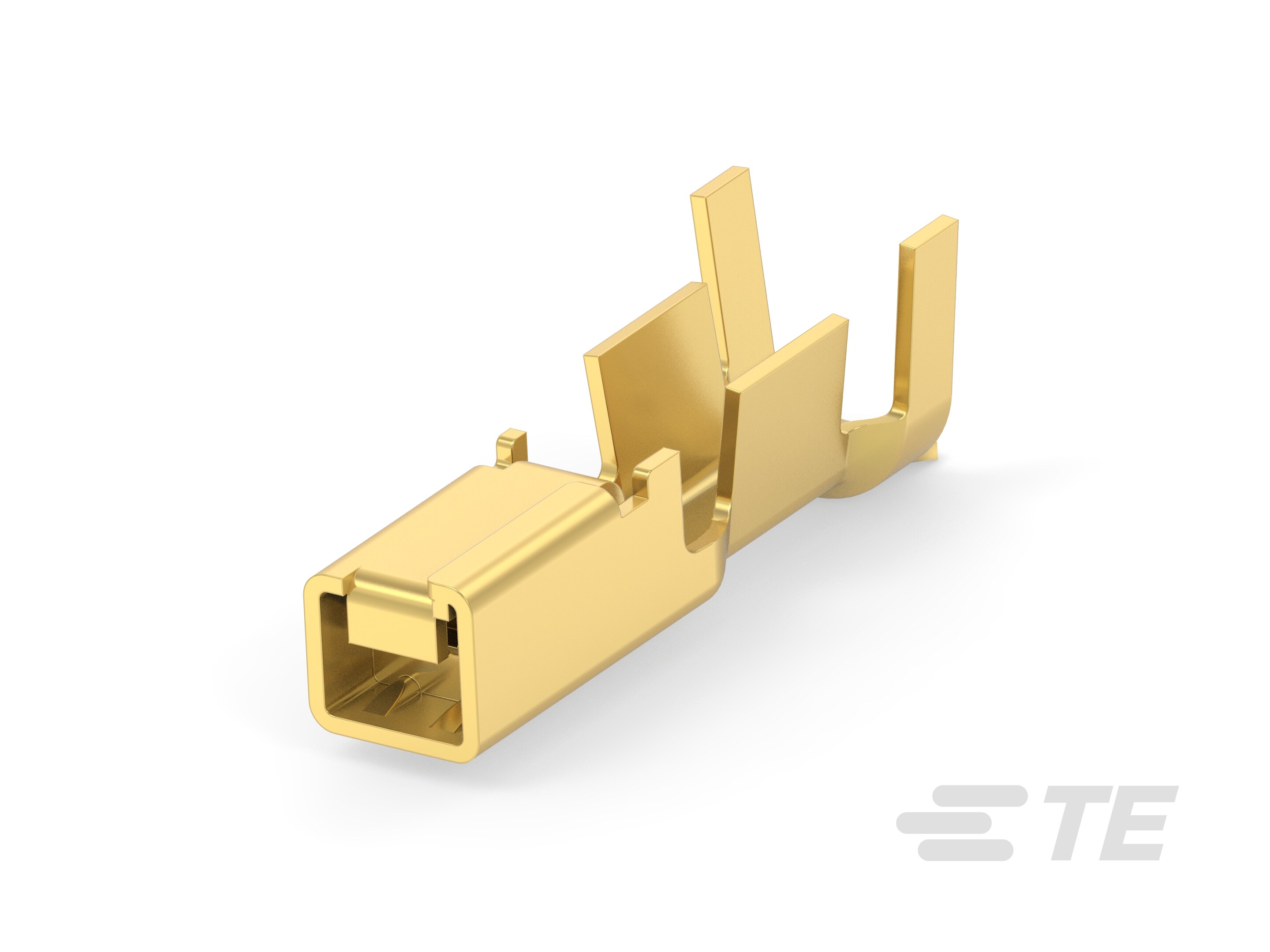

Contact Features

  • Contact Length (mm) 17.1 | 17.8 | 21.8 | 25.5

  • Contact Length (in) .673 | .701 | .858 | 1.003

  • Barrel Type  Open

  • Contact Type  Receptacle | Tab

  • Contact Mating Area Plating Material  Gold (Au)

  • Contact Base Material  Copper Alloy

  • Contact Current Rating (Max) (A) 24

  • Mating Tab Width  3.1 mm [ .122 in ]

  • Mating Tab Thickness  .8 mm [ .031 in ]

  • Contact Mating Area Plating Material Thickness  .38 µm [ 15 µin ]

  • Contact Orientation  Straight

  • Contact Underplating Material  Nickel

  • Contact Underplating Material Thickness (µm) 1.27 | 1.3

  • Contact Underplating Material Thickness (µin) 50 | 51.18

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Product Terminates To  Wire & Cable

Mechanical Attachment

  • Wire Insulation Support  With

Dimensions

  • Wire Size (AWG) 14 – 12 | 16 – 14 | 20 – 16

  • Wire Size (mm²) .5 – 1.42 | 1.23 – 2.27 | 2.08 – 3.62

  • Compatible Insulation Diameter Range (mm) 1.8 – 3.23 | 2 – 3.75 | 2.9 – 4.1

  • Compatible Insulation Diameter Range (in) .071 – .127 | .078 – .149 | .079 – .148 | .114 – .161

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Power

Packaging Features

  • Packaging Quantity  500 | 2500 | 8000

  • Packaging Method  Bag & Box | Reel & Box

Reference Number

  • TE Internal Number CAT-D9934-A78
