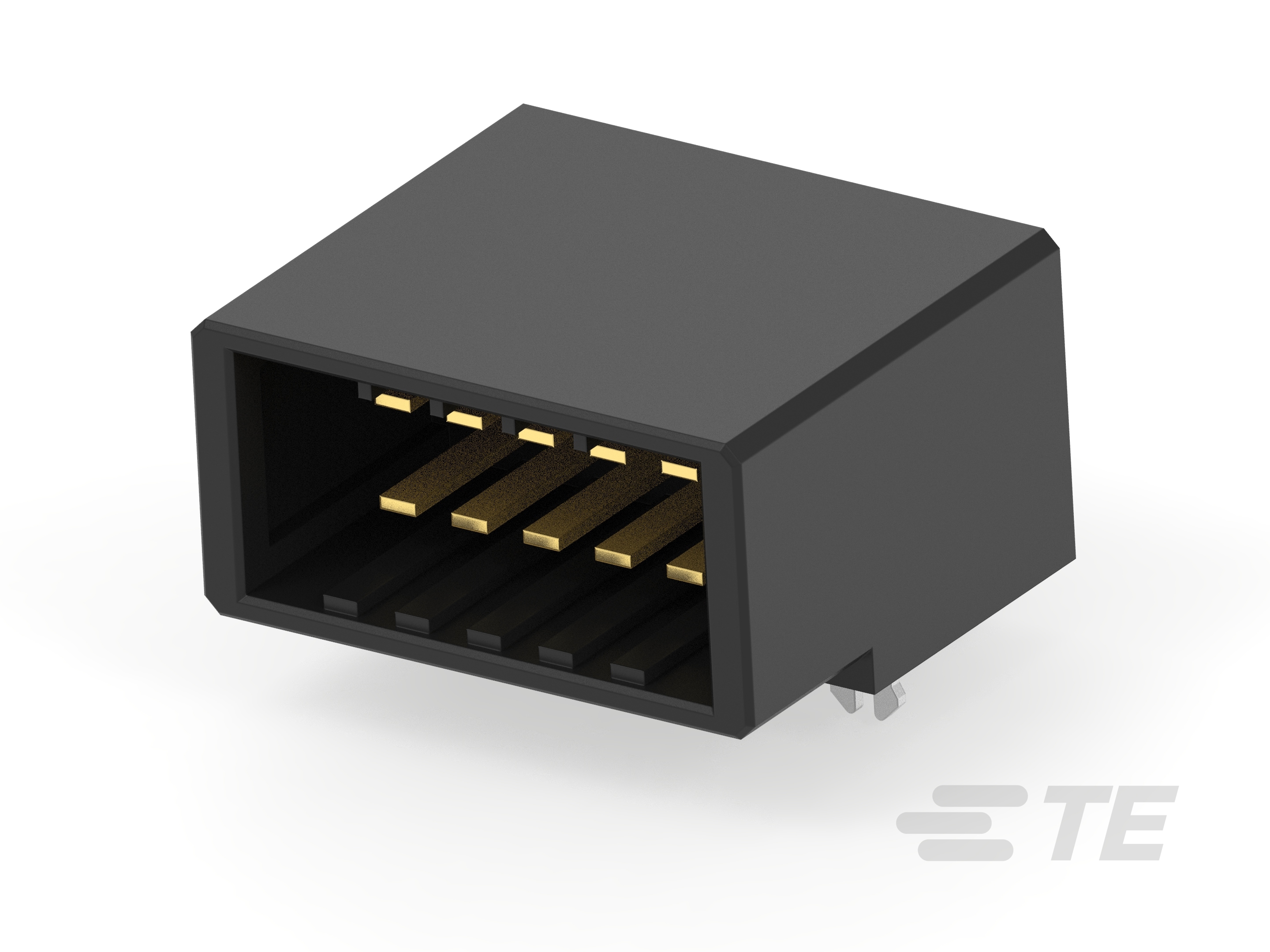

Header Assembly: Wire-to-Board, 15A, gold or tin plated

Header Assembly: Wire-to-Board, 15A, gold or tin plated-CAT-D9934-A75E
The Dynamic 3100 Header is designed with 3.81 mm pitch with multiple positions, available with gold or tin plating. It carries a 15A current rating and 250V. Used for power circuit application. UL 94 V-0 Flammability Rating.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Horizontal | Vertical

  • Connector System : Wire-to-Board

  • Number of Positions : 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20

  • Centerline (Pitch) : 3.81 mm [ .15 in ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Shape  Rectangular

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Horizontal | Vertical

  • Number of Positions  3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20

  • Number of Rows  1 | 2

Electrical Characteristics

  • Operating Voltage (VAC) 250

  • Operating Voltage (VDC) 250

Body Features

  • Connector & Keying Code  X

  • Primary Product Color  Black | Natural

Contact Features

  • Contact Underplating Material  Nickel

  • Contact Layout  Matrix

  • Contact Shape & Form  Rectangular

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Gold (Au) | Gold Flash over Palladium Nickel | Gold or Gold Flash over Palladium Nickel | Tin (Sn)

  • Contact Mating Area Plating Material Finish  Matte

  • Contact Mating Area Plating Material Thickness (µm) .381 | .76 | 2

  • Contact Mating Area Plating Material Thickness (µin) 15 | 30 | 80

  • Contact Type  Pin | Tab

  • Contact Current Rating (Max) (A) 8 | 9.5 | 12 | 15

  • PCB Contact Termination Area Plating Material  Tin

Termination Features

  • Termination Post & Tail Length  3.8 mm [ .149 in ]

  • Termination Method to PCB  Surface Mount | Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Retention Leg | Solder Peg

  • PCB Mount Alignment Type  None

  • Mating Alignment Type  Keyed | Polarization

  • PCB Mount Alignment  Without

  • Mating Retention  With

  • PCB Mount Retention  With

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Centerline (Pitch)  3.81 mm [ .15 in ]

  • Housing Material  Polyester GF | Polyphenylene Sulfide (PPS) | Thermoplastic GF | Thermoplastic Polyester GF

Dimensions

  • Connector Length (mm) 21.62 | 25.43 | 29.24 | 33.05 | 40.67 | 48.29

  • Connector Length (in) .85 | .851 | 1 | 1.15 | 1.3 | 1.6 | 1.9

  • Row-to-Row Spacing  5.08 mm [ .2 in ]

  • Connector Width (mm) 21.6 | 22.1 | 25.91

  • Connector Width (in) .85 | .87 | 1.02

  • Connector Height (mm) 9.35 | 15.93

  • Connector Height (in) .36 | .62 | 3.68

Usage Conditions

  • Operating Temperature (Max)  105 °C [ 221 °F ]

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Power | Power & Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  10 | 12 | 15 | 17 | 19 | 23 | 60

  • Packaging Method  Box | Tube

Reference Number

  • TE Internal Number CAT-D9934-A75E
