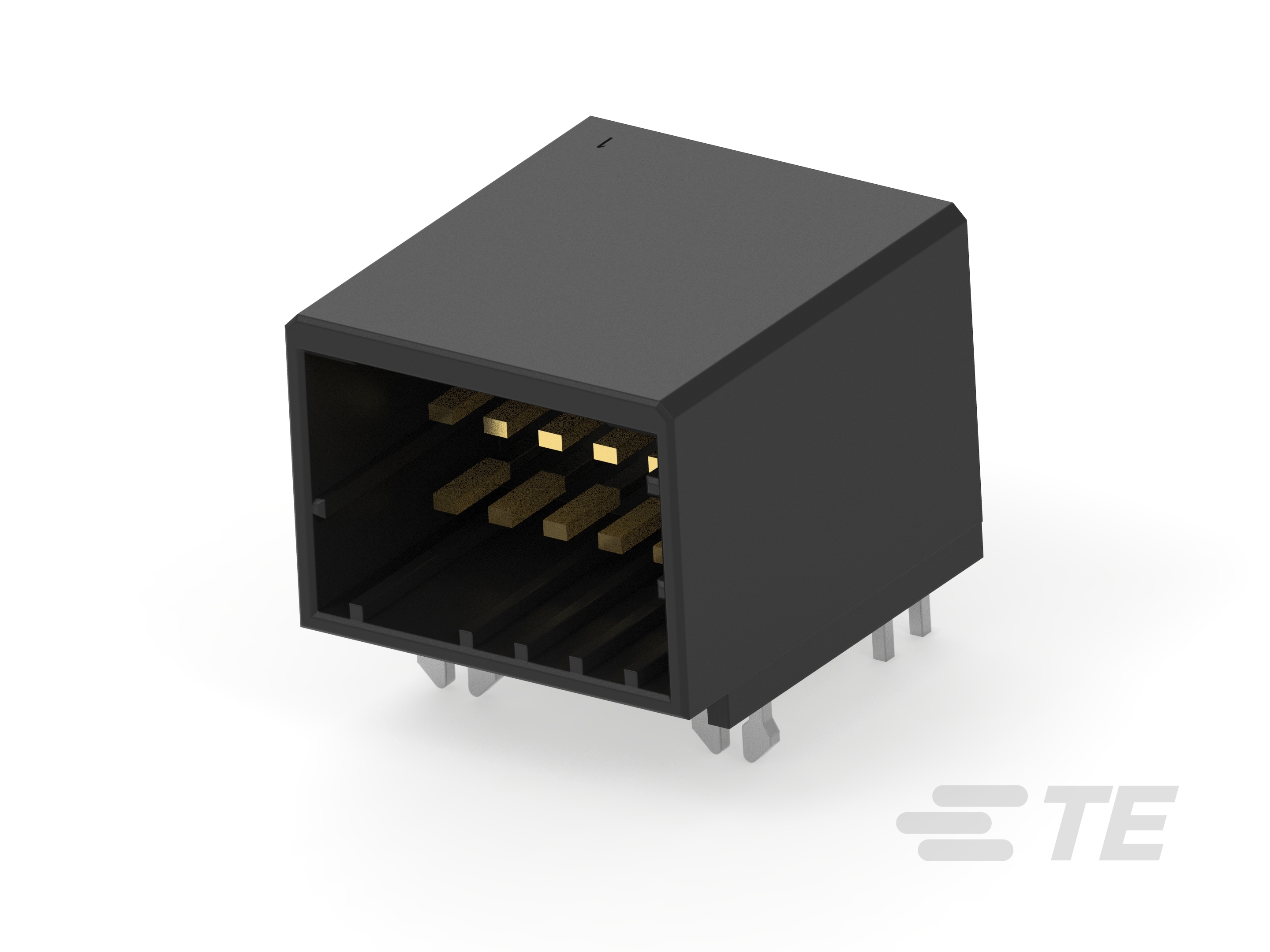

Header Assembly: Wire-to-Board, 5A, gold plated

Header Assembly: Wire-to-Board, 5A, gold plated-CAT-D9934-A66B
The Dynamic 2000 Header is designed with a 2.5 mm pitch with multiple positions, available with gold plating. It carries a 5A current rating and 250V. Used for signal circuit application. UL 94 V-0 Flammability Rating.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Horizontal | Vertical

  • Connector System : Wire-to-Board

  • Number of Positions : 3 | 6 | 8 | 12 | 16 | 20 | 48

  • Centerline (Pitch) (mm): 2.5 | 3.81

  • Centerline (Pitch) (in): .099 | .15

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Horizontal | Vertical

  • Number of Positions  3 | 6 | 8 | 12 | 16 | 20 | 48

  • Number of Rows  1 | 2 | 3

Electrical Characteristics

  • Operating Voltage (VAC) 250

  • Operating Voltage (VAC) 250

Body Features

  • PCB Retention Feature Material  Brass

  • PCB Retention Feature Plating Material  Tin over Nickel

  • Connector & Keying Code  X | Y | Z

  • Primary Product Color  Black | Natural

Contact Features

  • Contact Mating Area Length  6.25 mm [ .246 in ]

  • PCB Contact Termination Area Plating Material Thickness  2 µm [ 78.73 µin ]

  • Mating Tab Thickness  .5 mm [ .019 in ]

  • Contact Base Material  Copper Alloy

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Underplating Material  Nickel

  • Contact Layout  Inline | Matrix

  • Contact Shape & Form  Rectangular

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Mating Area Plating Material  Gold (Au)

  • Contact Mating Area Plating Material Thickness  .381 µm [ 15 µin ]

  • Contact Type  Pin | Tab

  • Contact Current Rating (Max) (A) 5 | 20 | 30

Termination Features

  • Termination Post & Tail Length (mm) 3.4

  • Termination Post & Tail Length (in) .133 | .134

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Boardlock | Retention Leg

  • Panel Mount Feature  Without

  • Mating Alignment Type  Keyed | Polarization

  • Mating Retention Type  Latch

  • PCB Mount Alignment  Without

  • Mating Retention  With

  • PCB Mount Retention  With

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Centerline (Pitch) (mm) 2.5 | 3.81

  • Centerline (Pitch) (in) .099 | .15

  • Housing Material  Polyester GF | Thermoplastic GF

Dimensions

  • PCB Thickness (Recommended) (mm) 1.6

  • PCB Thickness (Recommended) (in) .062 | .063

  • Connector Length (mm) 22.7 | 55.9

  • Connector Length (in) .89 | 2.2

  • Connector Length (mm) 22.7 | 55.9

  • Connector Height (mm) 13.2 | 21.6

  • Connector Height (in) .51 | .519 | .85

  • Row-to-Row Spacing (mm) 2.5 | 3.75

  • Row-to-Row Spacing (in) .098 | .147

  • Connector Width (mm) 17.79 | 18 | 20.19

  • Connector Width (in) .7 | .794

Usage Conditions

  • Operating Temperature (Max)  105 °C [ 221 °F ]

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Power | Power & Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  8 | 17 | 21 | 37 | 46

  • Packaging Method  Box | Box & Tube | Tube

Reference Number

  • TE Internal Number CAT-D9934-A66B
