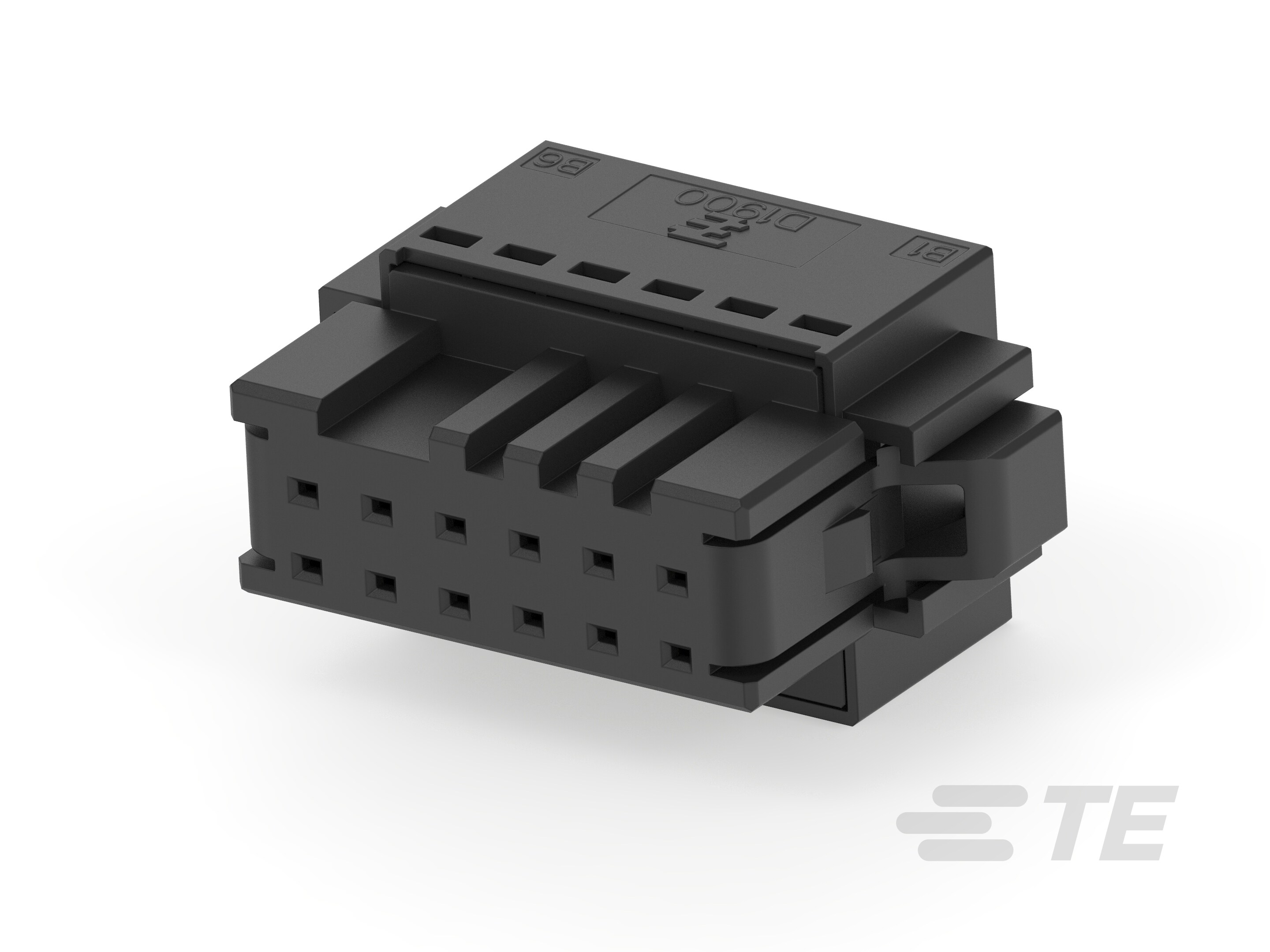

Receptacle Housing: Spring clamp, 3.5 mm pitch, 150V

Receptacle Housing: Spring clamp, 3.5 mm pitch, 150V-CAT-D9934-A15I
The Dynamic 1900 receptacle housing cage is designed in a 3.5 mm pitch with multiple positions. Spring clamped contacts on sides, gold-plating. This style supports field installation. UL 94 V-0 Flammability Rating.
More Less
Connect with Us

Product Features

  • Connector Product Type : Connector Assembly | Housing

  • Connector & Housing Type : Receptacle

  • Connector System : Wire-to-Board

  • UL Flammability Rating : UL 94V-0

  • Number of Positions : 8 | 12 | 16 | 22 | 30 | 38

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly | Housing

  • Connector & Housing Type  Receptacle

  • Connector System  Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  8 | 12 | 16 | 22 | 30 | 38

  • Number of Rows  2

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Base Material  Copper Alloy

  • Contact Type  Receptacle

  • Contact Current Rating (Max) (A) 1 | 4.5

Termination Features

  • Termination Method to Wire & Cable  Clamp | Crimp

Mechanical Attachment

  • Strain Relief  Without

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Centerline (Pitch)  3.5 mm [ .137 in ]

  • Housing Material  Polyester GF

Dimensions

  • Connector Length  32.2 mm [ 1.26 in ]

  • Wire Size (AWG) 24 – 18

  • Connector Width  20.6 mm [ .81 in ]

  • Connector Height  16.4 mm [ .64 in ]

  • Wire Size (mm²) .5 – .1

  • Row-to-Row Spacing  3.3 mm [ .129 in ]

Usage Conditions

  • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

  • Circuit Application  Power & Signal | Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  48

  • Packaging Method  Tray

Reference Number

  • TE Internal Number CAT-D9934-A15I
