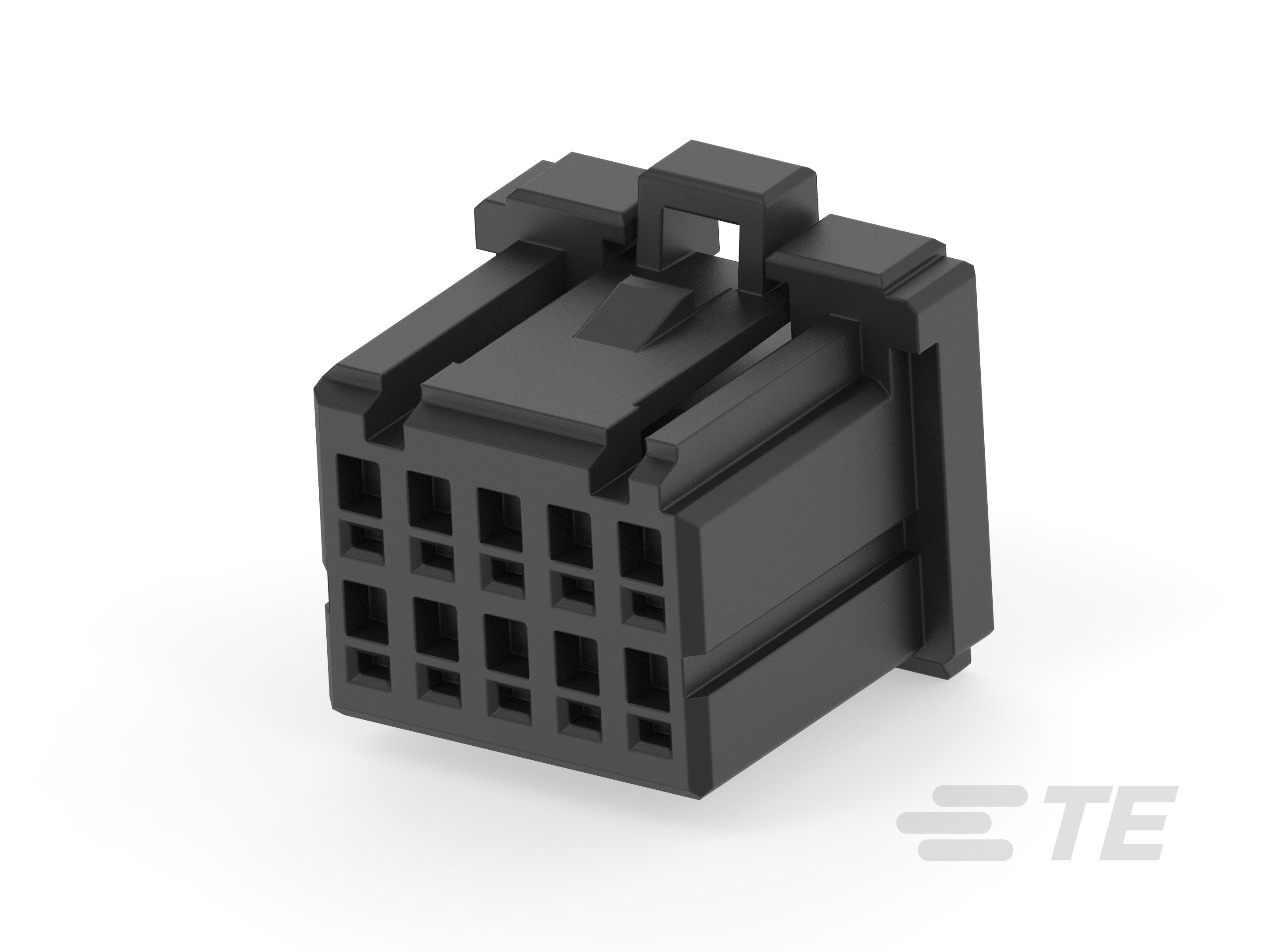

DYNAMIC 1100 REC AND TAB HSG

DYNAMIC 1100 REC AND TAB HSG-CAT-D9934-A15A
More Less
Connect with Us

Product Features

  • Connector Product Type : Housing

  • Connector & Housing Type : Housing for Male Terminals | Plug | Receptacle

  • Connector & Housing Type : Housing for Male Terminals | Plug | Receptacle

  • Connector System : Wire-to-Board | Wire-to-Panel | Wire-to-Wire

  • UL Flammability Rating : UL 94V-0

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Compatible With Discrete Wire Type  Stranded

  • Connector Product Type  Housing

  • Connector & Housing Type  Housing for Male Terminals | Plug | Receptacle

  • Connector & Housing Type  Housing for Male Terminals | Plug | Receptacle

  • Connector System  Wire-to-Board | Wire-to-Panel | Wire-to-Wire

  • Sealable  No

  • Connector & Contact Terminates To  Flexible Printed Circuit (FPC) | Wire & Cable

Configuration Features

  • Insertion Force (Newton) 7.84

  • Number of Positions  4 | 8 | 10 | 12 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 40

  • Number of Rows  1 | 2

  • Number of Rows  1 | 2

Electrical Characteristics

  • Operating Voltage (VAC) 125

  • Operating Voltage (VDC) 125

Body Features

  • Primary Product Color  Black | Natural | Red | Yellow

  • Primary Product Color  Black | Natural | Red | Yellow

Contact Features

  • Contact Layout  Matrix

  • Contact Base Material  Copper Alloy

  • Contact Type  Receptacle | Tab

  • Contact Current Rating (Max) (A) 1 | 3

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Panel Mount Feature Type  Mounting Ears

  • Strain Relief  Without

  • Mating Retention  With

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging) | Panel Mount

Housing Features

  • Centerline (Pitch) (mm) 2 | 10.16

  • Centerline (Pitch) (in) .079 | .399

  • Housing Material  PA | Polyamide GF | Polybutylene Terephthalate (PBT) | Polyester GF

Dimensions

  • Connector Length (mm) 12.6 | 22.6 | 24.6 | 28.6 | 30.6 | 32.6 | 36.6 | 42.6 | 48.78

  • Connector Length (in) .49 | .88 | .96 | 1.12 | 1.2 | 1.44 | 1.67 | 1.92

  • Connector Width (mm) 11.3 | 13.9 | 21

  • Connector Width (in) .44 | .547 | .82

  • Connector Height (mm) 11.3 | 12.45 | 21

  • Connector Height (in) .44 | .49 | .826

  • Row-to-Row Spacing (mm) 2 | 3.3

  • Row-to-Row Spacing (in) .079 | .129 | .13 | .138

  • Row-to-Row Spacing (mm) 2 | 3.3

  • Row-to-Row Spacing (in) .079 | .129 | .13 | .138

  • Wire Size (AWG) 22 – 30

  • Wire Size (mm²) .05 – .35

Usage Conditions

  • Operating Temperature Range (°C) -67 – 221 | -55 – 105

  • Operating Temperature Range (°F) -67 – 221

Operation/Application

  • Halogen Free  No

  • Circuit Application  Power | Power & Signal | Signal

Industry Standards

  • Compatible With Approved Standards Products  UL E28476

  • Compatible With Agency/Standards Products  CSA | No

  • UL Flammability Rating  UL 94V-0

  • Glow Wire Rating  High Temperature Part - Not Glow Wire

Packaging Features

  • Packaging Quantity  70 | 100 | 150 | 200 | 500 | 2400

  • Packaging Method  Bag | Package

  • Packaging Method  Bag | Package
