Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

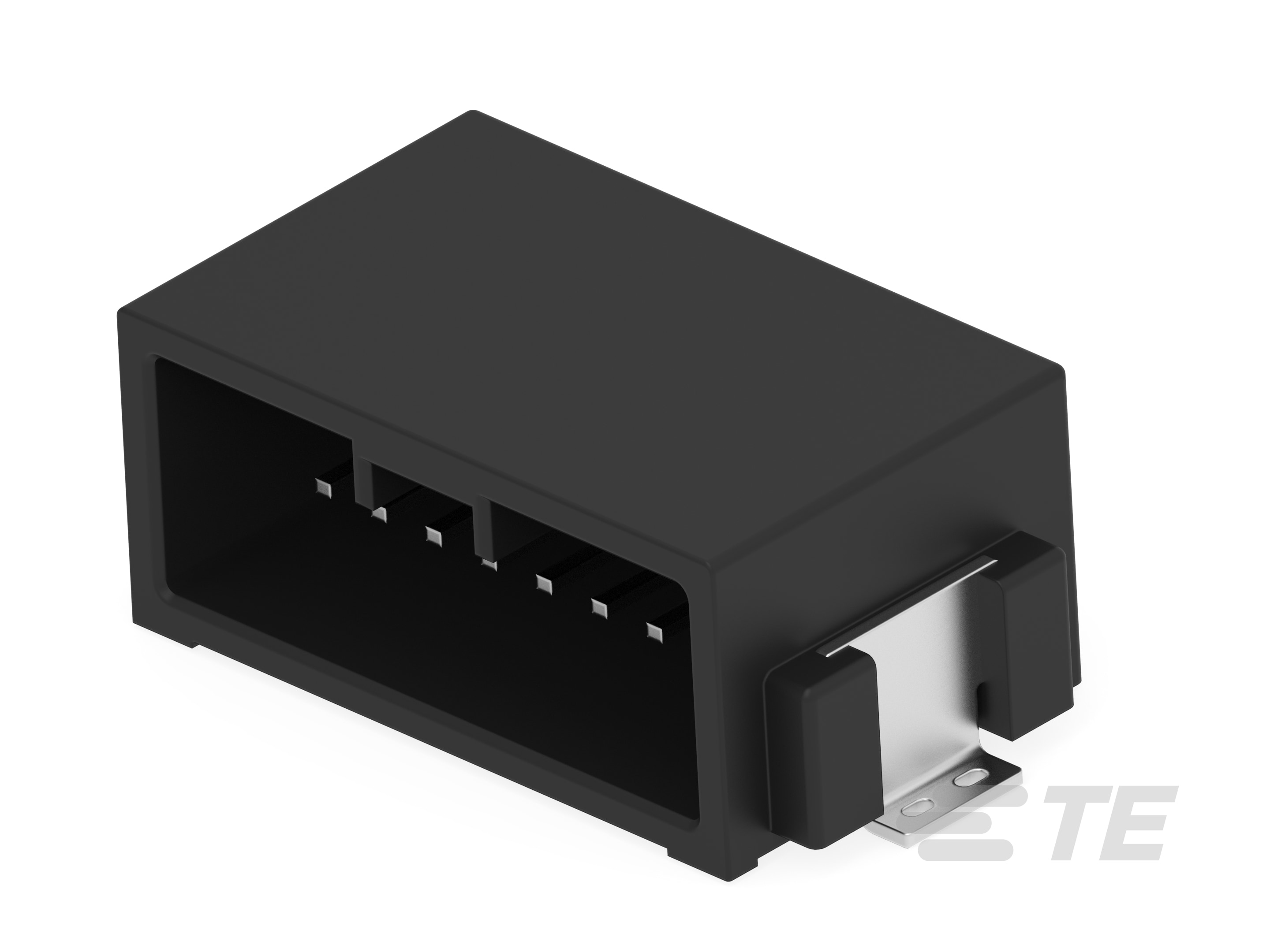

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded | Partially Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board | Wire & Cable

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Horizontal | Right Angle

  • Number of Positions  12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 44

  • Number of Rows  2

Electrical Characteristics

  • Operating Voltage (VDC) 125

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Underplating Material  Nickel

  • Contact Base Material  Copper Alloy

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Mating Area Plating Material  Tin (Sn) | Tin-Lead

  • Contact Mating Area Plating Material Finish  Matte

  • Contact Mating Area Plating Material Thickness  1 – 2.5 µm [ 40 – 100 µin ]

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 3

Termination Features

  • Termination Method to PCB  Surface Mount

Mechanical Attachment

  • PCB Mount Retention Type  Retention Leg | Slasher Peg

  • Mating Alignment Type  Keyed

  • Mating Retention Type  Side Latch

  • PCB Mount Alignment  With | Without

  • Mating Retention  With

  • PCB Mount Retention  With

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With | Without

Housing Features

  • Centerline (Pitch)  1.8 mm [ .071 in ]

  • Housing Material  6T PA GF 30 | PA 6T GF30 | PBT

Dimensions

  • Row-to-Row Spacing (mm) 2.75

Usage Conditions

  • Operating Temperature (Max)  125 °C [ 257 °F ]

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Shielded  No

  • Circuit Application  Power & Signal | Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  250 | 450

  • Packaging Method  Box | Reel & Carton | Tape | Tape & Reel

Reference Number

  • TE Internal Number CAT-D9932-M6641A
