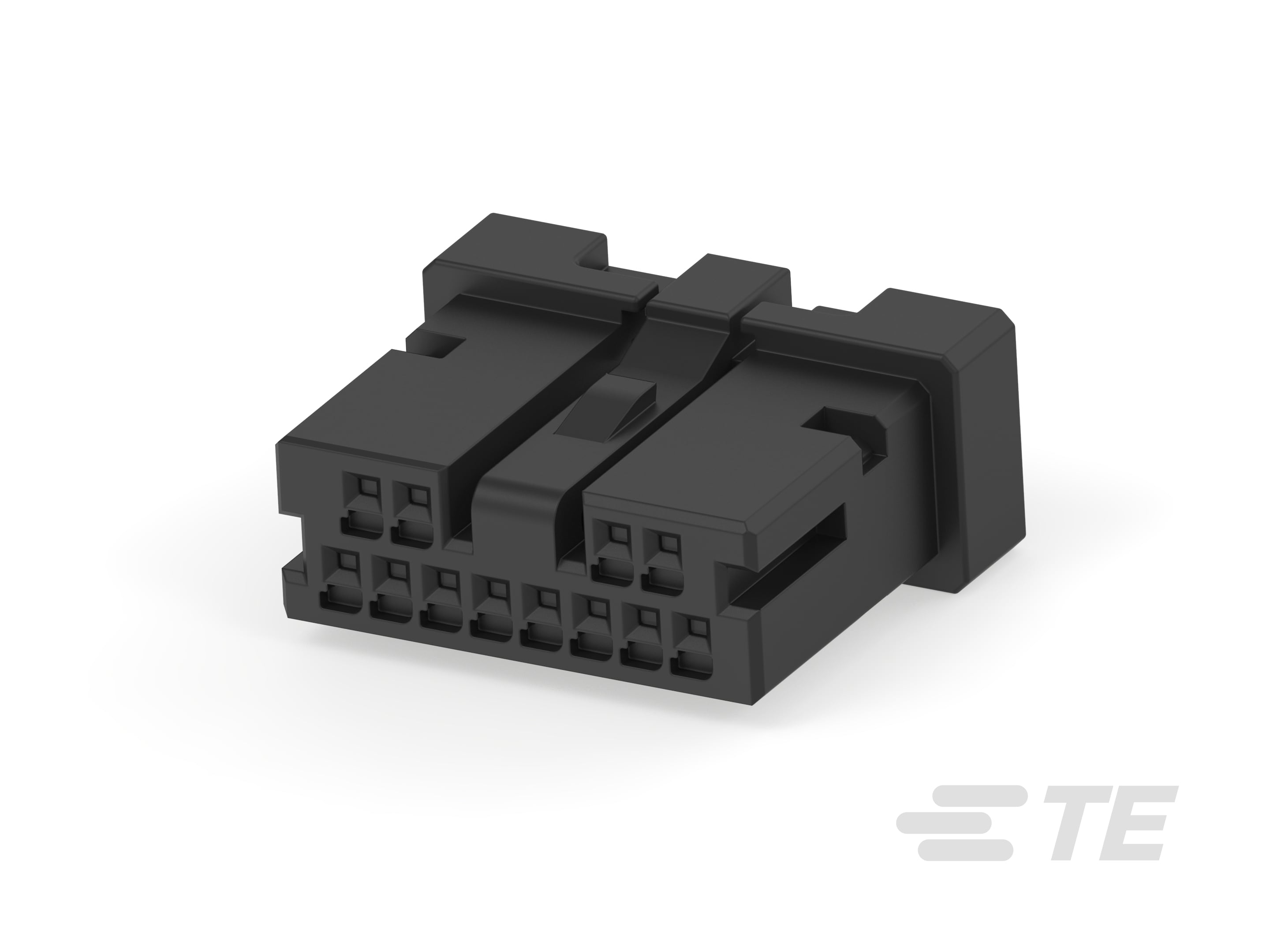

Receptacle Housing Assembly

Receptacle Housing Assembly-CAT-D9932-M6641
  • Dynamic Series
|
  • Mini Dynamic Series
DYNAMIC Mini REC HSG is designed in 1.8mm pitch with second lock concept. 12,16, and 20 positions are available in this series.
More Less

Product Features

  • Connector Product Type : Connector Assembly

  • Connector & Housing Type : Receptacle

  • Mating Retention : With, Without

  • Mating Retention Type : Locking

  • Termination Method to Wire & Cable : Crimp

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly

  • Connector & Housing Type  Receptacle

  • Connector System  Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Flexible Printed Circuit (FPC), Wire & Cable

Configuration Features

  • Number of Positions  12, 16, 20, 24, 28, 32, 36, 40, 44

  • Number of Rows  2

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Type  Receptacle

  • Contact Base Material  Copper Alloy

  • Contact Current Rating (Max) (A) 3

Termination Features

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Strain Relief  Without

  • Mating Retention  With, Without

  • Mating Retention Type  Locking

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Housing Material  PBT

  • Centerline (Pitch)  1.8 mm [ .071 in ]

Dimensions

  • Connector Length (mm) 19.3, 22.9, 30.1

  • Connector Length (in) .75, .9, 1.18

  • Connector Width  15.7 mm [ .61 in ]

  • Connector Height  8.35 mm [ .32 in ]

  • Row-to-Row Spacing  2.75 mm [ .11 in ]

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Circuit Application  Signal

Industry Standards

  • Glow Wire Rating  GWT 750°C (Without Flame) According IEC 60335-1 Edition 06/2001

Packaging Features

  • Packaging Method  Box, Carton

  • Packaging Quantity  160, 180, 220

Reference Number

  • TE Internal Number CAT-D9932-M6641
