View products below to see detailed pricing

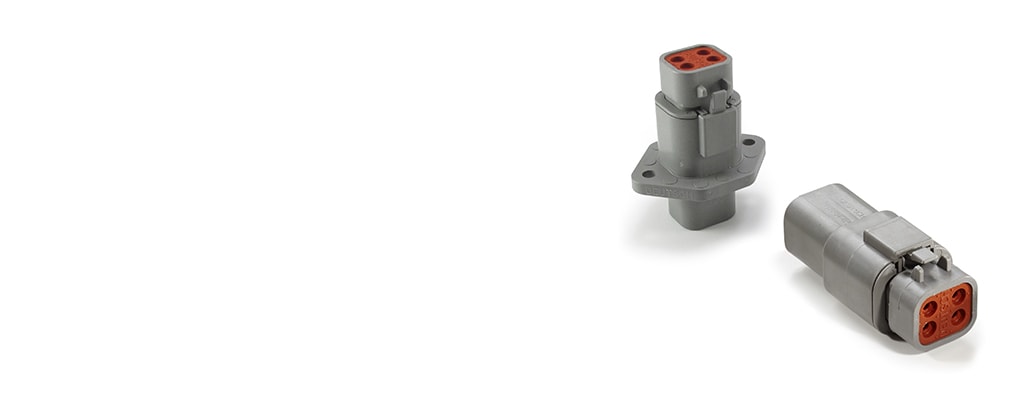

DEUTSCH DTP Housings

DEUTSCH

DEUTSCH DT
DEUTSCH DTP

DEUTSCH DTP housings are available in 2 and 4 pin counts and use size 12 DEUTSCH contacts, each with 25-amp continuous capacity. DTP housings feature an integrated latch for mating.

More Less

Product Features

Number of Positions : 2, 4
Connector & Housing Type : Housing for Female Terminals, Housing for Male Terminals
Mating Pin Diameter (mm): 2.39, 2.4
Mating Pin Diameter (in): .094
Connector System : Wire-to-Panel, Wire-to-Wire
Centerline (Pitch) (mm): 6.7, 6.71
Centerline (Pitch) (in): .264

Available from

Product	TE Part #	Documents	Connector & Housing Type	Number of Positions	Number of Rows	Connector System	Centerline (Pitch)	Mating Pin Diameter	Primary Product Color	Connector Mounting Type	Nominal Voltage Architecture
REC, 2P, BLK, E Buy on te.com	DTP04-2P-CE02	Product Drawing 3D PDF	Housing for Male Terminals	2	1	Wire-to-Wire	6.71 mm	2.4 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, GRY, 90DEG FEEDTHRU Buy on te.com	DTP04-4P-P052	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Panel, Wire-to-Wire	6.71 mm	2.39 mm	Gray	Panel Mount	12 V, 24 V, 48 V
PLG, 4P, BLK, E, CAP	DTP06-4S-CE03	Product Drawing 3D PDF	Housing for Female Terminals	4	2	Wire-to-Wire	6.7 mm	2.39 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, BLK, 180DEG FEEDTHRU Buy on te.com	DTP04-4P-P018	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Panel, Wire-to-Wire	6.71 mm	2.39 mm	Black	Panel Mount	12 V, 24 V, 48 V
PLG, 2P, BLK, N Buy on te.com	DTP06-2S-E004	Product Drawing 3D PDF	Housing for Female Terminals	2	1	Wire-to-Wire	6.7 mm	2.39 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 4P, GRY, N, CAP Buy on te.com	DTP06-4S-E003	Product Drawing 3D PDF	Housing for Female Terminals	4	2	Wire-to-Wire	6.7 mm	2.39 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, GRN, 90DEG FEEDTHRU	DTP04-4P-P059	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Panel, Wire-to-Wire	6.71 mm	2.39 mm	Green	Panel Mount	12 V, 24 V, 48 V
REC, 2P, GRY, E Buy on te.com	DTP04-2P-C015	Product Drawing 3D PDF	Housing for Male Terminals	2	1	Wire-to-Wire	6.71 mm	2.4 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, BLK, E, CAP	DTP04-4P-CE03	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Wire	6.7 mm	2.4 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 2P, BLK, E, XCAP Buy on te.com	DTP06-2S-CE09	Product Drawing 3D PDF	Housing for Female Terminals	2	1	Wire-to-Wire	6.7 mm	2.39 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 2P, GRY, E, CAP	DTP04-2P-CE01	Product Drawing 3D PDF	Housing for Male Terminals	2	1	Wire-to-Wire	6.71 mm	2.4 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, GRY, N, CAP, FLANGE Buy on te.com	DTP04-4P-LE07	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Wire	6.7 mm	2.4 mm	Gray	Panel Mount	12 V, 24 V
PLG, 2P, GRY, E, CAP	DTP06-2S-CE01	Product Drawing 3D PDF	Housing for Female Terminals	2	1	Wire-to-Wire	6.7 mm	2.39 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 4P, GRY, N Buy on te.com	DTP06-4S	Product Drawing 3D PDF	Housing for Female Terminals	4	2	Wire-to-Wire	6.7 mm	2.39 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, GRY, E Buy on te.com	DTP04-4P-C015	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Wire	6.7 mm	2.4 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, GRY, N, FLANGE	DTP04-4P-L012	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Wire	6.7 mm	2.4 mm	Gray	Panel Mount	12 V, 24 V
PLG, 2P, GRY, N Buy on te.com	DTP06-2S	Product Drawing 3D PDF	Housing for Female Terminals	2	1	Wire-to-Wire	6.7 mm	2.39 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 4P, BLK, N, XCAP	DTP06-4S-EE01	Product Drawing 3D PDF	Housing for Female Terminals	4	2	Wire-to-Wire	6.7 mm	2.39 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 2P, GRY, E Buy on te.com	DTP06-2S-C015	Product Drawing 3D PDF	Housing for Female Terminals	2	1	Wire-to-Wire	6.7 mm	2.39 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 2P, GRY, BLOCKED	DTP06-2S-C017	Product Drawing 3D PDF	Housing for Female Terminals	2	1	Wire-to-Wire	6.7 mm	2.39 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 2P, BLK, N, XCAP Buy on te.com	DTP06-2S-EE01	Product Drawing 3D PDF	Housing for Female Terminals	2	1	Wire-to-Wire	6.7 mm	2.39 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 2P, BLK, E, XCAP	DTP04-2P-CE09	Product Drawing 3D PDF	Housing for Male Terminals	2	1	Wire-to-Wire	6.71 mm	2.4 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, GRY, E, CAP Buy on te.com	DTP04-4P-CE01	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Wire	6.7 mm	2.4 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, GRY, N, CAP Buy on te.com	DTP04-4P-E003	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Wire	6.7 mm	2.4 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 2P, BLK, N Buy on te.com	DTP04-2P-E004	Product Drawing 3D PDF	Housing for Male Terminals	2	1	Wire-to-Wire	6.71 mm	2.4 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 4P, GRY, E Buy on te.com	DTP06-4S-C015	Product Drawing 3D PDF	Housing for Female Terminals	4	2	Wire-to-Wire	6.7 mm	2.39 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 4P, BLK, N	DTP06-4S-E004	Product Drawing 3D PDF	Housing for Female Terminals	4	2	Wire-to-Wire	6.7 mm	2.39 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 2P, GRY, N, CAP Buy on te.com	DTP06-2S-E003	Product Drawing 3D PDF	Housing for Female Terminals	2	1	Wire-to-Wire	6.7 mm	2.39 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 2P, BLK, N, XCAP Buy on te.com	DTP04-2P-EE01	Product Drawing 3D PDF	Housing for Male Terminals	2	1	Wire-to-Wire	6.71 mm	2.4 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 2P, GRY, N Buy on te.com	DTP04-2P	Product Drawing 3D PDF	Housing for Male Terminals	2	1	Wire-to-Wire	6.71 mm	2.4 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 2P, GRY, N, CAP Buy on te.com	DTP04-2P-E003	Product Drawing 3D PDF	Housing for Male Terminals	2	1	Wire-to-Wire	6.71 mm	2.4 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, GRY, N Buy on te.com	DTP04-4P	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Wire	6.7 mm	2.4 mm	Gray	Cable Mount (Free-Hanging)	12 V, 24 V
REC, 4P, BLK, N Buy on te.com	DTP04-4P-E004	Product Drawing 3D PDF	Housing for Male Terminals	4	2	Wire-to-Wire	6.7 mm	2.4 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V
PLG, 4P, BLK, E Buy on te.com	DTP06-4S-CE02	Product Drawing 3D PDF	Housing for Female Terminals	4	2	Wire-to-Wire	6.7 mm	2.39 mm	Black	Cable Mount (Free-Hanging)	12 V, 24 V

Overview

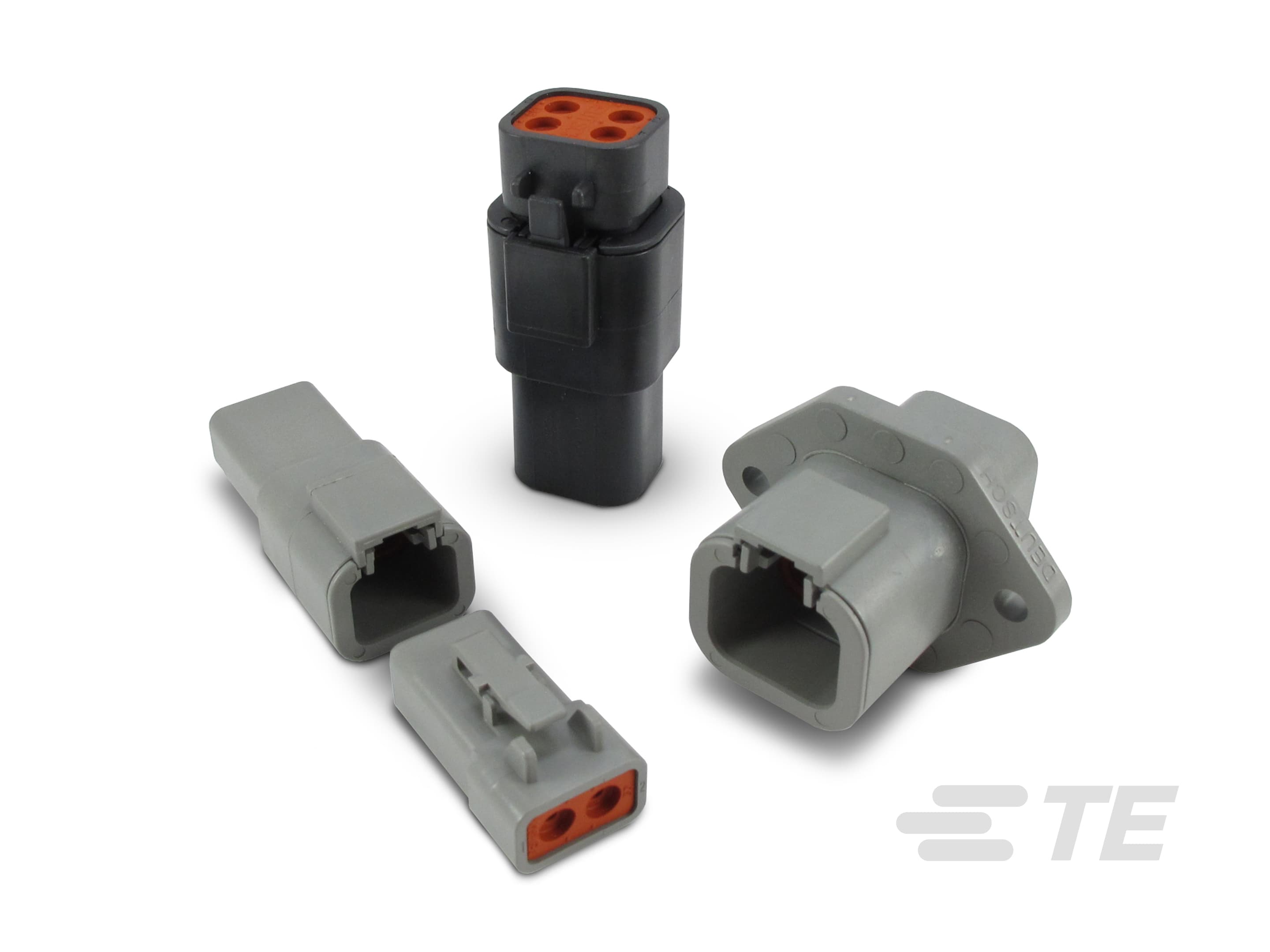

DEUTSCH DTP housings provide solutions for power applications.

Series Overview

Accepts contact size 12 (25 amps)
10-14 AWG (6.00-2.00 mm2)
2 and 4 cavity arrangements
In-line, flange, or PCB mount
Rectangular, thermoplastic housing
Integrated latch for mating
Wedgelocks confirm contact alignment and retention
Available accessories: boots, gaskets, mounting clips

Additional DEUTSCH DTP products

VIEW ALL DEUTSCH DTP PRODUCTS
DEUTSCH DTP connectors provide solutions for higher power harsh environment application requirements.

FAQ

Frequently Asked Questions

Q: What is a DTP connector?

A: DEUTSCH DTP environmentally sealed connectors are designed for cable to cable and cable to board applications. DTP connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for DTP connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Mixed & Hybrid Connector No
Connector Shape Rectangular
Connector & Housing Type Housing for Female Terminals, Housing for Male Terminals
Connector System Wire-to-Panel, Wire-to-Wire
Sealable Yes
Primary Locking Feature Integrated in Housing
Connector & Contact Terminates To Wire & Cable

Configuration Features

Blank Cavity Position 0, 1, 2
Connector Seal Code E Seal, N Seal
Connector Modification End Cap, Shrink Boot Adapter, Welded Flange, Welded Flange, End Cap
Number of Positions 2, 4
Number of Rows 1, 2

Electrical Characteristics

Operating Voltage (VDC) 200
Operating Voltage (VAC) 200
Nominal Voltage Architecture (V) 12, 24, 48

Body Features

Cable Exit Angle 180°, 90°
Primary Product Color Black, Gray, Green

Contact Features

Contact Type Pin, Socket
Contact Size Size 12
Mating Pin Diameter (mm) 2.39, 2.4
Mating Pin Diameter (in) .094
Contact Current Rating (Max) (A) 25

Mechanical Attachment

Mating Alignment With
Terminal Position Assurance No, Yes
Mating Alignment Type Polarization
Strain Relief Add By Accessory, Without
Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount

Housing Features

Housing Material PA 66 GF15, PA GF
Centerline (Pitch) (mm) 6.7, 6.71
Centerline (Pitch) (in) .264

Dimensions

Compatible Insulation Diameter Range (mm) 2.46 – 4.01, 2.5 – 4, 3.4 – 4.32, 3.4 – 4.3, 3.4 – 4.9
Compatible Insulation Diameter Range (in) .097 – .158, .098 – .157, .134 – 1.95, .134 – .169, .134 – .17, .134 – .195
Product Width (mm) 18.4, 18.6, 21.5, 22, 22.1, 25.4, 26.9, 41, 42.24, 53.3
Product Width (in) .724, .732, .846, .866, .87, 1, 1.06, 1.614, 1.663, 2.1
Connector Height (mm) 28.5, 34.6, 36.4, 47.17, 47.3, 47.4, 49, 60
Connector Height (in) 1.122, 1.36, 1.43, 1.857, 1.86, 1.87, 1.93, 2.36
Row-to-Row Spacing (mm) 10.16, 10.2
Row-to-Row Spacing (in) .4
Product Length (mm) 18.6, 22, 22.1, 22.4, 24.4, 26.1, 26.6, 27.1, 38.1, 38.58, 59.77
Product Length (in) .732, .866, .87, .881, .96, 1.03, 1.05, 1.07, 1.5, 1.519, 2.353

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Circuit Application Power

Industry Standards

UL Flammability Rating 20mm Flame Test per Standard UL-94, UL 94V-0
IP Rating IP68, IP6K9K
Compatible With Agency/Standards Products SAE J2030

Packaging Features

Packaging Method Box, Bulk, Package
Packaging Quantity 1, 100, 250

Other

Serviceable No, Yes
Connector Position Assurance Capable No

Reference Number

TE Internal Number CAT-D486-CH8172

Related Materials
