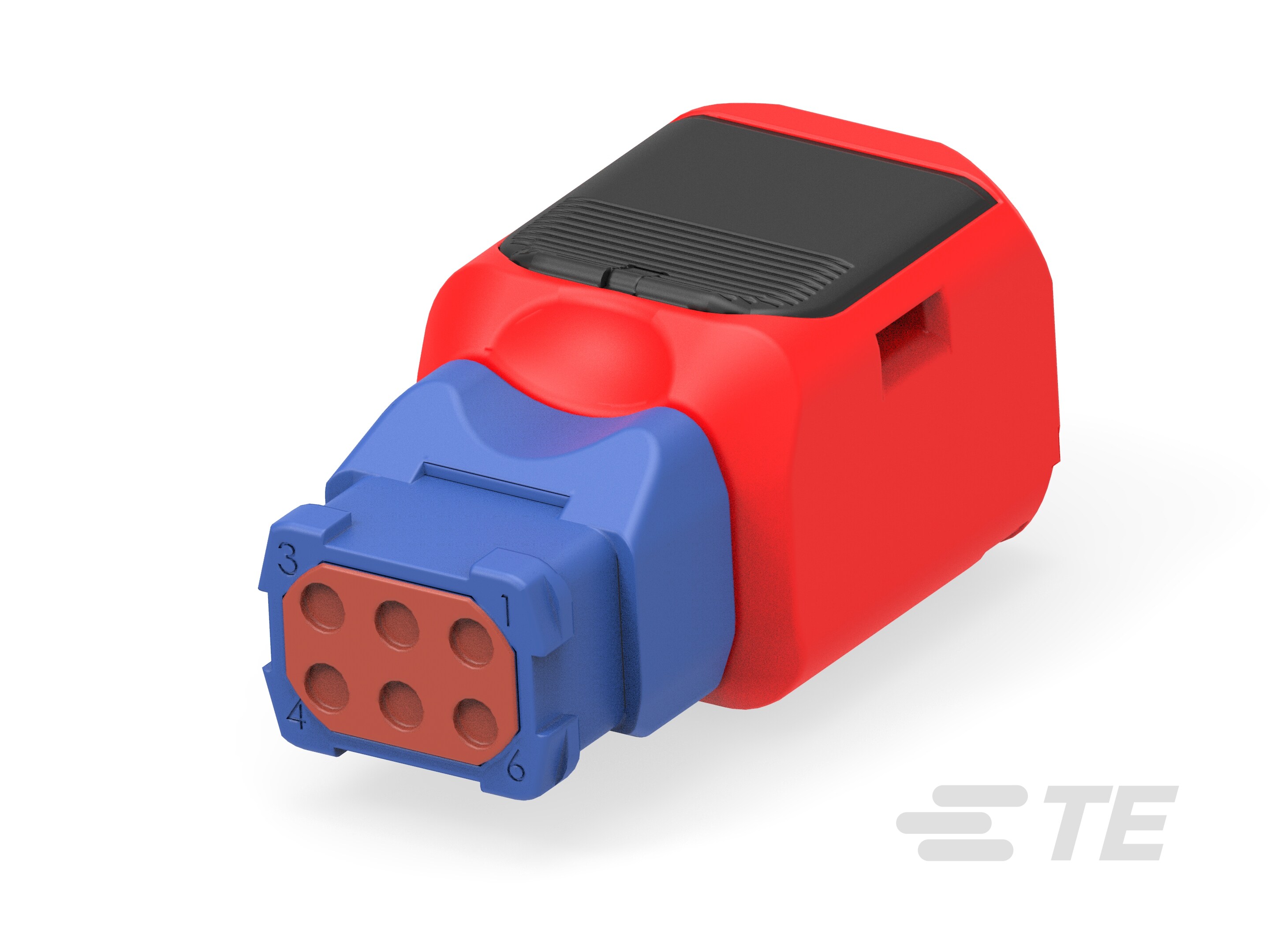

Rectangular Connectors: Harsh 6-Way Plug

Please review product documents or contact us for the latest agency approval information.

• Connector Shell Size  06

• Connector Seal & Plug Type  Triple-Seal

• Connector Product Type  Connector Assembly

• Connector & Housing Type  Plug

• Connector System  Wire-to-Wire

• Insertion Force Type  Normal

• Sealable  Yes

• Connector & Contact Terminates To  Wire & Cable

• Contacts Preloaded  Yes

• Number of Columns  3

• Number of Cavities  6

• Number of Positions  6

• Number of Rows  2

• Number of Power Positions  6

• Number of Signal Positions  6

• Operating Voltage (VAC) 400

• Operating Voltage (VDC) 500

• Primary Product Color  Black | Blue | Green | Red | Yellow

• Connector Seal Color  Natural

• Seal Material  Fluorosilicone

• Connector & Keying Code  A | B | C | D | N

• Seal Type  Grommet Seal | Interfacial Seal

• Cable Exit Angle  180°

• Contact Size  Size 22

• Contact Mating Area Plating Material  Gold (Au)

• Contact Retention Within Housing  With

• Contact Current Rating (Max) (A) 5

• Contact Type  Pin | Socket

• Wire Contact Termination Area Plating Material  Gold

• Termination Method to Wire & Cable  Crimp

• Mating Alignment  With

• Mating Alignment Type  Keyed

• Mating Retention  With

• Mating Retention Type  Button Latch

• Shell Material  Composite

• Centerline (Pitch)  2.54 mm [ .1 in ]

• Housing Material  Composite

• Compatible Insulation Diameter Range  .71 – 1.37 mm [ .028 – .054 in ]

• Row-to-Row Spacing  2.54 mm [ .1 in ]

• Operating Temperature Range  -55 – 175 °C [ -67 – 347 °F ]

• Shielded  No

• Circuit Application  Power & Signal
