Product Type Features
-
Voltage Application Type
AC (Current Transformers)
-

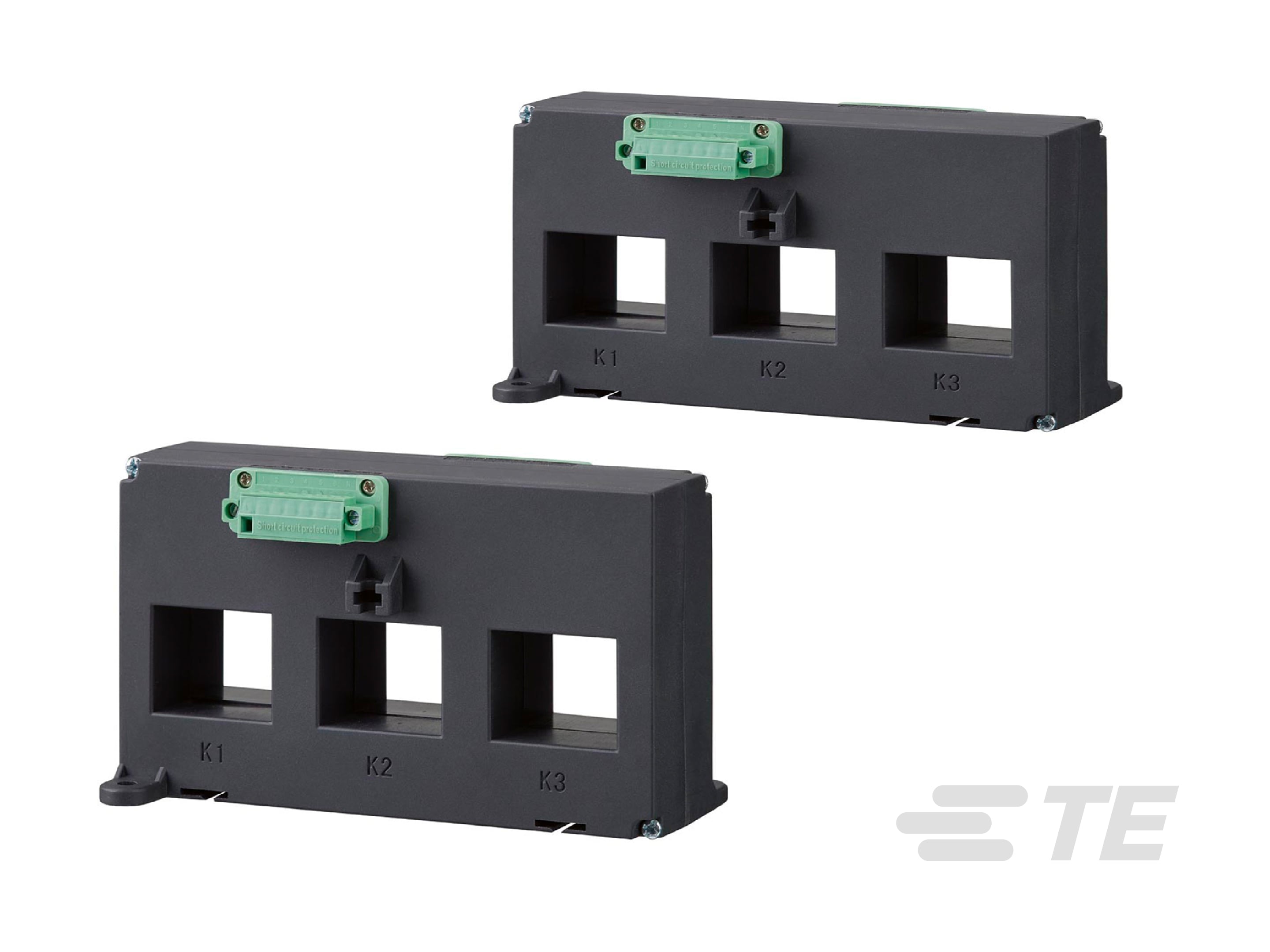

Current Transformer Type
3-in-1
Configuration Features
-
Wiring Configuration
Three Phase
Electrical Characteristics
-
Output Current (A)
5
-
Class 3 Burden Rating (VA)
2 | 2.5
-
Class 1 Burden Rating (VA)
1 | 1.5 | 2.5 | 5
-
Class .5 Burden Rating (VA)
1.5 | 2.5
Body Features
-
Product Weight (kg)
.4
-
Product Weight (lb)
.992 | 1.1 | 1.43 | 1.58 | 1.65 | 1.94 | 1.98 | 2.02
Dimensions
-
CT Ratio
100/5 | 125/5 | 160/5 | 250/5 | 400/5 | 60/5 | 630/5 | 800/5
-
Aperture Width (mm)
15 | 21 | 32 | 52
-
Aperture Width (in)
1.26 | 2.047 | 4.104 | 4.105 | 4.106 | 4.143 | 4.144 | 4.145 | 4.146
-
Aperture Height (mm)
25 | 27 | 40
-
Aperture Height (in)
.984 | 1.063 | 1.575
-
Product Height (mm)
68.5 | 86 | 100
-
Product Height (in)
2.697 | 3.386 | 3.937
-
Product Depth (mm)
38 | 39 | 60
-
Product Depth (in)
1.496 | 1.535 | 2.362
-
Product Width (mm)
76 | 105 | 142 | 212
-
Product Width (in)
2.992 | 4.134 | 5.591 | 8.346
Industry Standards
-
Compatible With Agency/Standards Products
UL
