CI-MSC

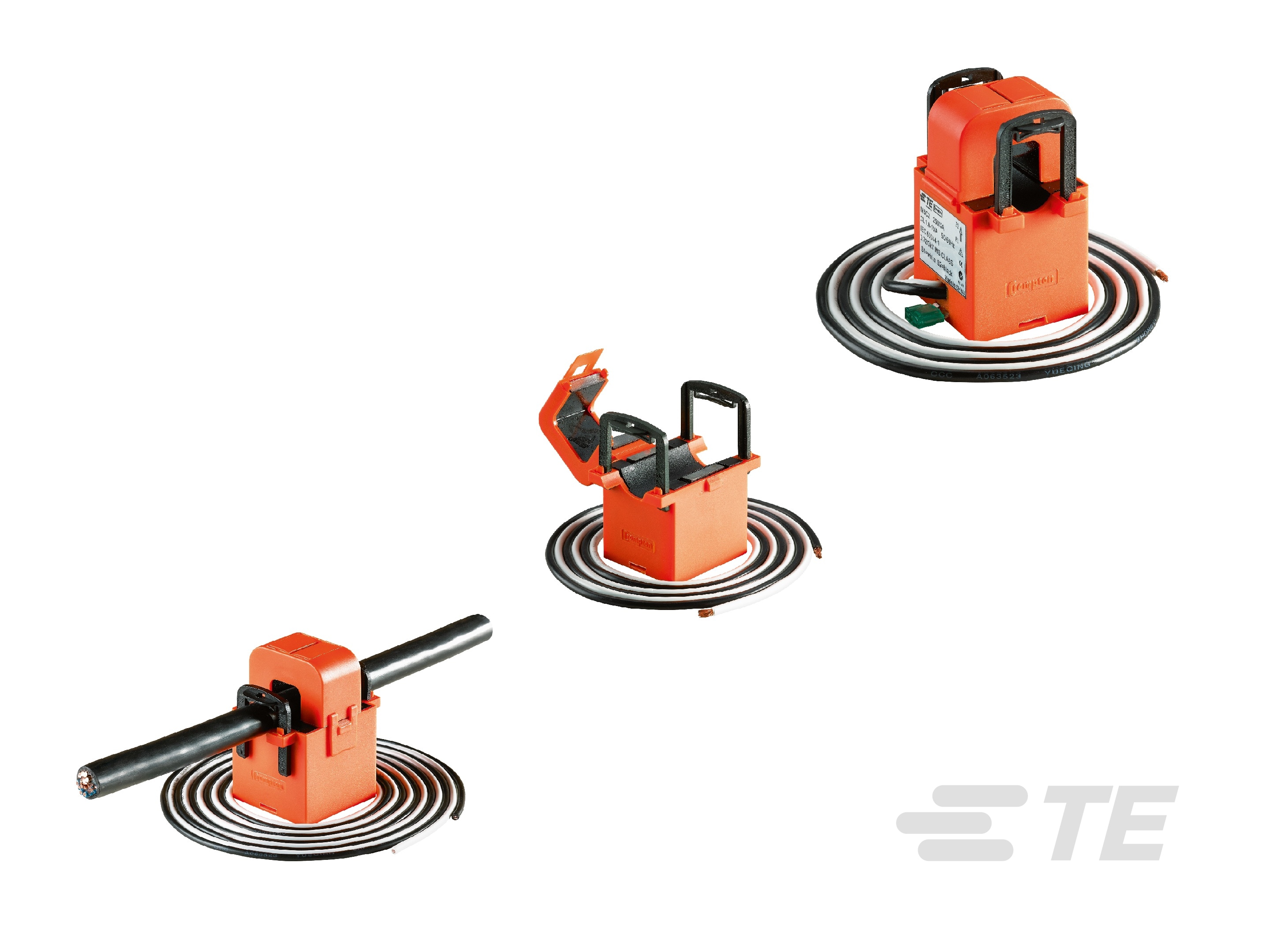

CI-MSC-CAT-CT-MSC

CROMPTON INSTRUMENTS

|

Crompton Current Transformers

Datasheet |

Connect with Us

Product Features

Voltage Application Type : AC (Current Transformers)
Current Transformer Type : Minature Split Core
Wiring Configuration : Single Phase
Output Current (A): 1 | 5
CT Ratio : 100/1 | 100/5 | 150/1 | 150/5 | 200/1 | 200/5 | 250/1 | 250/5 | 300/1 | 300/5 | 400/1 | 400/5 | 500/1 | 500/5 | 60/1 | 75/1 | 80/1

Available from

Product	TE Part #	Documents	Output Current	CT Ratio	Class 3 Burden Rating	Class 1 Burden Rating	Aperture Diameter	Product Height	Product Depth	Product Width	Product Weight	EU ELV Compliance
CI-MSC2-200/5	EF0770-000	Product Drawing	5 A	200/5	-	1 VA	18 mm	72.7 mm	61.5 mm	44.5 mm	.072 kg	-
CI-MSC1-100/1	EF0761-000	Product Drawing	1 A	100/1	-	-	.2 VA	18 mm	57.3 mm	53 mm	31 mm	.053 kg	-
CI-MSC3-300/1	EF0773-000	Product Drawing	1 A	300/1	-	-	1.5 VA	28 mm	71.7 mm	62.2 mm	44.5 mm	.072 kg	-
CI-MSC3-400/1	EF0775-000	Product Drawing	1 A	400/1	-	-	2.5 VA	28 mm	71.7 mm	62.2 mm	44.5 mm	.072 kg	-
CI-MSC2-150/1	EF0767-000	Product Drawing	1 A	150/1	-	-	1 VA	18 mm	72.7 mm	61.5 mm	44.5 mm	.072 kg	-
CI-MSC2-250/5	EF0772-000	Product Drawing	5 A	250/5	-	-	1 VA	18 mm	72.7 mm	61.5 mm	44.5 mm	.072 kg	-
CI-MSC3-300/5	EF0774-000	Product Drawing	5 A	300/5	-	-	1.5 VA	28 mm	71.7 mm	62.2 mm	44.5 mm	.072 kg	-
CI-MSC3-500/1	EF0777-000	Product Drawing	1 A	500/1	-	-	2.5 VA	28 mm	71.7 mm	62.2 mm	44.5 mm	.072 kg	-
CI-MSC2-200/1	EF0769-000	Product Drawing	1 A	200/1	-	-	1 VA	18 mm	72.7 mm	61.5 mm	44.5 mm	.072 kg	-
CI-MSC3-400/5	EF0776-000	Product Drawing	5 A	400/5	-	-	2.5 VA	28 mm	71.7 mm	62.2 mm	44.5 mm	.072 kg	-
CI-MSC3-500/5	EF0778-000	Product Drawing	5 A	500/5	-	-	2.5 VA	28 mm	71.7 mm	62.2 mm	44.5 mm	.072 kg	-
CI-MSC2-100/1	EF0765-000	Product Drawing	1 A	100/1	-	-	1 VA	18 mm	72.7 mm	61.5 mm	44.5 mm	.072 kg	-
CI-MSC1-60/1	EF0762-000	Product Drawing	1 A	60/1	.1 VA	-	-	18 mm	57.3 mm	53 mm	31 mm	.053 kg	-
CI-MSC2-250/1	EF0771-000	Product Drawing	1 A	250/1	-	-	1 VA	18 mm	72.7 mm	61.5 mm	44.5 mm	.072 kg	-
CI-MSC2-150/5	EF0768-000	Product Drawing	5 A	150/5	-	-	1 VA	18 mm	72.7 mm	61.5 mm	44.5 mm	.072 kg	-
CI-MSC1-75/1	EF0763-000	Product Drawing	1 A	75/1	.1 VA	-	-	18 mm	57.3 mm	53 mm	31 mm	.053 kg	-
CI-MSC1-80/1	EF0764-000	Product Drawing	1 A	80/1	.15 VA	-	-	18 mm	57.3 mm	53 mm	31 mm	.053 kg	-
CI-MSC2-100/5	EF0766-000	Product Drawing	5 A	100/5	-	-	1 VA	18 mm	72.7 mm	61.5 mm	44.5 mm	.072 kg	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Voltage Application Type AC (Current Transformers)
Current Transformer Type Minature Split Core

Configuration Features

Wiring Configuration Single Phase

Electrical Characteristics

Output Current (A) 1 | 5
Class 3 Burden Rating (VA) .1 | .15
Class 1 Burden Rating (VA) .2 | 1 | 1.5 | 2.5

Body Features

Product Weight (kg) .053 | .072
Product Weight (lb) .551 | .573 | .595 | .617 | .705 | .727 | .749 | .771 | .859 | .903 | .925 | .947 | 1.01 | 1.05

Dimensions

CT Ratio 100/1 | 100/5 | 150/1 | 150/5 | 200/1 | 200/5 | 250/1 | 250/5 | 300/1 | 300/5 | 400/1 | 400/5 | 500/1 | 500/5 | 60/1 | 75/1 | 80/1
Aperture Diameter (mm) 18 | 28
Aperture Diameter (in) .708 | 1.102
Product Height (mm) 57.3 | 71.7 | 72.7
Product Height (in) 2.255 | 2.822 | 2.862
Product Depth (mm) 53 | 61.5 | 62.2
Product Depth (in) 2.086 | 2.421 | 2.448
Product Width (mm) 31 | 44.5
Product Width (in) 1.22 | 1.751

Industry Standards

Compatible With Agency/Standards Products UL
