Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Voltage Application Type
AC (Current Transformers)
-

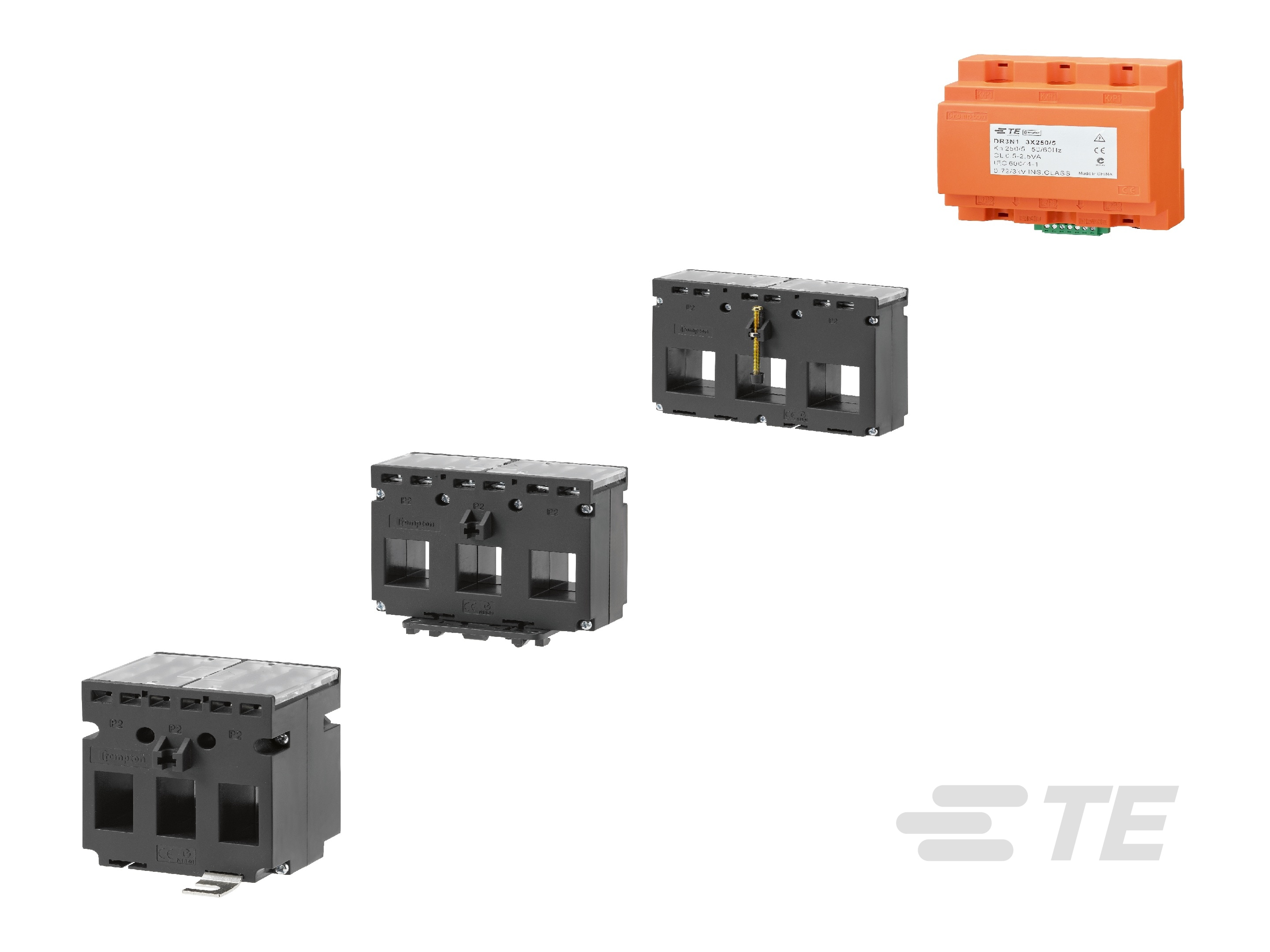

Current Transformer Type
3-in-1
Configuration Features
-
Wiring Configuration
Three Phase
Electrical Characteristics
-
Output Current (A)
5
-
Class 3 Burden Rating (VA)
2 | 2.5 | 3.75
-
Class 1 Burden Rating (VA)
1 | 1.5 | 2.5
-
Class .5 Burden Rating (VA)
1.5 | 2.5
Body Features
-
Product Weight (kg)
.575 | .725
-
Product Weight (lb)
1.27 | 1.6
Dimensions
-
CT Ratio
100/5 | 125/5 | 150/5 | 160/5 | 200/5 | 250/5 | 300/5 | 500/5 | 60/5 | 600/5 | 630/5
-
Aperture Width (mm)
14.5 | 20.5 | 30.5
-
Aperture Width (in)
.57 | .807 | 1.2
-
Aperture Height (mm)
24.5 | 30.5
-
Aperture Height (in)
.964 | 1.2
-
Product Height (mm)
80 | 95
-
Product Height (in)
3.149 | 3.74
-
Product Depth (mm)
38 | 60
-
Product Depth (in)
1.496 | 2.362
-
Product Width (mm)
76.5 | 141
-
Product Width (in)
3.011 | 4.133 | 5.551
Industry Standards
-
Compatible With Agency/Standards Products
UL
