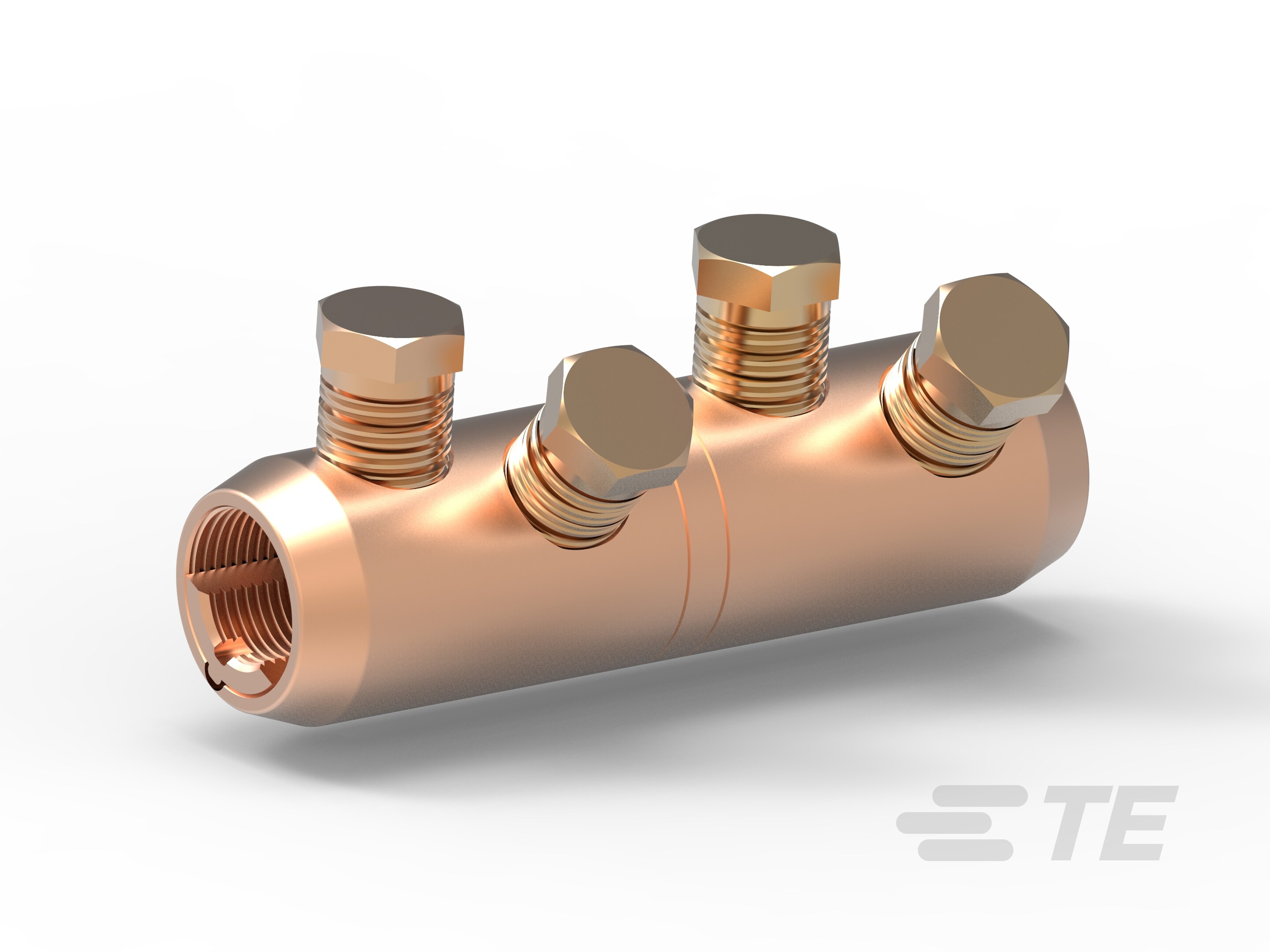

Copper Shear Bolt Splices up to 35 kV

Copper Shear Bolt Splices up to 35 kV-CAT-CSBS
Our CSBS Copper Shear Bolt Splices are range taking, shear bolt connectors for copper cables from #2 AWG compact stranded to 1000 kcmil concentric stranded. Their primary application is underground network connections up to 35 kV.
More Less

Product Features

  • Mechanical Connector Product Availability: AMERICAS, ANZPAC, ASIA, China, EMEA

  • Mechanical Connector Technology: Shear Bolt

  • Mechanical Connector Voltage Class(kV): ≤ 35

  • Mechanical Connector Conductor Material: Copper

  • Mechanical Connector CSA Certified: No

Available from

LADD Inc

Overview

Our CSBS Copper Shear Bolt Splices are range taking, shear bolt connectors for underground splices up to 35 kV. The tool required to install the copper mechanical connectors is a standard ratchet wrench with a hexagonal socket. The design incorporates shear head bolts, which ensures that the correct torque is applied to each bolt ensuring a high electrical contact between the conductor and the connector. Also, this method of installation reduces worker strain compared to a manual compression tool requiring significant force to operate.

A holding tool is recommended to avoid the core bending of conductors and can be ordered from TE (#IT-1000-019). TE’s cordless impact wrench (#T25446-000) can also be used to install the connector. This convenient and quick tool has been tested and qualified to install shear bolt connectors.

The Copper Shear Bolt Splice is supplied with two copper inserts assembled into the connector body to center small conductor sizes. For larger sizes, inserts are not required and are easily removed with a standard screwdriver.

bar

Key Features

  • Heavy-duty design made of high strength, copper alloy
  • Compact and smooth body design
  • Provides long service life under normal operating conditions with reserve capacity for emergency loading conditions
  • Compatible with Raychem heat-shrink and cold applied splices providing an engineered system with years of trouble-free performance
bar

Copper Shear Bolt Splices

Improving Grid Connectivity

bar

Our Range of Mechanical Connectors

Grid Connectivity and Reliability Webinar Series

Grid Connectivity and Reliability Webinar Series

Join our technical experts as they address solutions to your power network challenges during our series of webinars.

Energy Distributors

Access our Authorized Distributors for the Energy market by country.

FAQ

Frequently Asked Questions

Question: How will I know if TE's CSBS Copper Shear Bolt Splice is properly installed?

Answer: Our Copper Shear Bolt Splices has been designed with integrated shear head bolts. They are pre-engineered to shear at the appropriate torque level, ensuring correct torque is applied to each bolt and consequently, the optimal contact force is generated to minimize resistance.



Question: What is the primary application of the Copper Shear Bolt Splices?

Answer: The primary application of our Copper Shear Bolt Splice is to connect underground cable splices at voltages up to 35 kV.



Question: Can Copper Shear Bolt Splices be used with TE's Raychem cable accessories?

Answer: Our Copper Shear Bolt Splices are compatible with Raychem heat shrink and cold applied splices and termination kits for underground applications up to 35 kV.



Question: Is a torque wrench required to install the Copper Shear Bolt Splices?

Answer: Our Copper Shear Bolt Splices do not require the use of a torque wrench, they can be installed with an impact wrench or a standard ratchet.



Question: Which range of conductors can accommodate the Copper Shear Bolt Splices?

Answer: Our Copper Shear Bolt Splices are mechanical connectors that can accommodate a wide range of copper cable from #2 AWG compact stranded to 1000 kcmil concentric stranded.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Mechanical Connector Technology  Shear Bolt

Configuration Features

  • Visual Inspection  Yes

Electrical Characteristics

  • Mechanical Connector Voltage Class (kV) ≤ 35

Body Features

  • Mechanical Connector Conductor Material  Copper

Dimensions

  • Conductor Range (AWG/kcmil) 2 (Compact) – 250 (Concentric), 2/0 (Compact) – 250 compressed, 2/0 (Compact) – 500 (Compact), 300 (Compact) - 750 (Compact), 300 (Compact) - 750 (Concentric), 500 (Compact) – 1000 (Concentric)

Operation/Application

  • Application Type  Underground Splicing

  • Free of Lead, Cadmium, Heavy Metals  Yes

  • Energized Installation  No

Industry Standards

  • Mechanical Connector CSA Certified  No

  • Mechanical Connector UL Listed  No

Product Availability

  • Mechanical Connector Product Availability  AMERICAS, ANZPAC, ASIA, China, EMEA

Reference Number

  • TE Internal Number CAT-CSBS
