Overview
MULTIGIG Fiber Optic Transceiver (TRX) PLATFORM – CBOT

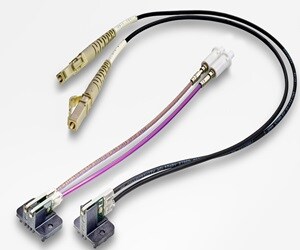

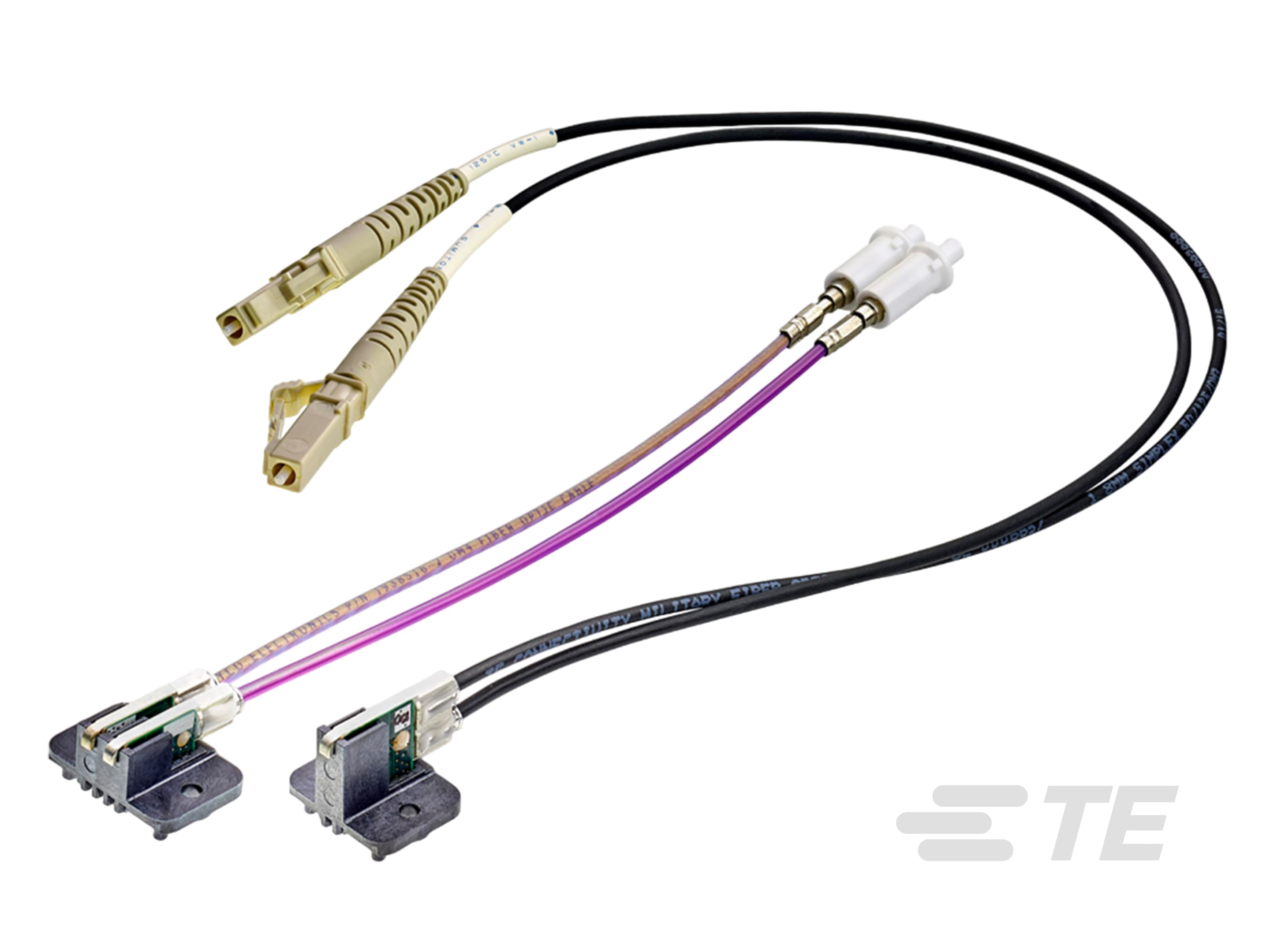

TE Connectivity’s (TE) MULTIGIG TRX fiber optic mid-board transceiver is a modular platform of up to 12 Chiclet-based Optical Transceivers (CBOT) transceivers capable of transmitting and receiving up to 10 Gbps each. The electrical interface is provided through TE’s MULTIGIG RT2 press fit pin PCB interface. Each duplex pigtailed transceiver
occupies one position in the press fit housing and can be individually removed for replacement in case of damaged cables, without having to remove and replace the entire module. Alternatively customers can install larger housings and populate empty positions for future expansions or upgrades.
A wide range of TE optical termini are available for the OM3 & OM4 based fiber pigtails.
Individual duplex blades can be a range of functional combinations, Dual Tx, Dual Rx, TRx, and, on the simplex option, a Tx or Rx. These can be combined in varying counts in an individual full height and half height housing, respectively. Single mode versions are planned in the future.
The high-speed inputs are DC-coupled to a floating input termination. The laser driver converts the signal to the VCSEL (Vertical-Cavity Surface-Emitting Laser) drive current. The very efficient optical coupling offered by the LEP technology enhances the low power consumption of each transceiver blade. On the Rx side, the incoming optical signal is converted to a current by the PIN diode. The transimpedance amplifier converts the current to a voltage which is then limited by an amplifier. The output stage is current-mode-logic (CML) and provides 50 ohm back-terminations
Features and Benefits
MULTIGIG TRX - Mid-Board Optical Transceiver
Easy to Use
- Dual Tx, Dual Rx, and TRx blade options for full height, duplex pigtail
- Tx and RX options for half height simplex pigtail.
- Leverages TE MULTIGIG RT high-speed press fit PCB attachment IEEE 10GBase-SR compliant for 10G variants
- Supports a wide variety of rugged industry standard fiber optic termini and cables
- Operating temperature range from -40°C to +85°C
Versatile
- Low speed 4.25G 4xFC compatible variant
- IEEE 10GBase-SR compliant for 10G variants
- Up to 12 positions; duplex or single fiber pigtail
High Performance
- Wavelength of operation at 850 nm (VCSEL and PIN PD)
- Low power dissipation, less than 130 mW per transceiver at 10.3125
Applications
MULTIGIG TRX - Mid-Board Optical Transceiver
- High-speed interconnects within and between switches, routers and transport equipment
- Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
- Ethernet, ARINC 818 and InfiniBand applications.
- IFE servers and end points
Ordering Information
Specify your need using the guidance and parameters below. Then please reach out to your TE representative to finalize your need and part number. You can also add your choice of connectivity to your requirement, i.e. EN4165, D38999 and TE will offer a complete solution. Customized marking, performance or fiber routing is available upon request.
| Parameters | Options |
Comments |
|---|---|---|
| Data rate | 4.25 Gbps |
I.e. ARINC 818 video; |
| 10.3125 Gbps | I.e. 4k video | |
| Size | Full height |
2 channels / CBOT |
| Half height | 1 channel / CBOT | |
| Configuration | Tx and Rx | Free to mix Tx and Rx to suit your needs |
| Fiber | Free choice | Typically, 1.8 mm or 900 um |
| Termini | Free choice | Typically, ARINC 801, ST or MT |
| Housing | 1-12 CBOT blades | From table below. Full height or half height |

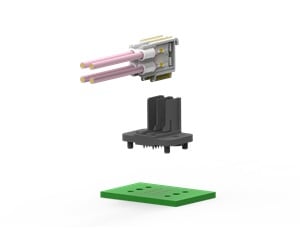

Connector Housing Assembly (including Press Fit PCB contacts)
| CBOT Positions | Half Height Part Numbers | Full Height Part Numbers |
|---|---|---|
| 1 | 2381854-1 | 2375213-1 |
| 2 | 2381854-2 | 2375213-2 |
| 3 | 2381854-3 | 2375213-3 |
| 4 | 2381854-4 | 2375213-4 |
| 5 | 2381854-5 | 2375213-5 |
| 6 | 2381854-6 | 2375213-6 |
| 7 | 2381854-7 | 2375213-7 |
| 8 | 2381854-8 | 2375213-8 |
| 9 | 2381854-9 | 2375213-9 |
| 10 | 1-2381854-0 | 1-2375213-0 |
| 11 | 1-2381854-1 | 1-2375213-1 |
| 12 | 1-2381854-2 | 1-2375213-2 |
