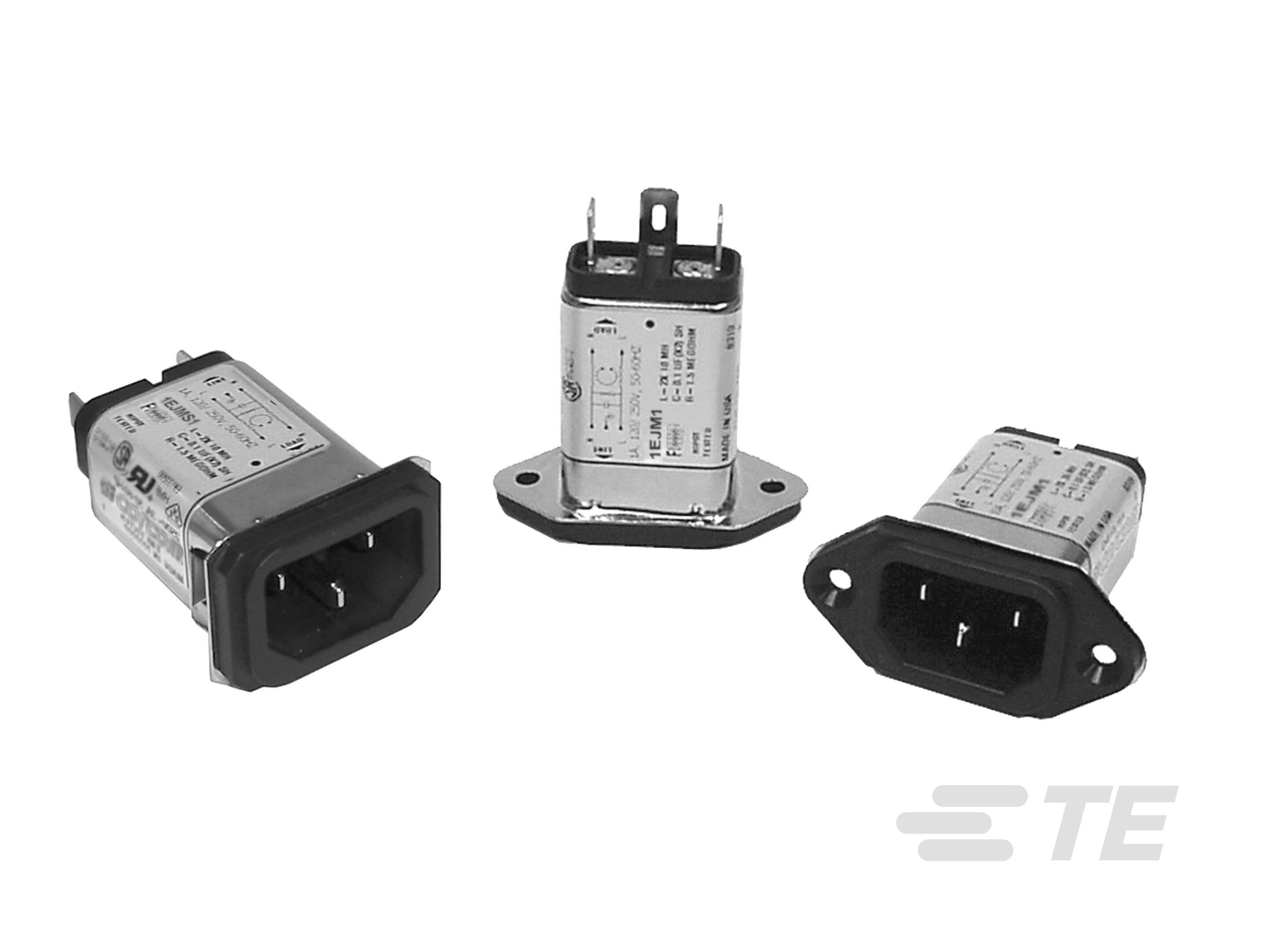

IEC Filtered Inlets, Corcom EJM Series

IEC Filtered Inlets, Corcom EJM Series-CAT-C8114-EJ65
  • Corcom
|
  • Corcom EJM
Cost-effective medium performance power inlet filter. Low leakage current, suitable for most medical applications.
More Less

Product Features

  • Filter Type : Power Line

  • Product Orientation : Vertical, Right Angle

  • Leakage Current (Max) (120VAC, 60Hz) (µA): 10, 220

  • Leakage Current (Max) (250VAC, 50Hz) (µA): 17, 380

  • Current Rating (A): 1, 3, 6, 10, 15

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Ground Choke Option  No

  • Filter Type  Power Line

  • Output Termination Type  .250" FASTON, Wire Lead

  • Filtering Requirements  Filtered

  • Filter Connector Type  IEC 320/C-14, IEC 60320-1 C-14

Electrical Characteristics

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 10, 220

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 17, 380

  • Current Rating (A) 1, 3, 6, 10, 15

  • Operating Voltage (VAC) 250

Body Features

  • Product Orientation  Vertical, Right Angle

Mechanical Attachment

  • Panel Mount Feature Type  Mounting Ears (Horizontal), Mounting Holes, Snap-In

Dimensions

  • Panel Thickness (Recommended)  .78 – 1.73 mm [ .031 – .068 in ]

Reference Number

  • TE Internal Number CAT-C8114-EJ65
