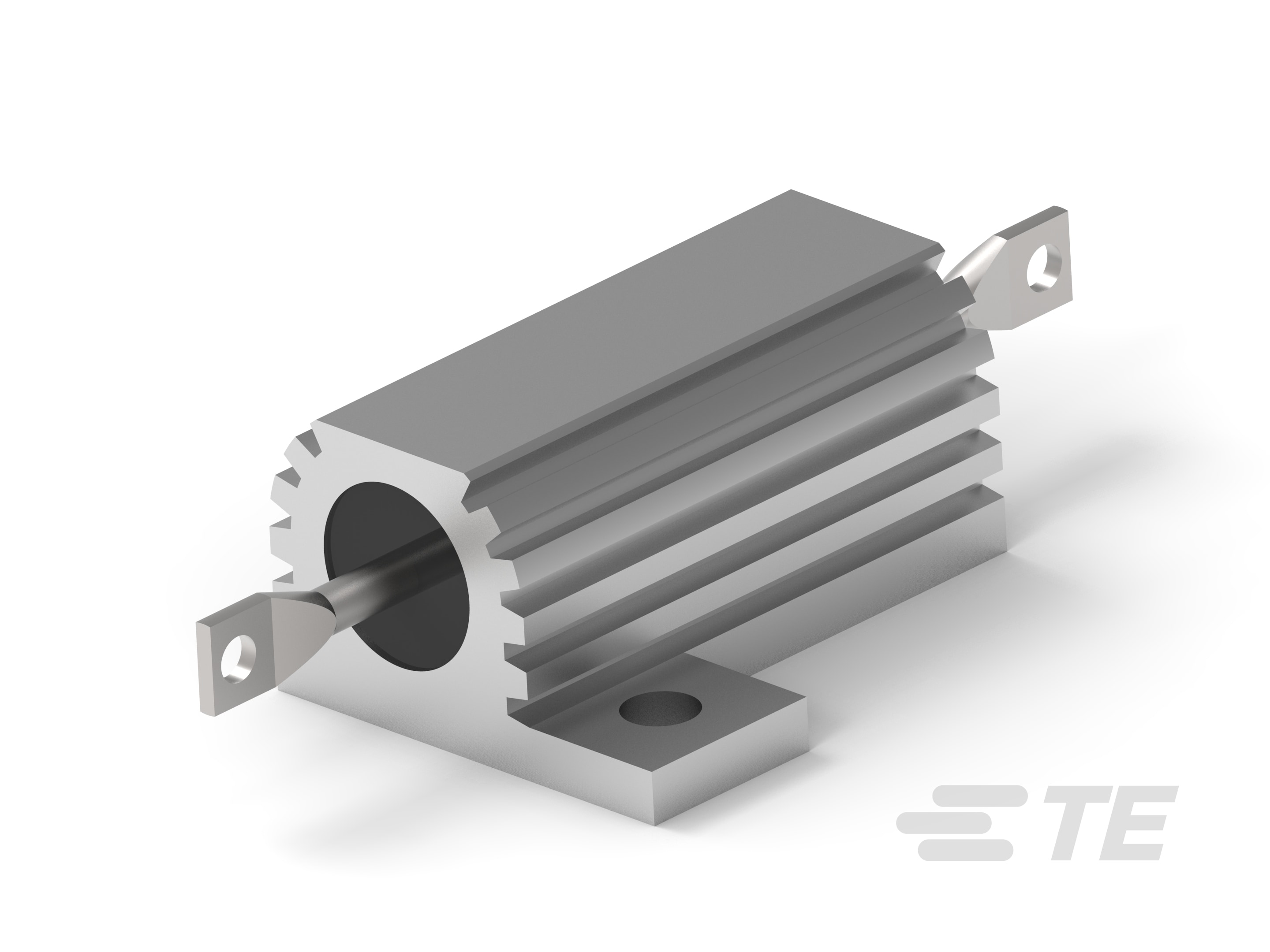

Power Resistor: Aluminum Housed, 75 Watt

CGS THS

Wirewound Aluminium Housed Power Resistors with up to 75W dissipation capability. Ideal for applications like Power Braking and Balancing.

More Less

Connect with Us

Product Features

Resistor Type : Power Resistor
Resistance Class : 1kΩ – 1MΩ | Up to 1kΩ
Resistance Value (Ω): .01 | .02 | .05 | .1 | .15 | .18 | .22 | .33 | .39 | .47 | .5 | .68 | .82 | 1K | 1 | 1.2 | 1.3K | 1.5K | 1.5 | 1.8 | 2 | 2.2 | 2.2K | 2.7K | 2.7 | 3.3K | 3.3 | 3.9 | 4.7 | 4.7K | 5 | 5.1 | 5.6 | 5.6K | 6.8K | 6.8 | 8.2 | 10 | 10K | 12 | 15 | 18 | 22 | 22K | 27 | 33K | 33 | 39 | 47K | 47 | 50 | 50K | 56 | 68 | 75 | 82 | 100 | 120 | 150 | 180 | 200 | 220 | 270 | 330 | 390 | 420 | 470 | 500 | 510 | 560 | 600 | 680 | 820
Power Rating (W): 10 | 15 | 25 | 50 | 75
Element Type : Wire Wound

Available from

Product	TE Part #	Documents	Resistance Class	Resistance Value	Power Rating	Temperature Coefficient	Product Height	Product Length	Product Width	EU ELV Compliance
THS50 R01 5% Buy on te.com	1879071-1	Product Drawing 3D PDF	Up to 1kΩ	.01 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R02 5% Buy on te.com	1879071-2	Product Drawing 3D PDF	Up to 1kΩ	.02 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R05 5% Buy on te.com	1879071-3	Product Drawing 3D PDF	Up to 1kΩ	.05 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R10 5%	1879071-4	Product Drawing 3D PDF	Up to 1kΩ	.1 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R15 5% Buy on te.com	1879071-5	Product Drawing 3D PDF	Up to 1kΩ	.15 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R22 5% Buy on te.com	1879071-6	Product Drawing 3D PDF	Up to 1kΩ	.22 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R33 5% Buy on te.com	1879071-7	Product Drawing 3D PDF	Up to 1kΩ	.33 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R47 5% Buy on te.com	1879071-8	Product Drawing 3D PDF	Up to 1kΩ	.47 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R50 5%	1879071-9	Product Drawing 3D PDF	Up to 1kΩ	.5 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 R68 5% Buy on te.com	1-1879071-0	Product Drawing 3D PDF	Up to 1kΩ	.68 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 1R0 5% Buy on te.com	1-1879071-1	Product Drawing 3D PDF	Up to 1kΩ	1 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 1R2 5% Buy on te.com	1-1879071-2	Product Drawing 3D PDF	Up to 1kΩ	1.2 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 1R5 5% Buy on te.com	1-1879071-3	Product Drawing 3D PDF	Up to 1kΩ	1.5 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 1R8 5% Buy on te.com	1-1879071-4	Product Drawing 3D PDF	Up to 1kΩ	1.8 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 2R0 5% Buy on te.com	1-1879071-5	Product Drawing 3D PDF	Up to 1kΩ	2 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 2R2 5% Buy on te.com	1-1879071-6	Product Drawing 3D PDF	Up to 1kΩ	2.2 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 2R7 5% Buy on te.com	1-1879071-7	Product Drawing 3D PDF	Up to 1kΩ	2.7 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 3R3 5%	1-1879071-8	Product Drawing 3D PDF	Up to 1kΩ	3.3 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 3R9 5% Buy on te.com	1-1879071-9	Product Drawing 3D PDF	Up to 1kΩ	3.9 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 4R7 5% Buy on te.com	2-1879071-0	Product Drawing 3D PDF	Up to 1kΩ	4.7 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 5R0 5% Buy on te.com	2-1879071-1	Product Drawing 3D PDF	Up to 1kΩ	5 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 5R6 5% Buy on te.com	2-1879071-2	Product Drawing 3D PDF	Up to 1kΩ	5.6 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 6R8 5% Buy on te.com	2-1879071-3	Product Drawing 3D PDF	Up to 1kΩ	6.8 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 8R2 5% Buy on te.com	2-1879071-4	Product Drawing 3D PDF	Up to 1kΩ	8.2 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 10R 5% Buy on te.com	2-1879071-5	Product Drawing 3D PDF	Up to 1kΩ	10 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 12R 5% Buy on te.com	2-1879071-6	Product Drawing 3D PDF	Up to 1kΩ	12 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 15R 5% Buy on te.com	2-1879071-7	Product Drawing 3D PDF	Up to 1kΩ	15 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 18R 5% Buy on te.com	2-1879071-8	Product Drawing 3D PDF	Up to 1kΩ	18 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 22R 5% Buy on te.com	2-1879071-9	Product Drawing 3D PDF	Up to 1kΩ	22 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 27R 5% Buy on te.com	3-1879071-0	Product Drawing 3D PDF	Up to 1kΩ	27 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 33R 5% Buy on te.com	3-1879071-1	Product Drawing 3D PDF	Up to 1kΩ	33 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 39R 5% Buy on te.com	3-1879071-2	Product Drawing 3D PDF	Up to 1kΩ	39 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 47R 5% Buy on te.com	3-1879071-3	Product Drawing 3D PDF	Up to 1kΩ	47 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 50R 5% Buy on te.com	3-1879071-4	Product Drawing 3D PDF	Up to 1kΩ	50 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 56R 5% Buy on te.com	3-1879071-5	Product Drawing 3D PDF	Up to 1kΩ	56 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 68R 5% Buy on te.com	3-1879071-6	Product Drawing 3D PDF	Up to 1kΩ	68 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 75R 5% Buy on te.com	3-1879071-7	Product Drawing 3D PDF	Up to 1kΩ	75 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 82R 5% Buy on te.com	3-1879071-8	Product Drawing 3D PDF	Up to 1kΩ	82 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 100R 5%	3-1879071-9	Product Drawing 3D PDF	Up to 1kΩ	100 Ω	50 W	±50 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 120R 5%	4-1879071-0	Product Drawing 3D PDF	Up to 1kΩ	120 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 150R 5% Buy on te.com	4-1879071-1	Product Drawing 3D PDF	Up to 1kΩ	150 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 180R 5% Buy on te.com	4-1879071-2	Product Drawing 3D PDF	Up to 1kΩ	180 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 220R 5% Buy on te.com	4-1879071-3	Product Drawing 3D PDF	Up to 1kΩ	220 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 270R 5%	4-1879071-4	Product Drawing 3D PDF	Up to 1kΩ	270 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 330R 5% Buy on te.com	4-1879071-5	Product Drawing 3D PDF	Up to 1kΩ	330 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 390R 5% Buy on te.com	4-1879071-6	Product Drawing 3D PDF	Up to 1kΩ	390 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 470R 5% Buy on te.com	4-1879071-7	Product Drawing 3D PDF	Up to 1kΩ	470 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 500R 5% Buy on te.com	4-1879071-8	Product Drawing 3D PDF	Up to 1kΩ	500 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 560R 5% Buy on te.com	4-1879071-9	Product Drawing 3D PDF	Up to 1kΩ	560 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-
THS50 680R 5% Buy on te.com	5-1879071-0	Product Drawing 3D PDF	Up to 1kΩ	680 Ω	50 W	±30 ppm/°C	17 mm	72.5 mm	30 mm	-

Overview

THS Series is a range of extremely stable, high quality Wirewound resistors capable of dissipating high power up to 75W (on a suitable heatsink) in a limited space with relatively low surface temperature.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Resistor Type Power Resistor
Element Type Wire Wound

Configuration Features

Number of Resistors 1

Electrical Characteristics

Operating Voltage (VDC) 160 | 265 | 550 | 1400
Operating Voltage (VAC) 1250
Operating Voltage (V) 1250
Resistance Class 1kΩ – 1MΩ | Up to 1kΩ
Resistance Value (Ω) .01 | .02 | .05 | .1 | .15 | .18 | .22 | .33 | .39 | .47 | .5 | .68 | .82 | 1K | 1 | 1.2 | 1.3K | 1.5K | 1.5 | 1.8 | 2 | 2.2 | 2.2K | 2.7K | 2.7 | 3.3K | 3.3 | 3.9 | 4.7 | 4.7K | 5 | 5.1 | 5.6 | 5.6K | 6.8K | 6.8 | 8.2 | 10 | 10K | 12 | 15 | 18 | 22 | 22K | 27 | 33K | 33 | 39 | 47K | 47 | 50 | 50K | 56 | 68 | 75 | 82 | 100 | 120 | 150 | 180 | 200 | 220 | 270 | 330 | 390 | 420 | 470 | 500 | 510 | 560 | 600 | 680 | 820
Power Rating (W) 10 | 15 | 25 | 50 | 75
Passive Component Tolerance (%) 5

Termination Features

Number of Terminations 2
Chassis Mount Resistor Termination Type Solder Lug

Mechanical Attachment

Panel Mount Feature Type Flange with Mounting Holes

Dimensions

Product Height (mm) 9 | 11 | 15 | 17 | 26
Product Height (in) .354 | .433 | .591 | .669 | 1.024
Product Length (mm) 30 | 36.5 | 51 | 71 | 72.5
Product Length (in) 1.181 | 1.437 | 2.008 | 2.795 | 2.854
Product Width (mm) 17 | 21 | 28 | 30 | 47.5
Product Width (in) .669 | .827 | 1.102 | 1.181 | 1.87

Usage Conditions

Temperature Coefficient (ppm/°C) ±30 | ±50

Packaging Features

Packaging Method Loose Piece - Tray

Reference Number

TE Internal Number CAT-C339-T419
