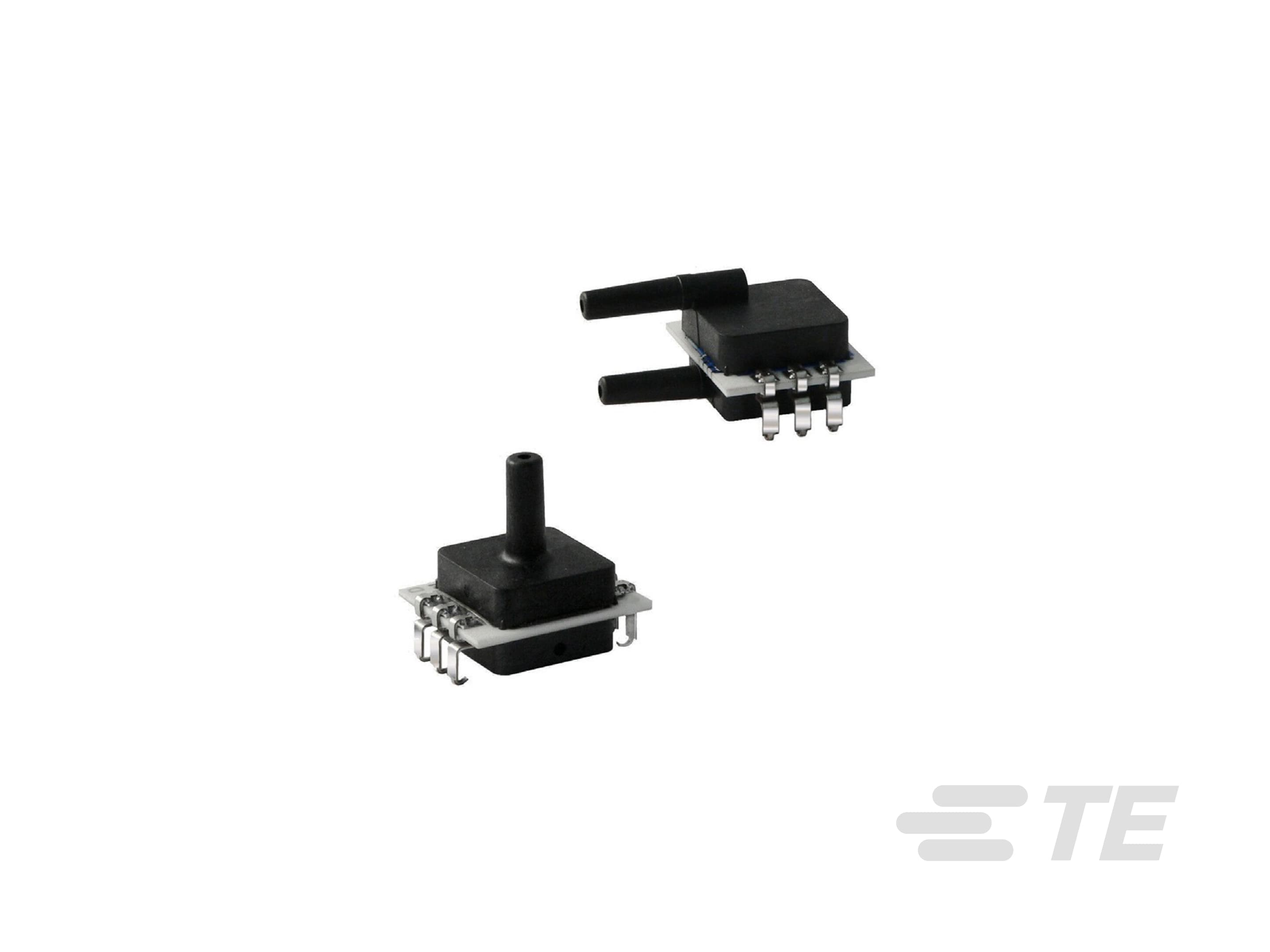

HDI - Amplified Pressure Sensors

First Sensor

First Sensor HDI

The HDI pressure sensors perform precision digital signal conditioning and provide analog and digital output at the same time.

More Less

Datasheet |

Connect with Us

Product Features

Pressure Sensor Type : Analog Pressure Sensor Modules | Digital Pressure and Altimeter Sensor Modules | Digital Pressure Sensor
Pressure Type : Absolute | Differential | Gauge
Pressure (mmH2O): 101 | 203 | 510 | 1020 | 2041 | 5102 | 5103 | 10206 | 11228 | 20415 | 51036
Pressure (inH2O): 4.01 | 8.03 | 20.09 | 40.18 | 80.37 | 200.9 | 200.93 | 401.8 | 442.05 | 803.72 | 2009.3
Pressure (mmHG): .29 | 2.95 | 7.5 | 14.7 | 15 | 37.5 | 75 | 150 | 375.03 – 375.05 | 750.06 | 825.06 | 1500 | 3750.3
Proof Pressure Range : .150 bar | 150 | 1 bar | 2 bar | 4 bar | 550 mbar | 7 bar

Available from

Product	TE Part #	Documents	Pressure Sensor Type	Pressure Type	Pressure	Pressure	Proof Pressure Range	Pressure	Output Signal Type	Pressure Accuracy	Supply Voltage Range	Sensor Options	EU RoHS Compliance
HDIB005GUY8P3; PRES; 0...5bar; 2V; 3V	2003485-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	51036 mmH2O	3750.3 mmHG	7 bar	5 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM500DBF8P5; PRES; +-500mbar;DIL;5V	2003150-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	5102 mmH2O	375.03 – 375.05 mmHG	1 bar	.5 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM500DUE8P3; PRES; 0..500mbar;SMD;3V	2003159-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	5102 mmH2O	375.03 – 375.05 mmHG	1 bar	.5 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIB005DUF8P5; PRES; 0...5bar; 4V; 5V	2003340-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	51036 mmH2O	3750.3 mmHG	7 bar	5 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDI0811ARY8P3;PRES;800-1100mbara;SMD;3V	2003165-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	11228 mmH2O	825.06 mmHG	2 bar	1.1 bar	.5 – 2.5 V	±1.0 %FSS	2.7 – 3.3 V	No Option	-
HDIM020DUF8P5; PRES; 0..20mbar; 4V; 5V	2003295-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	203 mmH2O	15 mmHG	150	.02 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM100DBF8P5; PRES; +-100mbar; 4V; 5V	2003319-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	1020 mmH2O	75 mmHG	1 bar	.1 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM050DUE8H3; PRESS 50mbar, SMD, 3V	2003178-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	550 mbar	.05 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIB005AUY8P3; PRES; 0...5bara; 2V; 3V	2003266-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	51036 mmH2O	3750.3 mmHG	7 bar	5 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM200DUE8P3; PRES; 0..200mbar; 2V; 3V	2003318-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	2041 mmH2O	150 mmHG	1 bar	.2 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIB005AUZ8P5; PRES; 0...5bara; 4V; 5V	2003415-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	51036 mmH2O	3750.3 mmHG	7 bar	5 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM050DUE8P3; PRES; 0..50mbar;SMD;3V	2003862-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	550 mbar	.05 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM050GUZ8P5; PRES; 0..50mbar; 4V; 5V	2003313-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	510 mmH2O	37.5 mmHG	550 mbar	.05 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDI0611ARZ8P5;PRES;600...1100mbara;4V;5V	2003321-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	11228 mmH2O	825.06 mmHG	2 bar	1.1 bar	0 – 5 V	±1.0 %FSS	4.5 – 5.5 V	No Option	-
HDIM100GBY8P5; PRES; +-100mbar;SMD;5V	2003174-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	1020 mmH2O	75 mmHG	1 bar	.1 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM100DBE8P5; PRES; +-100mbar;SMD;5V	2003097-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	1020 mmH2O	75 mmHG	1 bar	.1 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB002GUZ8P5; PRES; 0-2bar;DIL;5V	2003123-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	20415 mmH2O	1500 mmHG	4 bar	2 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM010DBE8P3; PRES; +-10mbar; 2V; 3V	2003270-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	101 mmH2O	7.5 mmHG	150	.01 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDI0811ARZ8P3;PRES 800..1100mbara;2V;3V	2003685-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	11228 mmH2O	825.06 mmHG	2 bar	1.1 bar	.5 – 2.5 V	±1.0 %FSS	2.7 – 3.3 V	No Option	-
HDIM010DUF8P5; PRES; 0..10mbar; 4V; 5V	2003214-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	101 mmH2O	7.5 mmHG	150	.01 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB001AUZ8P3; PRES; 0-1bara;DIL;3V	2003919-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	10206 mmH2O	750.06 mmHG	2 bar	1 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM050GBY8H3; PRES +-50mbar; 2V; 3V	2003606-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	510 mmH2O	37.5 mmHG	550 mbar	.05 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIB001GBZ8P3; PRES; +-1bar; 2V, 3V	2004003-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	10206 mmH2O	750.06 mmHG	2 bar	1 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM020DUE8P3; PRES; 0..20mbar;SMD;3V	2003156-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	203 mmH2O	15 mmHG	150	.02 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIB005GUY8H3; PRES; 0...5; 2V; 3V	2003238-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	51036 mmH2O	3750.3 mmHG	7 bar	5 bar	.5 – 2.5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB001AUY8P5; PRES; 0-1bara;SMD;5V	2003042-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	10206 mmH2O	750.06 mmHG	2 bar	1 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB005GUZ8P5; PRES; 0...5barg; 4V; 5V	2003294-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	51036 mmH2O	3750.3 mmHG	7 bar	5 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM050DUE8P5; Pres; 0..50mbar;SMD;5V	2003095-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	550 mbar	.05 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB001DUF8P5; PRES; 0...1bar; 4V; 5V	2003434-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	10206 mmH2O	750.06 mmHG	2 bar	1 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM500GUY8P5; PRES; 0..500MBARD;SMD;5V	2003101-F	3D PDF	Digital Pressure and Altimeter Sensor Modules	Gauge	5103 mmH2O	14.7 mmHG	1 bar	.5 bar	.5 – 4.5 V, 12 bit I²C	±0.5 %FSS	4.5 – 5.5 V	Custom Ranges, Tube	-
HDI0611ARY8P3;Pres;600...1100mbara;2V;3V	2003380-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	11228 mmH2O	825.06 mmHG	2 bar	1.1 bar	.5 – 2.5 V	±1.0 %FSS	2.7 – 3.3 V	No Option	-
HDIM500GBY8P5; PRES -500...500mbar 5V 4V	2003981-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	5102 mmH2O	375.03 – 375.05 mmHG	1 bar	.5 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM100DUE8P3; PRES; 0..100mbar;SMD;3V	2003158-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	1020 mmH2O	75 mmHG	1 bar	.1 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIB002GUZ8P3; PRES; 0...2bar; 2V; 3V	2004002-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	20415 mmH2O	1500 mmHG	4 bar	2 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM500DUF8P3; PRES; 0...500mbar; 2V; 3V	2003520-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	5102 mmH2O	375.03 – 375.05 mmHG	1 bar	.5 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM010DUE8P5; PRES; 10mbard;SMD;5V	2003039-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	101 mmH2O	7.5 mmHG	150	.01 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB001DBF8P5; PRES; +-1bard;4V;5V	2003053-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	10206 mmH2O	750.06 mmHG	2 bar	1 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB002DUF8P5; PRES; 0...2bar; 4V; 5V	2003226-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	20415 mmH2O	1500 mmHG	4 bar	2 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB001DUE8H3; PRES; 0...1bar; 2V; 3V	2003612-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	10206 mmH2O	750.06 mmHG	2 bar	1 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM200DUF8P3; PRES 0...200mbar; 2V; 3V	2003602-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	2041 mmH2O	150 mmHG	1 bar	.2 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM050GBY8P3; PRES; +-50mbar; 2V; 3V	2004042-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	510 mmH2O	37.5 mmHG	550 mbar	.05 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM100DUE8P5; PRES; 0..100mbar;SMD;5V	2003098-F	3D PDF	Digital Pressure and Altimeter Sensor Modules	Differential	1020 mmH2O	2.95 mmHG	1 bar	.1 bar	.5 – 4.5 V, 12 bit I²C	±0.5 %FSS	4.5 – 5.5 V	Custom Ranges, Tube	-
HDIB002AUZ8P5; PRES; 0...2bara; 4V; 5V	2003342-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Absolute	20415 mmH2O	1500 mmHG	4 bar	2 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM100DUF8P5; PRES; 0...100mbar; 4V, 5V	2003347-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	1020 mmH2O	75 mmHG	1 bar	.1 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIB005GUY8P5; PRES; 0-5bar;SMD;5V	2003114-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	51036 mmH2O	3750.3 mmHG	7 bar	5 bar	0 – 5 V	±0.5 %FSS	4.5 – 5.5 V	No Option	-
HDIM100DUF8P3; PRES; 0...100mbar; 2V; 3V	2003847-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	1020 mmH2O	75 mmHG	1 bar	.1 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM100GUZ8P3; PRES; 0...100mbar; 2V; 3V	2003717-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Gauge	1020 mmH2O	75 mmHG	1 bar	.1 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIM010GBZ8P5; PRES; +-10mbar; 4V; 5V	2003438-F	3D PDF	Digital Pressure and Altimeter Sensor Modules	Gauge	101 mmH2O	.29 mmHG	.150 bar	.01 bar	.5 – 4.5 V, 12 bit I²C	±0.5 %FSS	4.5 – 5.5 V	Custom Ranges, Tube	-
HDIM200DBE8P3; PRES;+-200mbar; 2V; 3V	2003487-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	2041 mmH2O	150 mmHG	1 bar	.2 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-
HDIB005DUE8P3; PRES; 0...5bar; 2V; 3V	2003645-F	3D PDF	Analog Pressure Sensor Modules, Digital Pressure Sensor	Differential	51036 mmH2O	3750.3 mmHG	7 bar	5 bar	.5 – 2.5 V	±0.5 %FSS	2.7 – 3.3 V	No Option	-

Overview

The sensors are calibrated, temperature compensated and linearized and achieve very high total accuracies. They are intended to be used with dry and non- corrosive gases. Miniature SMT and DIP housings allow for space-saving PCB-mounting and maximum OEM design flexibility. All HDI pressure sensors can be modified according to customer specific requirements.

Benefits

Pressure ranges from 10 mbar to 5 bar, absolute, gage or differential pressure
Digital I²C bus and analog output
Precision ASIC signal conditioning
Calibrated and temperature compensated
SMT and DIP housings

Applications

Medical devices
Instrumentation
HVAC
Industrial controls
Pneumatic controls
Environmental controls

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Leg Style J Style | Through Hole
Sensor Package 6 pin DIL | 6 pin SMD
Pressure Sensor Type Analog Pressure Sensor Modules | Digital Pressure and Altimeter Sensor Modules | Digital Pressure Sensor
Pressure Type Absolute | Differential | Gauge

Electrical Characteristics

Supply Voltage Range (V) 2.7 – 3.3 | 4.5 – 5.5

Dimensions

Product Width (mm) 11.9 | 19.5
Product Width (in) .468 | .767
Product Length 15.7 mm [ .618 in ]
Product Height (mm) 9.96 | 11 | 15.86 | 16.9
Product Height (in) .392 | .433 | .624 | .665

Usage Conditions

Pressure (bar) .01 | .02 | .05 | .1 | .2 | .5 | 1 | 1.1 | 2 | 5
Pressure (psi) .145 | .29 | .725 | 1.45 | 2.9 | 7.25 | 14.5 | 15.95 | 29 | 72.51
Operating Temperature Range -20 – 85 °C [ -4 – 185 °F ]

Operation/Application

Resolution 12
Output Interface Analog | I²C
Pressure (mmH2O) 101 | 203 | 510 | 1020 | 2041 | 5102 | 5103 | 10206 | 11228 | 20415 | 51036
Pressure (inH2O) 4.01 | 8.03 | 20.09 | 40.18 | 80.37 | 200.9 | 200.93 | 401.8 | 442.05 | 803.72 | 2009.3
Pressure (mmHG) .29 | 2.95 | 7.5 | 14.7 | 15 | 37.5 | 75 | 150 | 375.03 – 375.05 | 750.06 | 825.06 | 1500 | 3750.3
Proof Pressure Range .150 bar | 150 | 1 bar | 2 bar | 4 bar | 550 mbar | 7 bar
Output Signal Type .5 – 2.5 V | .5 – 4.5 V | 0 – 5 V | 12 bit I²C
Pressure Accuracy ±0.5 %FSS | ±1.0 %FSS

Packaging Features

Sensor Port Configuration Dual Sideport | Single Sideport | Single Vertical

Other

Sensor Options Custom Ranges | No Option | Tube

Reference Number

TE Internal Number CAT-BLPS0087
