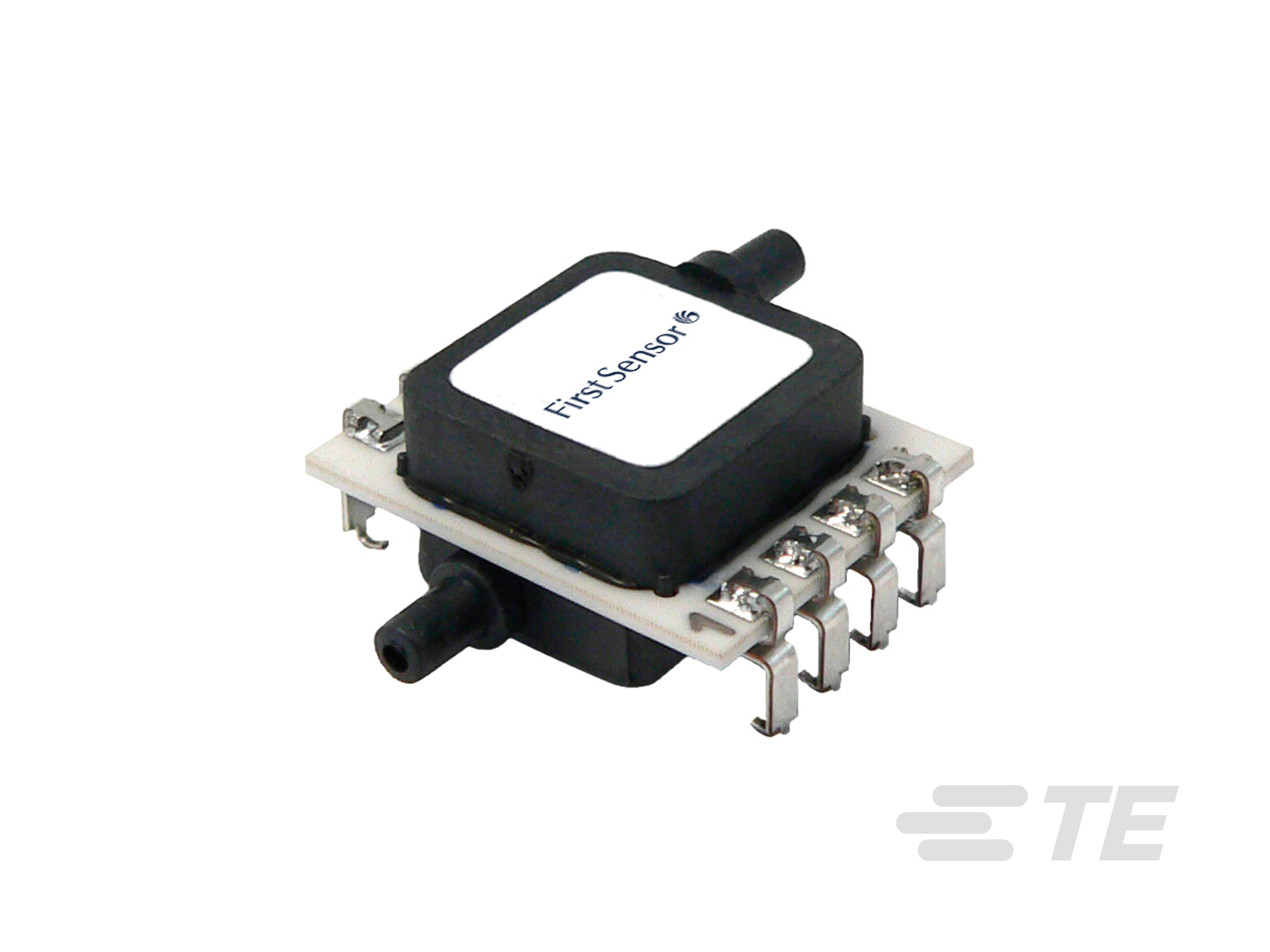

HCLA-Miniature Comp Low Pressure Sensors

First Sensor

First Sensor HCLA

The HCLA pressure sensors perform precision digital signal conditioning and provide analog and digital output at the same time.

More Less

Datasheet |

Connect with Us

Product Features

Pressure Sensor Type : Digital Pressure and Altimeter Sensor Modules | Digital Pressure Sensor
Pressure Type : Differential | Gauge
Pressure (mmH2O): 10.1 | 25.4 | 50.8 | 127 | 255 | 510 | 765
Pressure (inH2O): .401 | 1 | 2 | 5.02 | 10.04 | 20.09 | 30.13
Pressure (mmHG): .073 | .369 | .75 | 1.87 | 2.21 | 3.75 | 9.37 | 18.75 | 37.5 | 56.25
Proof Pressure Range : .25 bar | 1.2 bar | 250 | 500 | 750 mbar

Available from

Product	TE Part #	Documents	Pressure Sensor Type	Pressure Type	Pressure	Pressure	Proof Pressure Range	Pressure	Output Signal Type	Pressure Accuracy	Sensor Options	EU RoHS Compliance
HCLA02X5QU; PRES;0..2,5mbard;4V;5V;2mm	2002998-F	3D PDF	Digital Pressure and Altimeter Sensor Modules	Differential	25.4 mmH2O	.073 mmHG	.25 bar	.002 bar	.25 – 4.25 V, 14 bit SPI	±0.05 % F.S Non-Linearity	Custom Ranges, Tube	-
HCLA0025PB; PRES: +-25mbar; 4V; 5V	2003397-F	3D PDF	Digital Pressure Sensor	Differential	255 mmH2O	18.75 mmHG	500	.025 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA02X5EU;2.5mbard, SMD,0.25-4.25V same	2002984-F	3D PDF	Digital Pressure and Altimeter Sensor Modules	Differential	25.4 mmH2O	.073 mmHG	.25 bar	.002 bar	.25 – 4.25 V, 14 bit SPI	±0.05 % F.S Non-Linearity	Custom Ranges, Tube	-
HCLA0005EB;0...+-5mbar,2.25+-2.00V,E-TYP	2003003-F	3D PDF	Digital Pressure Sensor	Differential	50.8 mmH2O	3.75 mmHG	.25 bar	.005 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075EU; 0...+75mbar 0,25...4,25V	2003010-F	3D PDF	Digital Pressure Sensor	Differential	765 mmH2O	56.25 mmHG	1.2 bar	.075 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA12X5EB;+/- 12.5mbard,SMD,Same	2002983-F	3D PDF	Digital Pressure and Altimeter Sensor Modules	Differential	127 mmH2O	.369 mmHG	.25 bar	.012 bar	.25 – 4.25 V, 14 bit SPI	±0.05 % F.S Non-Linearity	Custom Ranges, Tube	-
HCLA0001EB; PRES;+-1mbard;4V;5V;2mm	2003011-F	3D PDF	Digital Pressure Sensor	Differential	10.1 mmH2O	.75 mmHG	.25 bar	.001 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA12X5DB; 0+-12.5mbard,2,25V +/-2V	2002968-F	3D PDF	Digital Pressure Sensor	Differential	127 mmH2O	9.37 mmHG	250	.012 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0025EB;+-25mbar,2.25+-2.00V,E-TYP	2002987-F	3D PDF	Digital Pressure Sensor	Differential	255 mmH2O	18.75 mmHG	500	.025 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075HU; 0...75mbar,0.5...4.5V,H-TYP	2003127-F	3D PDF	Digital Pressure Sensor	Gauge	765 mmH2O	56.25 mmHG	1.2 bar	.075 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0005EU; PRES: 0...5mbar; 4V; 5V	2003276-F	3D PDF	Digital Pressure Sensor	Differential	50.8 mmH2O	3.75 mmHG	.25 bar	.005 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA12X5DU; 0...+12,5mbard 0,25...4,25V	2002985-F	3D PDF	Digital Pressure Sensor	Differential	127 mmH2O	9.37 mmHG	250	.012 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075DB; PRES;+-75mbard;4V;5V;2mm	2003020-F	3D PDF	Digital Pressure Sensor	Differential	765 mmH2O	56.25 mmHG	1.2 bar	.075 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0025EU; 0...+25mbar 0,25...4,25V	2003021-F	3D PDF	Digital Pressure Sensor	Differential	255 mmH2O	18.75 mmHG	500	.025 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0050DB;+-50mbar,2.25+-2.00V,D-TYP	2003025-F	3D PDF	Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	750 mbar	.05 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075QB; PRES;+-75mbard;4V;5V;2mm	2003062-F	3D PDF	Digital Pressure Sensor	Differential	765 mmH2O	56.25 mmHG	1.2 bar	.075 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0050GU; PRES; 0...50mbar; 4V; 5V	2003788-F	3D PDF	Digital Pressure Sensor	Gauge	510 mmH2O	37.5 mmHG	750 mbar	.05 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA02X5DU;0-2.5mbard,0.25-4.25V,same s.	2002972-F	3D PDF	Digital Pressure Sensor	Differential	25.4 mmH2O	1.87 mmHG	250	.002 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA02X5GB;PRES;0...+-2.5mbarg;4V;5V;2mm	2003016-F	3D PDF	Digital Pressure Sensor	Gauge	25.4 mmH2O	1.87 mmHG	250	.002 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA12X5PB; +/-12,5mbar 2,25+-2V SIL	2003032-F	3D PDF	Digital Pressure Sensor	Differential	127 mmH2O	9.37 mmHG	250	.012 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0005GB; PRES; +-5mbar; 4V; 5V	2003374-F	3D PDF	Digital Pressure Sensor	Gauge	50.8 mmH2O	3.75 mmHG	.25 bar	.005 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0001DU; PRES 0..1mbar, 4V 5V	2003877-F	3D PDF	Digital Pressure Sensor	Differential	10.1 mmH2O	.75 mmHG	.25 bar	.001 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0050DU; PRES;0...50mbarg;4V;5V;2mm	2003045-F	3D PDF	Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	750 mbar	.05 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA12X5TU; PRES; 0..12,5mbar; 4V; 5V	2003251-F	3D PDF	Digital Pressure Sensor	Differential	127 mmH2O	9.37 mmHG	250	.012 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0050EU; 0...+50mbar 0,25...4,25V	2003048-F	3D PDF	Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	750 mbar	.05 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0001HB; PRES; +-1mbar; 4V; 5V	2003493-F	3D PDF	Digital Pressure Sensor	Gauge	10.1 mmH2O	.75 mmHG	.25 bar	.001 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0001EU; PRES 0..1mbar, 4V, 5V	2003764-F	3D PDF	Digital Pressure Sensor	Differential	10.1 mmH2O	.75 mmHG	.25 bar	.001 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA12X5GU;0...12.5mbar,0.5...4.5V,G-TYP	2003841-F	3D PDF	Digital Pressure Sensor	Gauge	127 mmH2O	9.37 mmHG	250	.012 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0005DU; PRES; +-5mbar; 4V; 5V	2003878-F	3D PDF	Digital Pressure Sensor	Differential	50.8 mmH2O	3.75 mmHG	.25 bar	.005 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0005HU; PRES 0...5mbar 5V 4V	2004043-F	3D PDF	Digital Pressure Sensor	Gauge	50.8 mmH2O	3.75 mmHG	.25 bar	.005 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0025HB; 0...+-25mbar,2.25+-2.00V	2003007-F	3D PDF	Digital Pressure Sensor	Gauge	255 mmH2O	18.75 mmHG	500	.025 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0050PB; PRES;+-50mbard;4V;5V;2mm	2003179-F	3D PDF	Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	750 mbar	.05 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0005DB;0...+-5mbar,2.25+-2.00V,D-TYP	2003189-F	3D PDF	Digital Pressure Sensor	Differential	50.8 mmH2O	3.75 mmHG	.25 bar	.005 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075TU; 0...+75mbar 0,25...4,25V TOP	2002988-F	3D PDF	Digital Pressure Sensor	Differential	765 mmH2O	56.25 mmHG	1.2 bar	.075 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075DU; PRES; 0..75mbar; 4V; 5V	2003196-F	3D PDF	Digital Pressure Sensor	Differential	765 mmH2O	56.25 mmHG	1.2 bar	.075 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA02X5GU; 0-2.5mbarg,0.25-4.25V,leaded	2002966-F	3D PDF	Digital Pressure Sensor	Differential	25.4 mmH2O	1.87 mmHG	250	.002 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0050EB; PRES;+-50mbard;4V;5V	2003001-F	3D PDF	Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	750 mbar	.05 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0050PU; PRES;0...50mbard;4V;5V;2mm	2003012-F	3D PDF	Digital Pressure Sensor	Differential	510 mmH2O	37.5 mmHG	750 mbar	.05 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA12X5HU; PRES; 0...12,5mbar; 4V; 5V	2003357-F	3D PDF	Digital Pressure Sensor	Gauge	127 mmH2O	9.37 mmHG	250	.012 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075GU;0-75mbard, 0.25-4.25V, 1Kappe	2003842-F	3D PDF	Digital Pressure Sensor	Gauge	765 mmH2O	56.25 mmHG	1.2 bar	.075 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA02X5PB;+-2.5mbard,0.25-4.25V,opp.sid	2002969-F	3D PDF	Digital Pressure Sensor	Differential	25.4 mmH2O	1.87 mmHG	250	.002 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075PB;+-75mbard, 0.25-4.25V,opp.sid	2002970-F	3D PDF	Digital Pressure Sensor	Differential	765 mmH2O	56.25 mmHG	1.2 bar	.075 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0050HU; PRES;0...50mbarg;4V;5V;2mm	2003031-F	3D PDF	Digital Pressure Sensor	Gauge	510 mmH2O	37.5 mmHG	750 mbar	.05 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA02X5TU; 0...+2,5mbar 0,25...4,25V	2003030-F	3D PDF	Digital Pressure and Altimeter Sensor Modules	Differential	25.4 mmH2O	.073 mmHG	.25 bar	.002 bar	.25 – 4.25 V, 14 bit SPI	±0.05 % F.S Non-Linearity	Custom Ranges, Tube	-
HCLA02X5DB;+-2.5mbard,0.25-4.25V,same s.	2002964-F	3D PDF	Digital Pressure Sensor	Differential	25.4 mmH2O	1.87 mmHG	250	.002 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0025DB;+-25mbar,2.25+-2.00V,D-TYP	2002993-F	3D PDF	Digital Pressure Sensor	Differential	255 mmH2O	18.75 mmHG	500	.025 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0025TU; PRES; 0...25mbar; 4V; 5V	2003282-F	3D PDF	Digital Pressure Sensor	Differential	255 mmH2O	18.75 mmHG	500	.025 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA12X5EU; 0...+12,5mbard 0,25...4,25V	2002986-F	3D PDF	Digital Pressure Sensor	Differential	127 mmH2O	9.37 mmHG	250	.012 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0025DU; 0...+25mbard 0,25...4,25V	2003026-F	3D PDF	Digital Pressure Sensor	Differential	255 mmH2O	18.75 mmHG	500	.025 bar	.5 – 4.5 V	±0.05 % F.S Non-Linearity	No Option	-
HCLA0075EB; PRES; +-75mbar; 4V; 5V	2003000-F	3D PDF	Digital Pressure and Altimeter Sensor Modules	Differential	765 mmH2O	2.21 mmHG	1.2 bar	.075 bar	.25 – 4.25 V, 14 bit SPI	±0.05 % F.S Non-Linearity	Custom Ranges, Tube	-

Overview

The sensors are calibrated, temperature compensated and linearized and use a special compensation technique to achieve very high offset stability and virtually no position sensitivity. They are intended to be used with dry and non-corrosive gases. Miniature SMT and SIL housings allow for space-saving PCB-mounting and maximum OEM design flexibility. All HCLA pressure sensors can be modified according to customer specific requirements.

Benefits

Pressure ranges from 0 to 2.5 up to 0 to 75 mbar, 0 to ±2.5 up to 0 to ±75 mbar, differential or gage
Output: 0.25 to 4.25 V and I²C-bus (SPI optional)
Precision ASIC conditioning
Calibrated and temperature compensated
Miniature SMT and SIL housings

Applications

Medical devices
Instrumentation
HVAC
Industrial controls
Pneumatic controls
Environmental controls

White Paper

Making HVAC Systems More Efficient and Reliable with Sensors (English)

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Leg Style J Style
Sensor Package 4 pin SIL | 8 pin SMD
Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules | Digital Pressure Sensor
Pressure Type Differential | Gauge

Electrical Characteristics

Supply Voltage Range (V) 4.5 – 5.5

Dimensions

Product Width (mm) 15.9 | 19.1 | 26.3 | 27.85
Product Width (in) .625 | .751 | 1.03 | 1.09
Product Length (mm) 12.7 | 15.9 | 16.7 | 19.1
Product Length (in) .5 | .625 | .657 | .751
Product Height (mm) 4.68 | 7.7 | 8.2 | 8.26
Product Height (in) .184 | .303 | .322 | .325

Usage Conditions

Pressure (bar) .001 | .002 | .005 | .012 | .025 | .05 | .075
Pressure (psi) .014 | .036 | .072 | .181 | .362 | .725 | 1.08
Operating Temperature Range -25 – 85 °C [ -13 – 185 °F ]

Operation/Application

Resolution 12
Output Interface Analog | I²C | SPI
Pressure (mmH2O) 10.1 | 25.4 | 50.8 | 127 | 255 | 510 | 765
Pressure (inH2O) .401 | 1 | 2 | 5.02 | 10.04 | 20.09 | 30.13
Pressure (mmHG) .073 | .369 | .75 | 1.87 | 2.21 | 3.75 | 9.37 | 18.75 | 37.5 | 56.25
Proof Pressure Range .25 bar | 1.2 bar | 250 | 500 | 750 mbar
Output Signal Type .25 – 4.25 V | .5 – 4.5 V | 14 bit SPI
Pressure Accuracy ±0.05 % F.S Non-Linearity

Packaging Features

Sensor Port Configuration Dual Opposite Sideport | Dual Sideport | Single Sideport

Other

Sensor Options Custom Ranges | No Option | Tube

Reference Number

TE Internal Number CAT-BLPS0086

Related Materials

Datasheets & Catalog Pages

HCLA-Miniature Comp Low Pressure Sensors pdf English

HCLA-Miniature Comp Low Pressure Sensors

Product Features

Pressure Sensor Type : Digital Pressure and Altimeter Sensor Modules | Digital Pressure Sensor

Pressure Type : Differential | Gauge

Pressure (mmH2O): 10.1 | 25.4 | 50.8 | 127 | 255 | 510 | 765

Pressure (inH2O): .401 | 1 | 2 | 5.02 | 10.04 | 20.09 | 30.13

Pressure (mmHG): .073 | .369 | .75 | 1.87 | 2.21 | 3.75 | 9.37 | 18.75 | 37.5 | 56.25

Proof Pressure Range : .25 bar | 1.2 bar | 250 | 500 | 750 mbar

Benefits

Applications

Product Type Features

Leg Style J Style

Sensor Package 4 pin SIL | 8 pin SMD

Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules | Digital Pressure Sensor

Pressure Type Differential | Gauge

Electrical Characteristics

Supply Voltage Range (V) 4.5 – 5.5

Dimensions

Product Width (mm) 15.9 | 19.1 | 26.3 | 27.85

Product Width (in) .625 | .751 | 1.03 | 1.09

Product Length (mm) 12.7 | 15.9 | 16.7 | 19.1

Product Length (in) .5 | .625 | .657 | .751

Product Height (mm) 4.68 | 7.7 | 8.2 | 8.26

Product Height (in) .184 | .303 | .322 | .325

Usage Conditions

Pressure (bar) .001 | .002 | .005 | .012 | .025 | .05 | .075

Pressure (psi) .014 | .036 | .072 | .181 | .362 | .725 | 1.08

Operating Temperature Range -25 – 85 °C [ -13 – 185 °F ]

Operation/Application

Resolution 12

Output Interface Analog | I²C | SPI

Pressure (mmH2O) 10.1 | 25.4 | 50.8 | 127 | 255 | 510 | 765

Pressure (inH2O) .401 | 1 | 2 | 5.02 | 10.04 | 20.09 | 30.13

Pressure (mmHG) .073 | .369 | .75 | 1.87 | 2.21 | 3.75 | 9.37 | 18.75 | 37.5 | 56.25

Proof Pressure Range .25 bar | 1.2 bar | 250 | 500 | 750 mbar

Output Signal Type .25 – 4.25 V | .5 – 4.5 V | 14 bit SPI

Pressure Accuracy ±0.05 % F.S Non-Linearity

Packaging Features

Sensor Port Configuration Dual Opposite Sideport | Dual Sideport | Single Sideport

Other

Sensor Options Custom Ranges | No Option | Tube

Reference Number

TE Internal Number CAT-BLPS0086

Datasheets & Catalog Pages

White Paper
