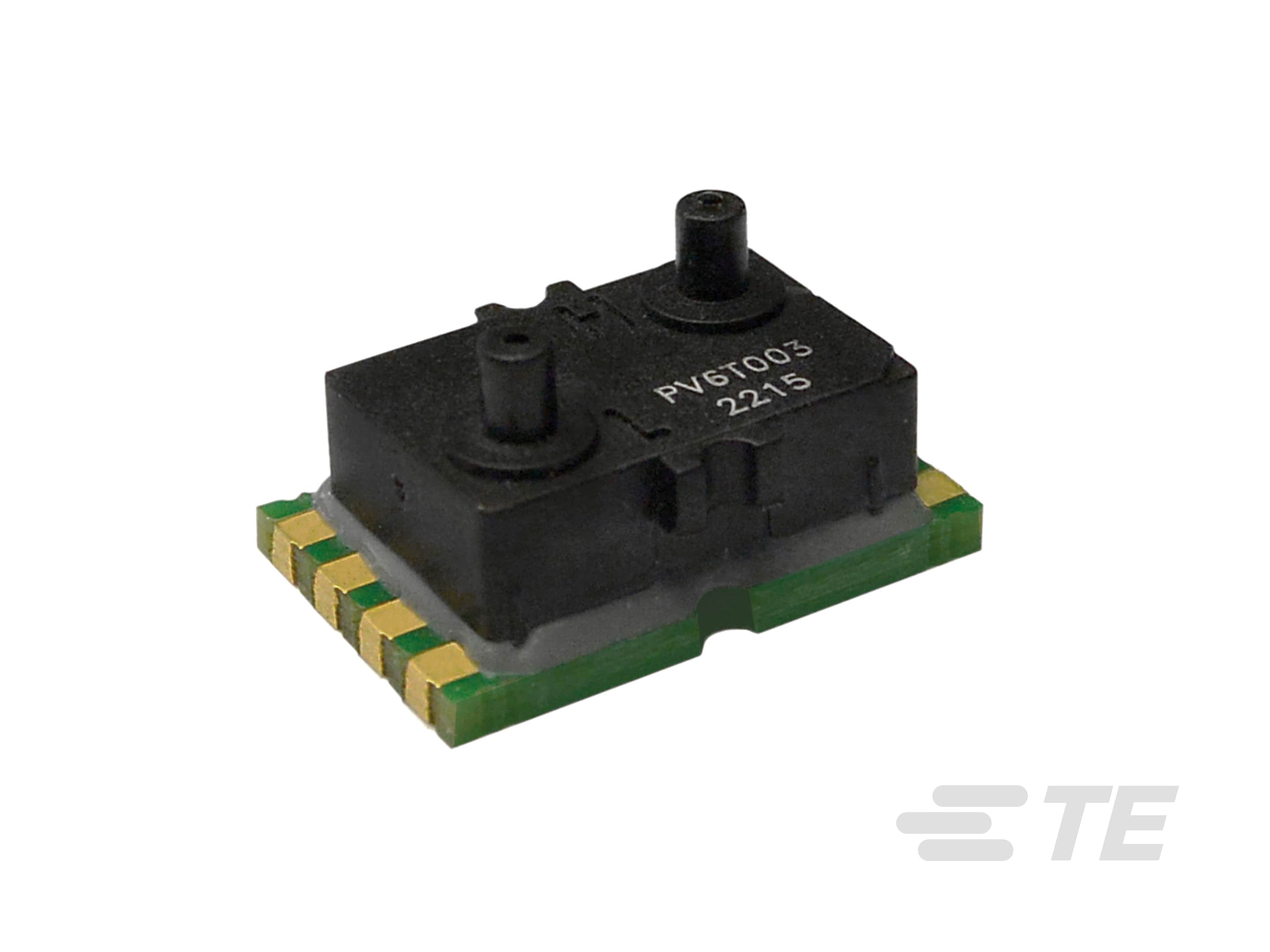

LME - Digital Low Diff Pressure Sensors

LME - Digital Low Diff Pressure Sensors-CAT-BLPS0083
  • First Sensor
|
  • First Sensor LME
The LME differential low-pressure sensors are based on thermal flow measurement of gas through a micro-flow channel integrated within the sensor chip.
More Less

Product Features

  • Pressure (inH2O): .1 | .2 | .401 | 1 | 2 | 4.01 | 5.02 | 10.04

  • Pressure Sensor Type : Digital Pressure and Altimeter Sensor Modules | Digital Pressure Sensor

  • Pressure Type : Differential

  • Pressure (mmHG): .187 | .375 | .75 | 1.87 | 3.75 | 9.37 | 18.75

  • Proof Pressure Range : 2 bar

Available from

LADD Inc

Build and price the product now

Overview

The innovative LME technology features superior sensitivity especially for ultra-low pressures. The extremely low gas flow through the sensor ensures high immunity to dust contamination and long tubing compared to other flow-based pressure sensors.

Benefits

  • Ultra-low pressure ranges from 25 to 2500 Pa (0.1 to 10 inH2O)
  • Pressure sensor based on thermal micro-flow measurement
  • High flow impedance
  • Very low flow-through leakage
  • High immunity to dust
  • Ho loss in sensitivity using long tubing
  • Outstanding long-term stability and precision with patented real-time offset compensation and linearization techniques
  • Offset long term stability better than 0.1 Pa/year
  • Total accuracy better than 0.5% FS typical
  • On-chip temperature sensor
  • Linearized digital SPI and analog outputs
  • Small footprint, low profile, only 9 mm in height, and robust package
  • Pressure ports for direct manifold assemblies
  • Highly versatile to fit to application-specific mounting adapters and manifolds
  • Minimized internal volume and manifold mount option allow for fast gas purge time
  • No position sensitivity

Applications

Medical

  • Ventilators
  • Spirometers
  • CPAP
  • Sleep diagnostic equipment
  • Nebulizers
  • Oxygen conservers/concentrators
  • Insufflators/endoscopy

Industrial

  • HVAC
  • VAV
  • Filter monitoring
  • Burner control
  • Fuel cells
  • Gas leak detection
  • Gas metering
  • Fume hood
  • Instrumentation
  • Security systems
White Paper
Trust and Reliability For In-Home Medical Sensors
Solution Guide
Sensors for CPAP Machines
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Leg Style  SMD Pads

  • Sensor Package  8 pin SMD

  • Pressure Sensor Type  Digital Pressure and Altimeter Sensor Modules | Digital Pressure Sensor

  • Pressure Type  Differential

Electrical Characteristics

  • Supply Voltage Range (V) 4.75 – 5.25

Dimensions

  • Product Width  11.2 mm [ .44 in ]

  • Product Length  17.6 mm [ .692 in ]

  • Product Height  8.9 mm [ .35 in ]

Usage Conditions

  • Pressure (bar) 0 | .001 | .002 | .005 | .01 | .012 | .025

  • Pressure (psi) .003 | .007 | .014 | .036 | .072 | .145 | .181 | .362

Operation/Application

  • Output Interface  Analog | SPI

  • Pressure (inH2O) .1 | .2 | .401 | 1 | 2 | 4.01 | 5.02 | 10.04

  • Pressure (mmHG) .187 | .375 | .75 | 1.87 | 3.75 | 9.37 | 18.75

  • Proof Pressure Range  2 bar

  • Pressure Accuracy  ± 0.5% F.S

Packaging Features

  • Sensor Port Configuration  Dual Horizontal | Dual Sideport

Other

  • Sensor Options  No Option | Short Tube

Reference Number

  • TE Internal Number CAT-BLPS0083
