View products below to see detailed pricing

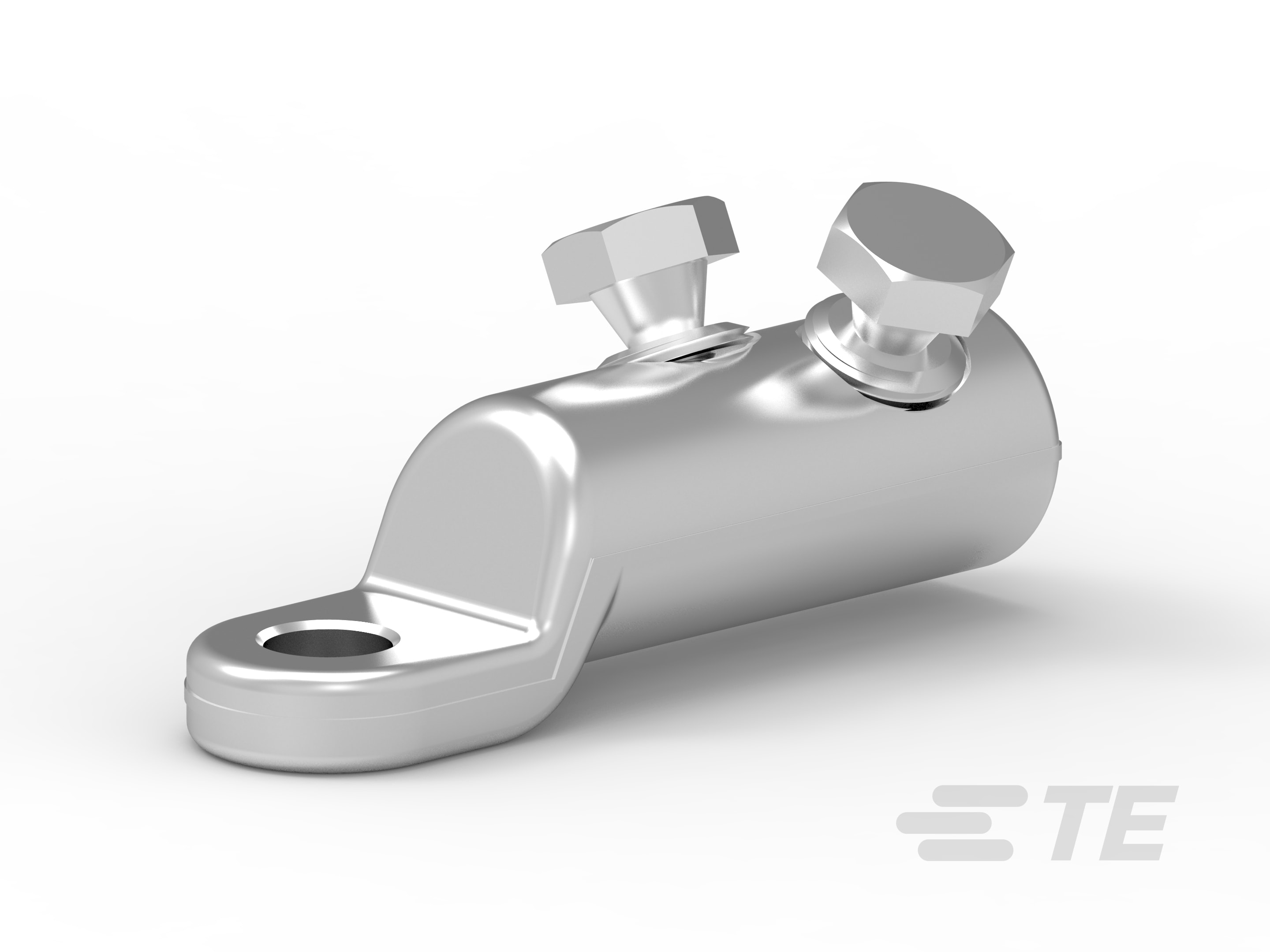

Mechanical Lugs: up to 84 kV

Our BLMT Mechanical Cable Lugs are designed for use in low and medium voltage cables terminations up to 84 kV. Three sizes of mechanical lugs cover conductors ranging from 25 mm² to 400 mm².

More Less

Product Features

Mechanical Connector Technology: Shear Bolt
Underground Network Component Type: Terminal Lug

Available from

Product	TE Part #	Documents	Mechanical Connector Product Availability	Mechanical Connector Voltage Class	Mechanical Connector Conductor Material	Conductor Type	Conductor Range	Mechanical Connector CSA Certified	Mechanical Connector UL Listed	Conductor Cross-Section	Mechanical Connector Material	Number of Contact Bolts	Palm Hole Diameter	Conductor Gauge Type	Indoor Use	Outdoor Use	Blocked
BLMT-95/240-13-CN	2197976-1	Product Drawing	China	≤ 84 kV	Aluminum-Copper	Solid, Stranded	95 – 240 mm²	No	No	95 – 240 mm²	Aluminum	2	13	Metric	-	-	-
BLMT-120/300-17	E26422-000	Product Drawing	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	120 – 300 mm²	-	-	120 – 300 mm²	Aluminum	2	17	-	Yes	Yes	-
BLMT-25/95-13	A23668-000	Product Drawing	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	25 – 95 mm²	-	-	25 – 95 mm²	Aluminum	1	13	-	Yes	Yes	-
BLMT-95/240-13	E44865-000	Product Drawing 3D PDF	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Flexible, Solid, Stranded	95 – 240 mm²	-	-	95 – 240 mm²	Aluminum	2	13	-	Yes	Yes	-
BLMT-35/150-17	D80047-000	Product Drawing	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	35 – 150 mm²	-	-	35 – 150 mm²	Aluminum	1	17	-	Yes	Yes	-
BLMT-120/300-13	F62708-000	Product Drawing 3D PDF	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	120 – 300 mm²	-	-	120 – 300 mm²	Aluminum	2	13	-	Yes	Yes	-
BLMT-35/150-13	F61108-000	Product Drawing	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	35 – 150 mm²	-	-	35 – 150 mm²	Aluminum	1	13	-	Yes	Yes	-
BLMT-95/240-17	E01991-000	Product Drawing	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Flexible, Solid, Stranded	95 – 240 mm²	-	-	95 – 240 mm²	Aluminum	2	17	-	Yes	Yes	-
BLMT-16/95-RS-13	2002443-1	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Stranded	16 – 95 mm²	No	No	16 – 95 mm²	Aluminum	2	13	Metric	Yes	Yes	-
BLMT-50/150-RS-13	2002444-1	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Stranded	50 – 150 mm²	No	No	50 – 150 mm²	Aluminum	2	13	Metric	Yes	Yes	-
BLMT-16/95-RSB-13	2002447-1	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Stranded	16 – 95 mm²	No	No	16 – 95 mm²	Aluminum	2	13	Metric	Yes	Yes	-
BLMT-800-80x40-2D14X40	2062424-1	Product Drawing	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Solid, Stranded	-	-	-	800 mm²	Aluminum	4	2x14	-	Yes	Yes	-
BLMT-800-50X56-D21	2062425-1	Product Drawing	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Solid, Stranded	-	-	-	800 mm²	Aluminum	4	21	-	Yes	Yes	-
BLMT-400 FLEX-15	2107983-1	Product Drawing	Worldwide	≤ 42 kV	Aluminum	Flexible Conductor	400 – 400 mm²	No	No	400 mm²	Aluminum	4	15	Metric	Yes	Yes	-
BLMT-400 FLEX-13	2107983-4	Product Drawing	Worldwide	≤ 42 kV	Aluminum	Flexible Conductor	400 – 400 mm²	No	No	400 mm²	Aluminum	4	13	Metric	Yes	Yes	-
BLMT-25/95-13-CN	2259198-1	Product Drawing	China	≤ 84 kV	Aluminum-Copper	Solid, Stranded	25 – 95 mm²	No	No	25 – 95 mm²	Aluminum	1	13	Metric	-	-	-
BLMT-35/150-13-CN	2259204-1	Product Drawing	China	≤ 84 kV	Aluminum-Copper	Solid, Stranded	35 – 150 mm²	No	No	35 – 150 mm²	Aluminum	1	13	Metric	-	-	-
BLMT-120/300-13-CN	2259216-1	Product Drawing	China	≤ 84 kV	Aluminum-Copper	Solid, Stranded	120 – 300 mm²	No	No	120 – 300 mm²	Aluminum	2	13	Metric	-	-	-
BLMT-240CU-240/400AL-13	2832001-4	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Stranded	240 – 400 mm²	No	No	240 – 400 mm²	Aluminum	1	13	Metric	Yes	Yes	-
BLMT-800/1000-17	2832081-1	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Solid, Stranded	800 – 1000 mm²	No	No	800 – 1000 mm²	Aluminum	4	17	Metric	Yes	Yes	-
BLMT-800/1000-21	2832081-2	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Solid, Stranded	800 – 1000 mm²	No	No	800 – 1000 mm²	Aluminum	4	21	Metric	Yes	Yes	-
BLMT-800/1000-2X13	2832081-3	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Solid, Stranded	800 – 1000 mm²	No	No	800 – 1000 mm²	Aluminum	4	2 x 13	Metric	Yes	Yes	-
BLMT-150/400 MK2-13	2832179-1	Product Drawing 3D PDF	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	150 – 400 mm²	No	No	150 – 400 mm²	Aluminum	3	13	Metric	Yes	Yes	-
BLMT-150/400 MK2-17	2832179-2	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	150 – 400 mm²	No	No	150 – 400 mm²	Aluminum	3	17	Metric	Yes	Yes	-
BLMT-150/400 MK2-2X13	2832179-4	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	150 – 400 mm²	No	No	150 – 400 mm²	Aluminum	3	2 x 13	Metric	Yes	Yes	-
BLMT-150/400 MK2-2X13-50	2832179-6	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	150 – 400 mm²	No	No	150 – 400 mm²	Aluminum	3	2 x 13	Metric	Yes	Yes	-
BLMT-500/630 MK2-13	2832180-1	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Flexible, Solid, Stranded	500 – 630 mm²	No	No	500 – 630 mm²	Aluminum	3	13	Metric	Yes	Yes	-
BLMT-500/630 MK2-17	2832180-2	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Flexible, Solid, Stranded	500 – 630 mm²	No	No	500 – 630 mm²	Aluminum	3	17	Metric	Yes	Yes	-
BLMT-500/630 MK2-21	2832180-3	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Flexible, Solid, Stranded	500 – 630 mm²	No	No	500 – 630 mm²	Aluminum	3	21	Metric	Yes	Yes	-
BLMT-500/630 MK2-2X13	2832180-4	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Flexible, Solid, Stranded	500 – 630 mm²	No	No	500 – 630 mm²	Aluminum	3	2 x 13	Metric	Yes	Yes	-
BLMT-500/630 MK2-2X13-50	2832180-5	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Flexible, Solid, Stranded	500 – 630 mm²	No	No	500 – 630 mm²	Aluminum	3	2 x 13	Metric	Yes	Yes	-
BLMT-50/185S-240R-13/17	2832269-1	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Flexible, Sector, Solid, Stranded	50 – 240 mm²	No	No	50 – 240 mm²	Aluminum	2	13, 17	Metric	Yes	Yes	Yes
BLMT-630/800R1AL-13/17	2832272-1	Product Drawing 3D PDF	Worldwide	≤ 84 kV	Aluminum-Copper	Solid, Stranded	630 – 800 mm²	No	No	630 – 800 mm²	Aluminum Alloy	3	13, 17	Metric	Yes	Yes	Yes
BLMT-16/70S-95R-13/17	2832291-1	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	16 – 95 mm²	No	No	16 – 95 mm²	Aluminum Alloy	1	13, 17	Metric	Yes	Yes	Yes
BLMT-150/400-13/17	2832293-1	Product Drawing	Worldwide	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	150 – 400 mm²	No	No	150/400 mm²	Aluminum Alloy	3	13, 17	Metric	Yes	Yes	Yes
BLMT-25/95-17	D10789-000	Product Drawing	AMERICAS, ANZPAC, ASIA, China, EMEA	≤ 84 kV	Aluminum-Copper	Sector, Solid, Stranded	25 – 95 mm²	-	-	25 – 95 mm²	Aluminum	1	17	-	Yes	Yes	-

Overview

Our BLMT Mechanical Cable Lugs products consist of a tin-plated body, shear bolt heads and inserts for small conductor sizes. Made of special aluminium alloy, these contact bolts are double shear bolt heads with hexagon heads. The bolts are treated with a highly lubricating agent. Contact bolts are irremovable once their heads have been sheared off. The mechanical lug body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes is grooved. Our Mechanical Cable Lugs are suitable for outdoor and indoor applications and are available with different palm hole sizes. The bolted fitting featured herein is developed specifically for use in medium voltage cable accessories up to 42 kV. They may also be used in the 1 kV range. Before using mechanical lugs in cable accessories, confirm that they are suitable for the given application and if necessary consult our experts.

Key Features

Covers a wide application range from 25 mm² to 400 mm²
Compact design & easy to install with standard socket spanner
Can be used with almost every type of conductor and material

Torque-controlled shear head bolts guarantee an excellent electrical contact
Pre-engineered design for perfect fit in medium and high voltage cable accessories up to 84 kV
Can be used with heat shrink and cable accessories

Mechanical Cable Lugs

Improving Grid Connectivity

Underground Power Networks

Our Range of Mechanical Connectors

Discover our Range of Shear Bolt Connectors, Lugs & Splices

FAQ

Frequently Asked Questions

Question: What are TE's Mechanical Cable Lugs used for?

Answer: You can use our Mechanical Cable Lugs to connect aluminium or copper conductors to aluminium and copper bars.

Question: What are Mechanical Cable Lugs made of?

Answer: Our Mechanical Cable Lugs are made of a tin-plated aluminium alloy body and aluminium alloy shear head bolts.

Question: How do you install Mechanical Cable Lugs?

Answer: Our Mechanical Cable Lugs with shear bolt heads can be installed with a standard wrench. The shear bolt heads are pre-engineered to shear at the appropriate torque level, ensuring correct torque is applied to each bolt, thus ensuring an optimal electrical contact between the lugs and the conductor.

Question: What size of conductor do Mechanical Cable Lugs cover?

Answer: Our Mechanical Cable Lugs can be used on conductors from 10 to 1000 mm².

Question: How much voltage can Mechanical Cable Lugs handle?

Answer: The bolted fitting featured herein was developed specifically for use in high and medium voltage cable accessories up to 84 kV. They may also be used in the 1 kV range.

Question: What is the maximum current carrying capacity of the Mechanical Cable Lugs?

Answer: Our Mechanical Cable Lugs are only limited by the conductor maximum current carrying capacity.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Mechanical Connector Technology Shear Bolt
Mechanical Connector Material Aluminum, Aluminum Alloy
Underground Network Component Type Terminal Lug
Product Family BLMT, SIMEL

Configuration Features

Number of Contact Bolts 1, 2, 3, 4
Visual Inspection Yes

Electrical Characteristics

Mechanical Connector Voltage Class (kV) ≤ 42, ≤ 84

Body Features

Mechanical Connector Conductor Material Aluminum, Aluminum-Copper
Conductor Type Flexible, Flexible Conductor, Sector, Solid, Stranded
Blocked Yes

Dimensions

Conductor Range (mm²) 120 – 300, 150 – 400, 16 – 95, 240 – 400, 25 – 95, 35 – 150, 400 – 400, 50 – 150, 50 – 240, 500 – 630, 630 – 800, 800 – 1000, 95 – 240
Conductor Cross-Section (mm²) 120 – 300, 150 – 400, 150/400, 16 – 95, 240 – 400, 25 – 95, 35 – 150, 400, 50 – 150, 50 – 240, 500 – 630, 630 – 800, 800, 800 – 1000, 95 – 240
Palm Hole Diameter 13, 15, 17, 2 x 13, 21, 2x14
Inside Diameter Range (mm) 12.8, 15.8, 19.5, 20, 22.5, 25.5, 33, 40
Inside Diameter Range (in) .62, .77, 1, 1.3, 1.57
Bolt Head Size (Across Flats) (mm) 13, 15, 17, 19, 22, 27
Stud Size 2 x M12, 2 x M16, M12, M14, M16, M20

Operation/Application

Indoor Use Yes
Outdoor Use Yes
Application Type Power Cable Terminations, Both Underground & Above Ground, Termination, Terminations
Free of Lead, Cadmium, Heavy Metals Yes
Energized Installation No

Industry Standards

Mechanical Connector CSA Certified No
Mechanical Connector UL Listed No
REACH Compliance Contains no REACH June 2014 SvHC(s)
Standards Designed to Meet IEC 61238-1 Class A Requirements

Product Availability

Mechanical Connector Product Availability AMERICAS, ANZPAC, ASIA, China, EMEA, Worldwide

Other

Conductor Gauge Type Metric

Reference Number

TE Internal Number CAT-BLMT

Related Materials

Datasheets & Catalog Pages

MECHANICAL SHEAR BOLT TERMINAL LUGS BLMT pdf English
