Fuse Cutout Cover

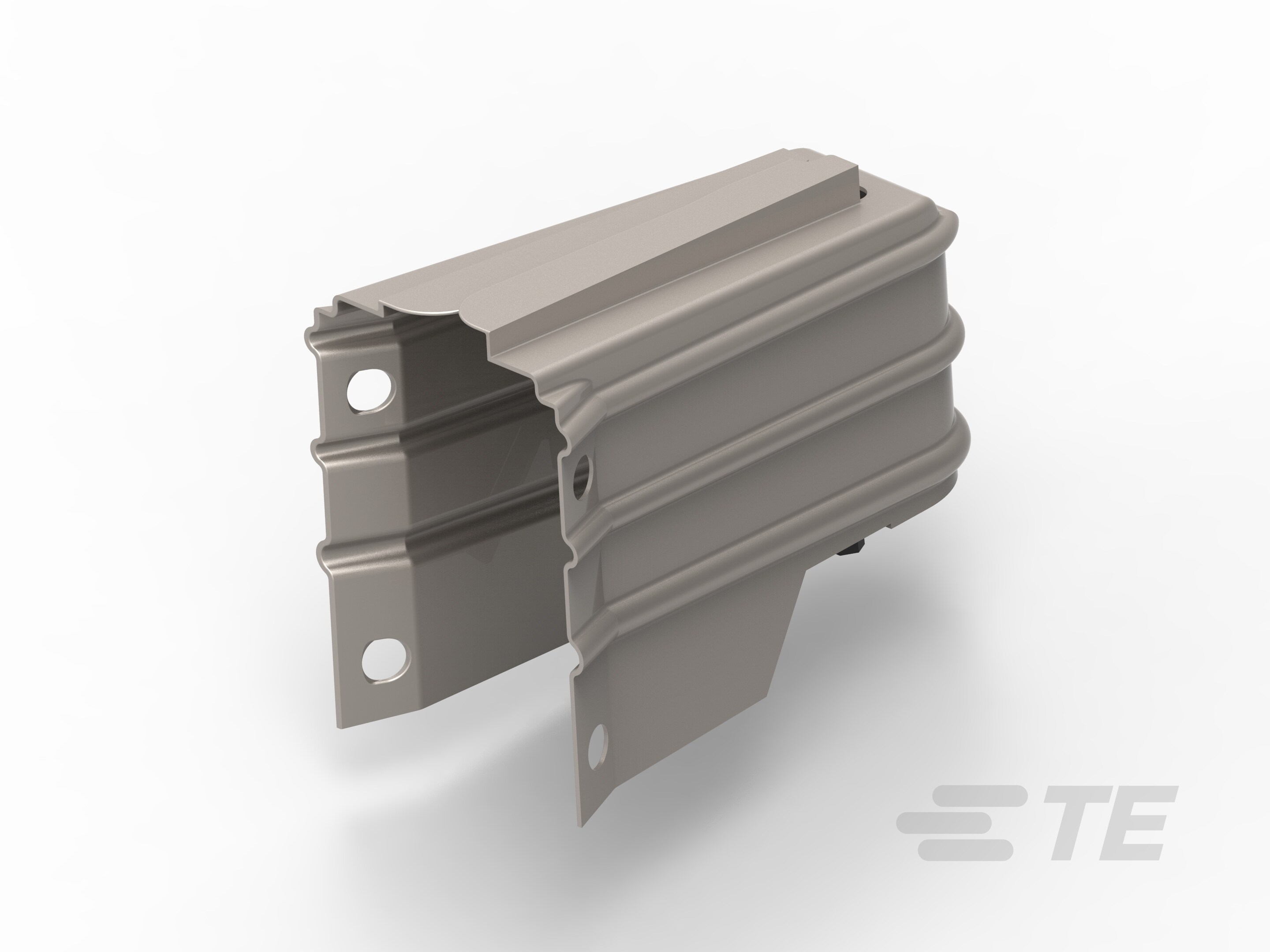

Fuse Cutout Cover-CAT-BCAC-CUTOUT
  • RAYCHEM
TE's Raychem Fuse Cutout Covers protect birds and other animals from causing unwanted outages on polymer and porcelain style fuse cutouts without affecting normal fuse operation.
More Less
Connect with Us

Product Features

  • Insulator Type : ANSI

  • Voltage Class (kV): ≤ 25 | ≤ 35

  • UL Flammability Rating : UL 94V-0

Available from

LADD Inc
Overview
Prevent wildlife-related outages by shielding the back of 100 and 200 AMP fuse cutouts, with safe hot-stick installation

TE's Raychem Fuse Cutout  covers protect birds and animals from causing unwanted outages on polymer and porcelain-style fuse cutouts.

The BCAC cover is a unique design that improves the level of protection by covering the back side of the cutout without affecting its operation. Three different cover styles are available and are designed to fit 100 and 200 AMP versions.

The single-piece BCAC cover is quick and easy to install in the field. The cover is a hot stick installable on energized fuse cutouts. The 'saloon door' design allows easy installation onto the conductors while providing superior holding force.

Superior high-voltage outdoor materials are used in the BCAC cover design. The rugged, non-tracking, UV-resistant polymer ensures long-term performance even in the most extreme environmental conditions.

Key Features

  • Designed for use on polymeric and porcelain fuse cutouts
  • Does not affect normal fuse operation
  • Hotstick installable
  • Rugged, anti-tracking, UV, and weather-resistant material
  • REACH and RoHS Compliant

Applications

FAQ

Frequently Asked Questions

Question: Will the Fuse Cutout Cover affect normal fuse cutout operation?

Answer: No, our fuse cutout cover will not affect normal fuse cutout operation and can be used with a load-breaker tool.



Question: Can the Fuse Cutout Covers be used with polymeric and porcelain-style fuse cutouts?

Answer: Yes, the Fuse Cutout Covers can be used with polymeric and porcelain-style fuse cutouts.



Question: Can the Fuse Cutout Covers be installed on a live system?

Answer: Yes, live installation can be performed using a hot stick.



Question: Are there Fuse Cutout Covers compatible with Fault Tamer Fuses?

Answer: Yes, our BCAC-G-Cutout-FT is compatible with Fault Tamer Fuses.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Installation Technology  Cold Applied

  • Insulator Type  ANSI

Electrical Characteristics

  • Voltage Class (kV) ≤ 25 | ≤ 35

Body Features

  • Primary Product Color  Gray

  • Insulator Material  Polymer | Porcelain

Dimensions

  • Insulator Core Diameter Range (mm) 0 – 20 | 0 – 67 | 0 – 72

  • Insulator Core Diameter Range (in) 0 – 2.63 | 0 – 2.95 | 0 – 2.85 | 0 – .8

Usage Conditions

  • Operating Temperature Range  0 – 105 °C [ 32 – 221 °F ]

Operation/Application

  • Compatible Equipment  Cutout Fuse

  • Power Component Application Type  Distribution

Industry Standards

  • UL Flammability Rating  UL 94V-0
