Two-Piece Poke-In Headers

Two-Piece Poke-In Headers-CAT-B8519-T273A
  • Buchanan WireMate

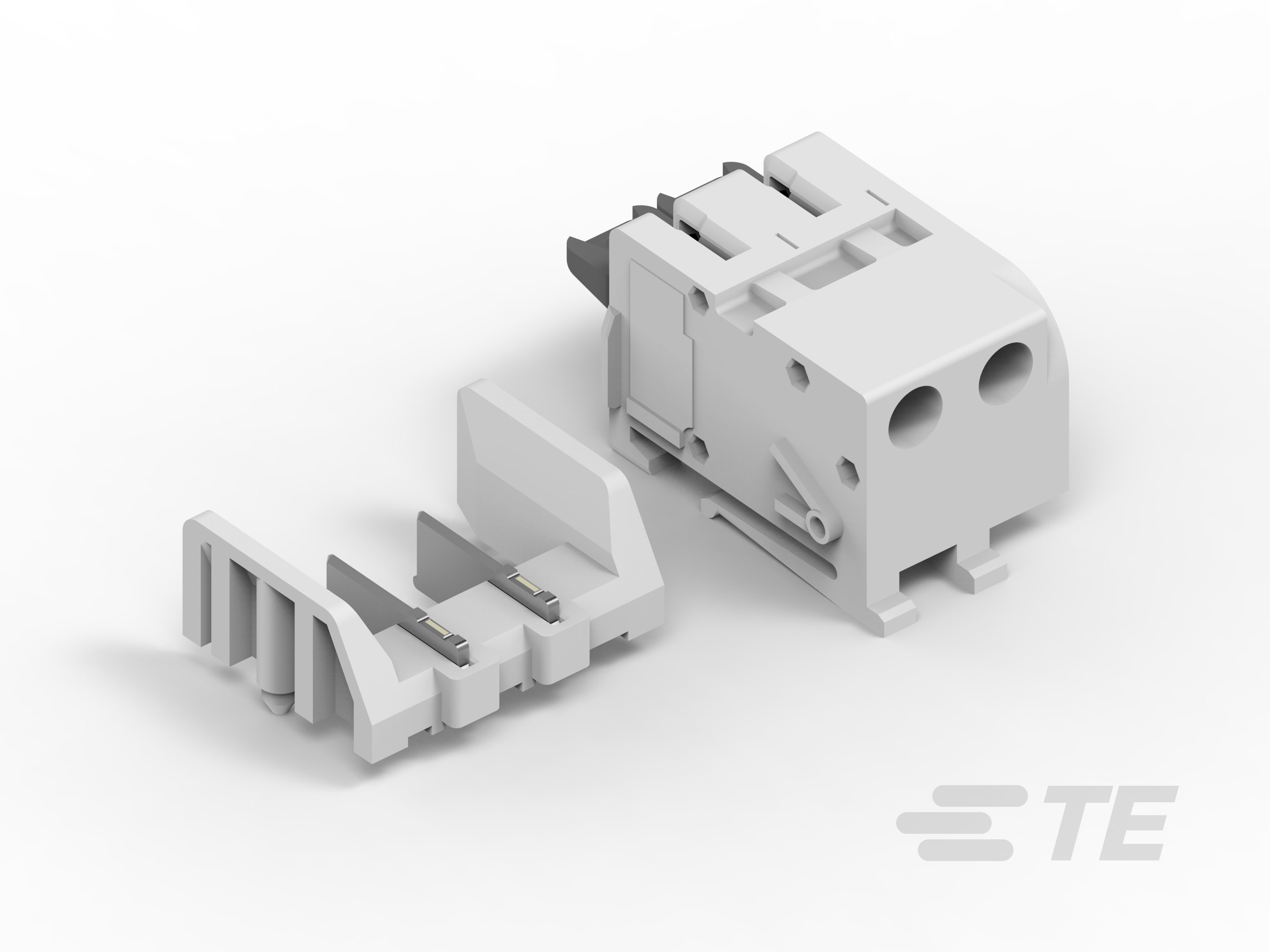

Surface mounted blade headers, designed to mate with two-piece poke-in connectors. Features include polarization pegs to avoid misplacing on PCB, two centerline options, and anti-fretting lubrication to avoid corrosion.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • Connector System : Board-to-Component

  • Number of Positions : 2 | 3 | 4 | 5 | 6 | 7 | 8

  • Number of Rows : 1

  • Centerline (Pitch) (mm): 5 | 8

  • Centerline (Pitch) (in): .19 | .31

Available from

LADD Inc
Overview

Features

  • Installation time-saving with poke-in termination verses screw style termination
  • Simple lever design for release of one wire at a time
  • Provides flat connector surface reserved for wire marking (color options available)
  • Allows easy wiring for home installation with tool-less poke-in wire termination
  • Achieve a clear point of entry for wire insertion
  • Improve installation experience with three mating directions


Applications

  • Thermostats
  • Smoke detectors
  • Control panels
  • Environmental monitors

  1. Two Piece Poke-In Series (English)

BUCHANAN WireMate two piece poke-in series of products provide designers a three directional solution for wall mounting

wiremate
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Board-to-Component

  • Header Type  Unshrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • Number of Positions  2 | 3 | 4 | 5 | 6 | 7 | 8

  • Number of Rows  1

  • PCB Mount Orientation  Vertical

Electrical Characteristics

  • Voltage Rating (Max) (VAC) 250

Body Features

  • Primary Product Color  Natural

Contact Features

  • Contact Layout  Inline

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Tin (Sn)

  • Contact Type  Tab

  • Contact Current Rating (Max) (A) 5

  • PCB Contact Termination Area Plating Material  Tin

Termination Features

  • Termination Method to PCB  Surface Mount

Mechanical Attachment

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

  • PCB Mount Alignment  With

  • PCB Mount Retention  Without

Housing Features

  • Centerline (Pitch) (mm) 5 | 8

  • Centerline (Pitch) (in) .19 | .31

  • Housing Material  LCP GF

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Circuit Application  Power

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  350

  • Packaging Method  Reel

Reference Number

  • TE Internal Number CAT-B8519-T273A
