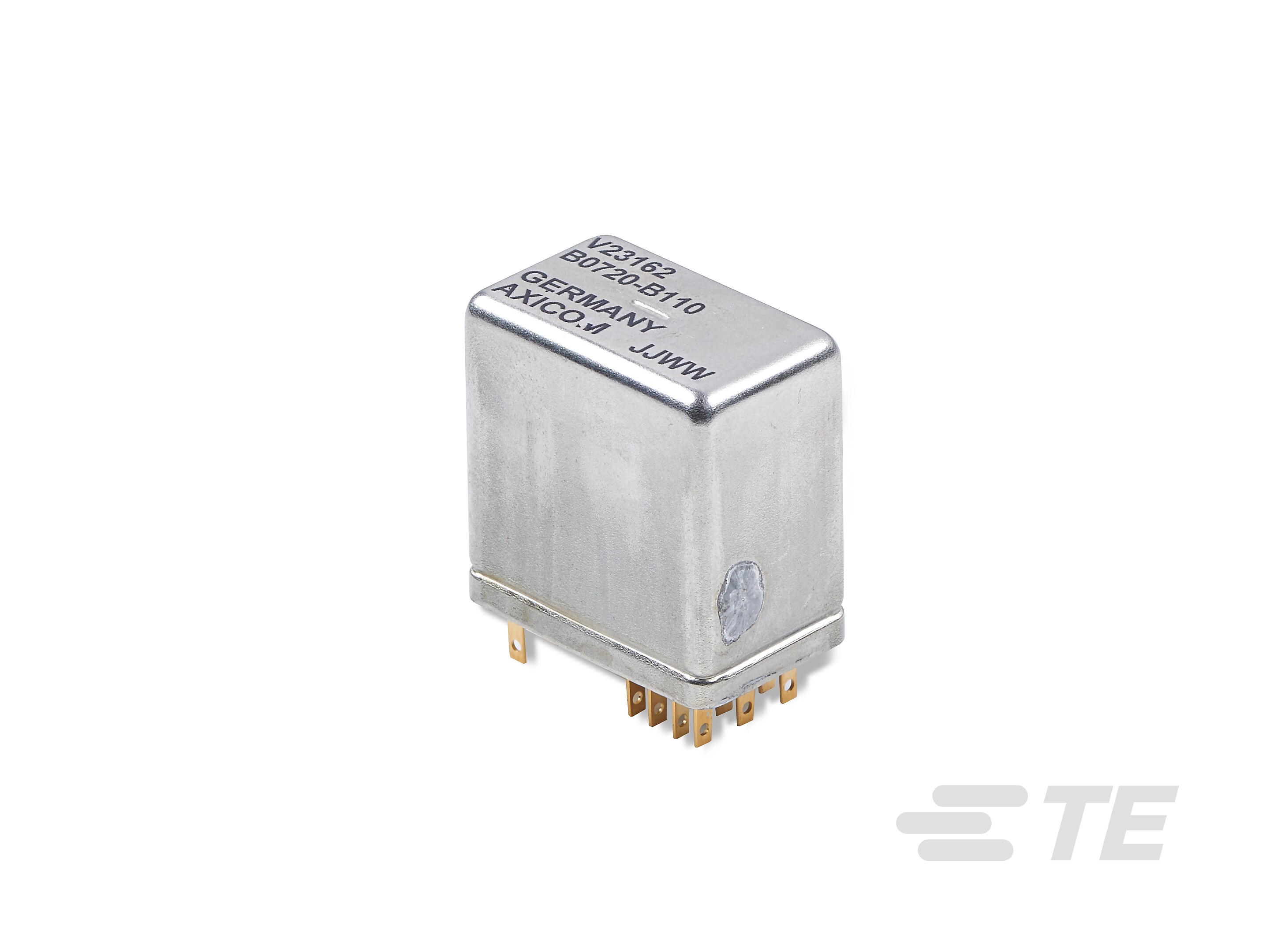

Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Contact Arrangement  1 Form A (NO) + 1 Form B (NC), 1 Form C (CO), 2 Form A (NO), 2 Form C (CO), 4 Form C (CO), 6 Form A (NO), 6 Form C (CO)

  • Contact Number of Poles  2, 4, 6

  • Contact Special Features  Bifurcated/Twin Contacts, Gold-Plated Terminals, Single Contact

Electrical Characteristics

  • Coil Resistance (Ω) 2, 28, 58, 110, 150, 220, 325, 550, 700, 890, 1700, 3200, 4700, 7600, 15000, 20900

  • Contact Limiting Breaking Current (A) .2, 2, 5

  • Input Voltage (VAC) 30, 125, 250

  • Input Voltage (VDC) 36, 150, 250

  • Contact Voltage Rating (VAC) 30, 36, 125

  • Contact Voltage Rating (VDC) 150, 36

  • Coil Power Rating DC (mW) 66, 140, 200, 272, 400, 450, 602, 620, 647, 654, 682, 692, 727, 747, 766, 806, 845, 893, 948, 1008

  • Coil Voltage Rating (VAC) 5, 12, 24, 48, 60, 110

  • Coil Voltage Rating (VDC) 5, 6, 12, 24, 48, 60, 110, 125

  • Contact Current Rating (A) .2, 1, 1.25, 2, 3, 5

  • Contact Switching Voltage (Max) (VAC) 30, 36, 125

  • Contact Switching Voltage (Max) (VDC) 36, 150

  • Power Consumption (mW) 800

  • Insulation Initial Resistance (MΩ) 1000, 1000000, 10000000

  • Insulation Initial Dielectric Between Contacts & Coil (Vrms) 1000, 1500

  • Insulation Initial Dielectric Between Adjacent Contacts (Vrms) 1000, 500

  • Contact Limiting Continuous Current (A) 2, 5

  • Contact Limiting Short-Time Current (A) .2, 2, 5

  • Contact Limiting Making Current (A) .2, 2, 5

  • Insulation Initial Dielectric Between Open Contacts (Vrms) 1000, 500

Signal Characteristics

  • Isolation (HF Parameter)  -14.2dB @ 900MHz, -18dB @ 900MHz, -20.7dB @ 900MHz, -30dB @ 100MHz, -31.8dB @ 100MHz, -39dB @ 100MHz

  • Insertion Loss (HF Parameter)  -.02dB @ 100MHz, -.12dB @ 100MHz, -.27dB @ 900MHz, -.97dB @ 900MHz, -1.9dB @ 900MHz

Body Features

  • Product Weight (g) 30, 35

  • Product Weight (oz) 1.058

Contact Features

  • Contact Material  Ag, Gold Flashed, AgNi+Au, Gold F, Nickel, Nickel-Palladium, Nickel-Titanium

  • Contact Plating Material  AgNi Alloy, Gold Flash, Gold

Termination Features

  • Relay Connection Type  Plug-In

Mechanical Attachment

  • Product Mount Type  Socket

  • Product Mounting Feature Type  Mounting Studs

Dimensions

  • Product Height  30 mm [ 1.18 in ]

  • Product Length (mm) 24, 30

  • Product Length (in) .944, 1.18

  • Product Width  19 mm [ .748 in ]

Usage Conditions

  • Operating Temperature Range (°C) -40 – 70

  • Environmental Ambient Temperature (Max)  70 °C [ 158 °F ]

Operation/Application

  • Performance Type  Standard

  • Coil Magnetic System  Monostable

  • Actuating System  DC

Packaging Features

  • Packaging Method  Box & Carton

Other

  • Contact Current Class (A) 0 – 2, 2 – 5

  • Width Class (Mechanical) (mm) 12 – 16, 16 – 20

  • Coil Power Rating Class (mW) 600 – 800, 800 – 1000

  • Height Class (Mechanical) (mm) 25 – 30

  • Environmental Ambient Temperature Class (°C) 50 – 70

  • Length Class (Mechanical) (mm) 20 – 25, 25 – 30

Reference Number

  • TE Internal Number CAT-AX41-C8422B
