Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Relay & Contactor Type

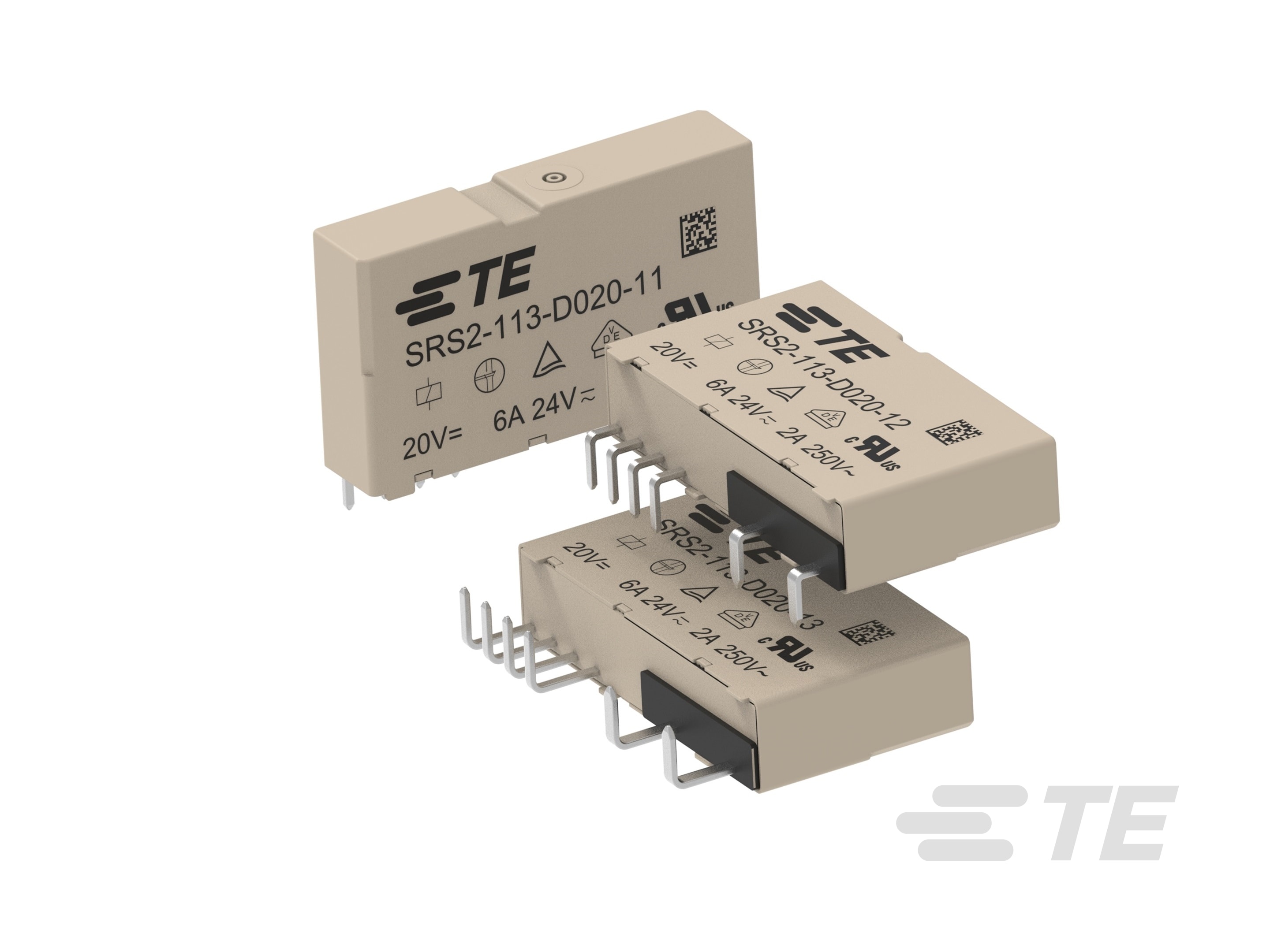

Force-Guided Relay
Configuration Features
-
Coil Special Features
None
-
Contact Number of Poles
2
-
Contact Arrangement
1A (NO) + 1B (NC)
Electrical Characteristics
-
Coil Resistance (Ω)
45 – 55 | 87 – 107 | 527 – 644 | 1386 – 1694 | 1736 – 2122 | 2520 – 3080
-
Contact Limiting Continuous Current (A)
6
-
Contact Switching Load (Min)
3mA @ 12VDC
-
Insulation Initial Dielectric Between Open Contacts (Vrms)
500
-
Coil Current (A)
.009 | .01 | .012 | .019 | .046 | .066
-
Contact Switching Voltage (Max) (VAC)
250
-
Contact Limiting Short-Time Current (A)
6
-
Contact Limiting Breaking Current (A)
2
-
Contact Current Rating (A)
2 | 6
-
Coil Voltage Rating (VDC)
3.3 | 4.5 | 11 | 18 | 20 | 24
-
Contact Voltage Rating (VAC)
24 | 250
-
Contact Voltage Rating (VDC)
24
-
Coil Power Rating DC (W)
.2
-
Insulation Initial Dielectric Between Contacts & Coil (Vrms)
3000
Body Features
-
Primary Product Color
Natural
-
Product Weight
8 g [ .282 oz ]
-
Enclosure Type
Flux Resistant Automatic Solder Capable & Washable
Termination Features
-
Main Termination & Connection Type
Solder Pins
-
Coil Termination & Connection Type
Solder Pins
Mechanical Attachment
-
Product Mounting Feature Type
PCB Pins
-
Product Mount Type
Board Mount
Dimensions
-
Product Width (mm)
6.2 | 17.65 | 20.24
-
Product Width (in)
.244 | .695 | .797
-
Product Height (mm)
6.2 | 15.7
-
Product Height (in)
.244 | .618
-
Insulation Creepage Between Contact & Coil
6 mm [ .236 in ]
-
Product Length
28.2 mm [ 1.11 in ]
-
Insulation Clearance Between Contact & Coil
6 mm [ .236 in ]
Usage Conditions
-
Operating Temperature Range
-40 – 80 °C [ -40 – 176 °F ]
-
Environmental Category of Protection
RTIII
-
Environmental Ambient Temperature (Max)
80 °C [ 176 °F ]
Operation/Application
-
Solder Process
Wave Solder Capable
-
Coil Magnetic System
Monostable
-
Current Type
DC
Product Availability
-
Product Availability
Worldwide
Packaging Features
-
Packaging Method
Box & Tube
Other
-
Contact Current Class (A)
>5 – ≤10 | ≤2
-
Coil Power Rating Class (W)
>.15 – ≤.2
-
Height Class (Mechanical) (mm)
>14 – ≤16 | ≤7
-
Height Class (Mechanical) (in)
>.551 – ≤.63 | ≤.276
-
Length Class (Mechanical)
>22 – ≤33 mm [ >.866 – ≤1.299 in ]
-
Width Class (Mechanical) (mm)
>16 – ≤22 | ≤7
-
Width Class (Mechanical) (in)
>.63 – ≤.866 | ≤.276
Reference Number
-
TE Internal Number
CAT-AV4-S2113
