Overview

9

Maximum Contacts Per Second

4

Up to 4 Insertion Heads on Automatic Changer

<10

Changeover with Conversion Kit in Less Than 10 Minutes

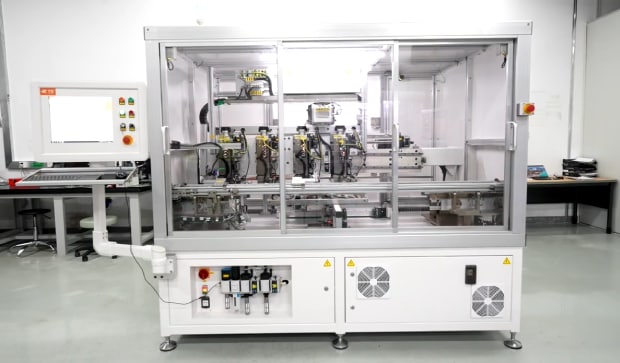

  1. P-300C Pin Insertion Machine Video

Watch this video to take a closer look at the P-300C pin insertion machine and learn how this China's independently designed machine can meet the needs of your local supply chain with premium production quality guaranteed.

Features and Benefits

  • Board capacity up to 420 x 360mm [16.5" x 14.2”]
  • Up to four insertion heads on automatic changer
  • Tool conversion kit for changeover in less than 10 minutes (compatible with P100/P300/P360/P550)
  • Classic PLC and IPC control system, control system can be easily configured and modified
  • Freely programmable insertion angle
  • Insertion rate up to three cycles/second (up to three contacts per stroke)
  • Single, double and triple pin insertion
  • Corresponding anvil changer is available for huge variety of supporting geometries
  • Real-time force monitoring for 100% quality assurance (maximum force and force vs. distance monitoring)
  • Maximum Insertion Force 900N (more possible on request)
  • Vision system for PCB alignment accuracy
  • Servo Motors for XY
  • Fully-automated, inline capable
  • Touch screen provides simple programming and an intuitive operator interface
  • PCB thickness tolerance compensation
  • Customized MES and data collection that allows flexible to meet customer requirement for data traceability​
