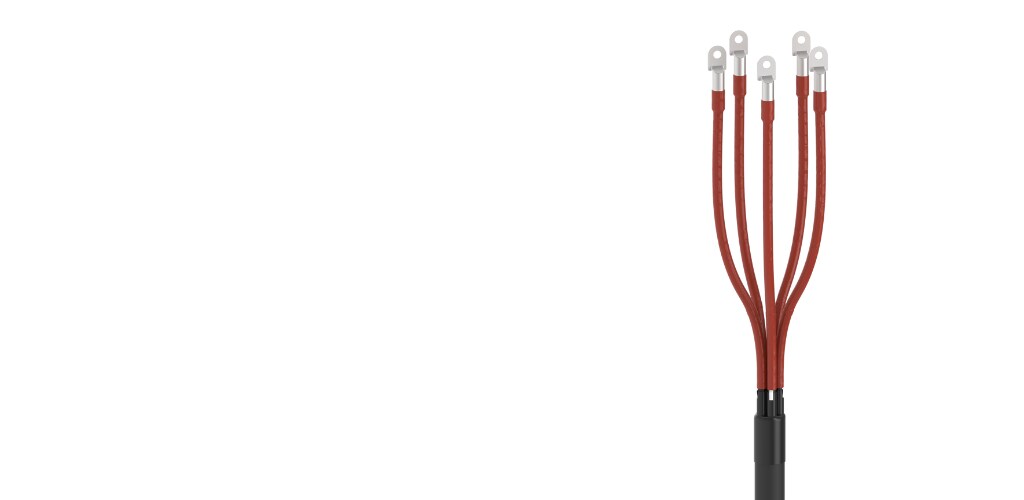

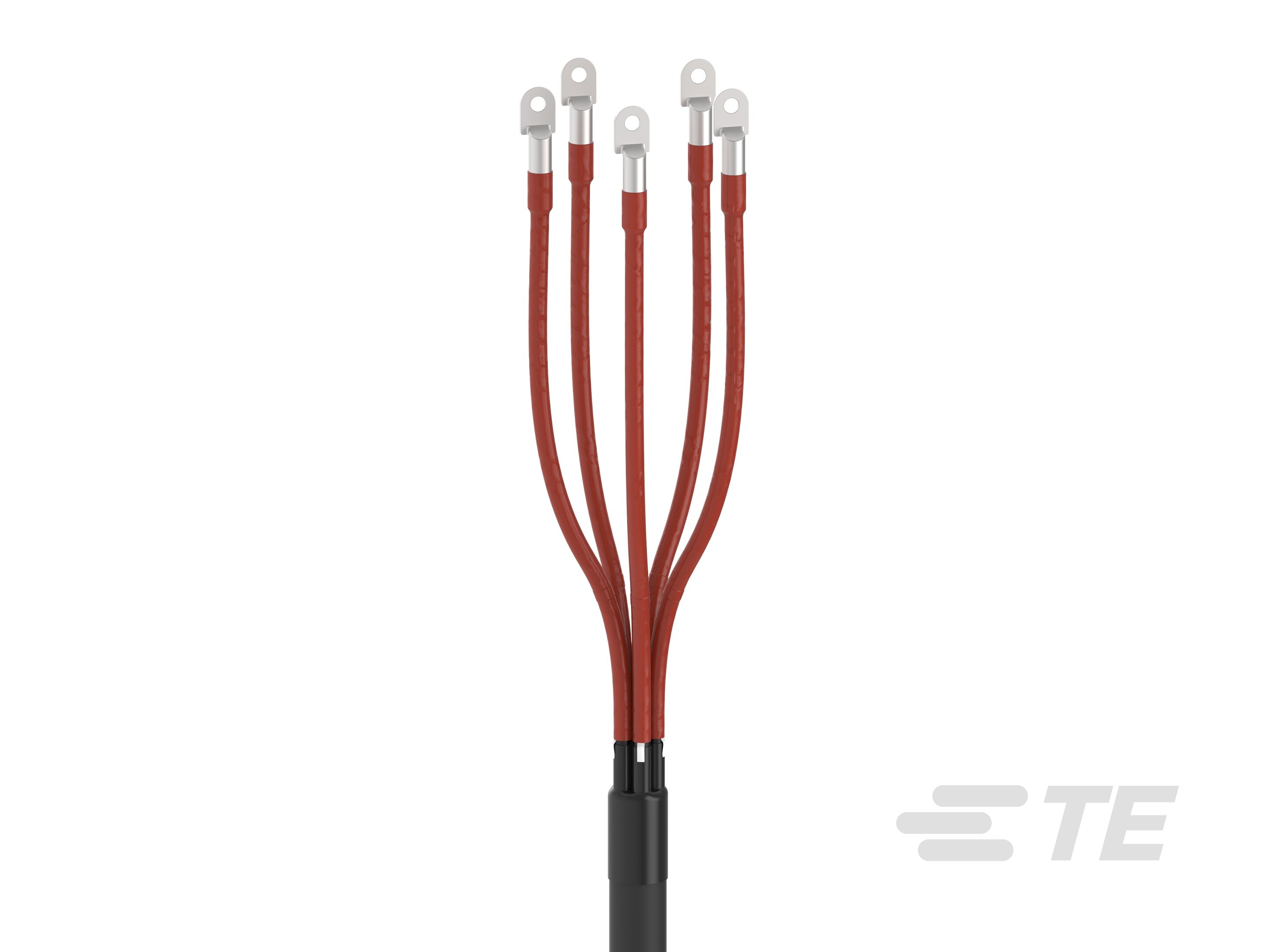

Low Heat Shrink Termination, Up to 3kV
Product Features
-
Installation Technology : Heat Shrink
-
Voltage Class (kV): ≤ 3
-
Cable Shield Style : AL-Tape
-
Number of Cores : 1 – 5
-
Compatible Insulation Diameter Range (mm): 14 – 36, 23 – 60
-
Compatible Insulation Diameter Range (in): .551 – 1.417, .905 – 2.362
Provide excellent electrical performance and long service life, thanks to heat shrink high voltage insulating and non-tracking tubing HVOT.
Raychem APKT 1.8/3 kV heat shrink joint is suitable for single to 5 cores of unscreened insulating solar cable, up to 3 kV. This highly shrinkable tubing only uses 2 sizes to cover a full regular cable size range, insulation OD from 14 mm to 60 mm. Its high-sealing performance mastic S1061, offers reliable protection for solar cable connections.
Our APKT can be easily installed in the field using a gas torch or hot air. The main body used in APKT is high performance HVOT tubing, with a continuous operating temperature rating up to 105°C (221°F). This provides excellent field-proven mechanical and electrical performance. Raychem APKT heat shrink joint is tested in accordance with JB/T 7829-2006, ensuring decades of operating life.
Key Features
- Simplified product type selection
- Excellent in field electrical and mechanical performance
- Continuous operating temperature rating up to 105°C (221°F)
- High shrink ratio covering a wide application range from cable insulation outer diameter (OD) 14 mm to 60 mm
Frequently Asked Questions
Question: What is the application range for Raychem APKT heat shrink terminations 1.8/3kV?
Answer: Our Raychem APKT heat shrink terminations can be used for solar cable outer diameters from 14 mm to 60 mm.
Question: How many Rachem APKT heat shrink joint sizes are available?
Answer: We provide 2 sizes to cover the full range of regular cable diameters.
Question: How many cable cores can Raychem APKT heat shrink terminations 1.8/3kV be used for?
Answer: Our Raychem APKT heat shrink terminations are suitable for 1 to 5 cores of regular cables.
Question: Are special tools required to install Raychem APKT heat shrink terminations?
Answer: No, they can be easily installed using hot air or a torch.
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Shelf Life Unlimited
-
Installation Technology Heat Shrink
-
Cable Shield Style AL-Tape
-
Termination Length (mm) 500
Configuration Features
-
Number of Cores 1 – 5
Electrical Characteristics
-
Voltage Class (kV) ≤ 3
Body Features
-
Insulation Material XLPE/EPR
-
Number of Sheds 0
Housing Features
-
Armoring Material Steel Tape
Dimensions
-
Compatible Insulation Diameter Range (mm) 14 – 36, 23 – 60
-
Compatible Insulation Diameter Range (in) .551 – 1.417, .905 – 2.362
Usage Conditions
-
Operating Temperature Range (°C) -35 – 105
Operation/Application
-
Power Component Application Type Indoor, Outdoor
Industry Standards
-
Compatible With Approved Standards Products JB/T 7829-2006
-
Pollution Level (IEC 60815) IV
Packaging Features
-
Packaging Quantity 6
Reference Number
-
TE Internal Number CAT-APKT
