View products below to see detailed pricing

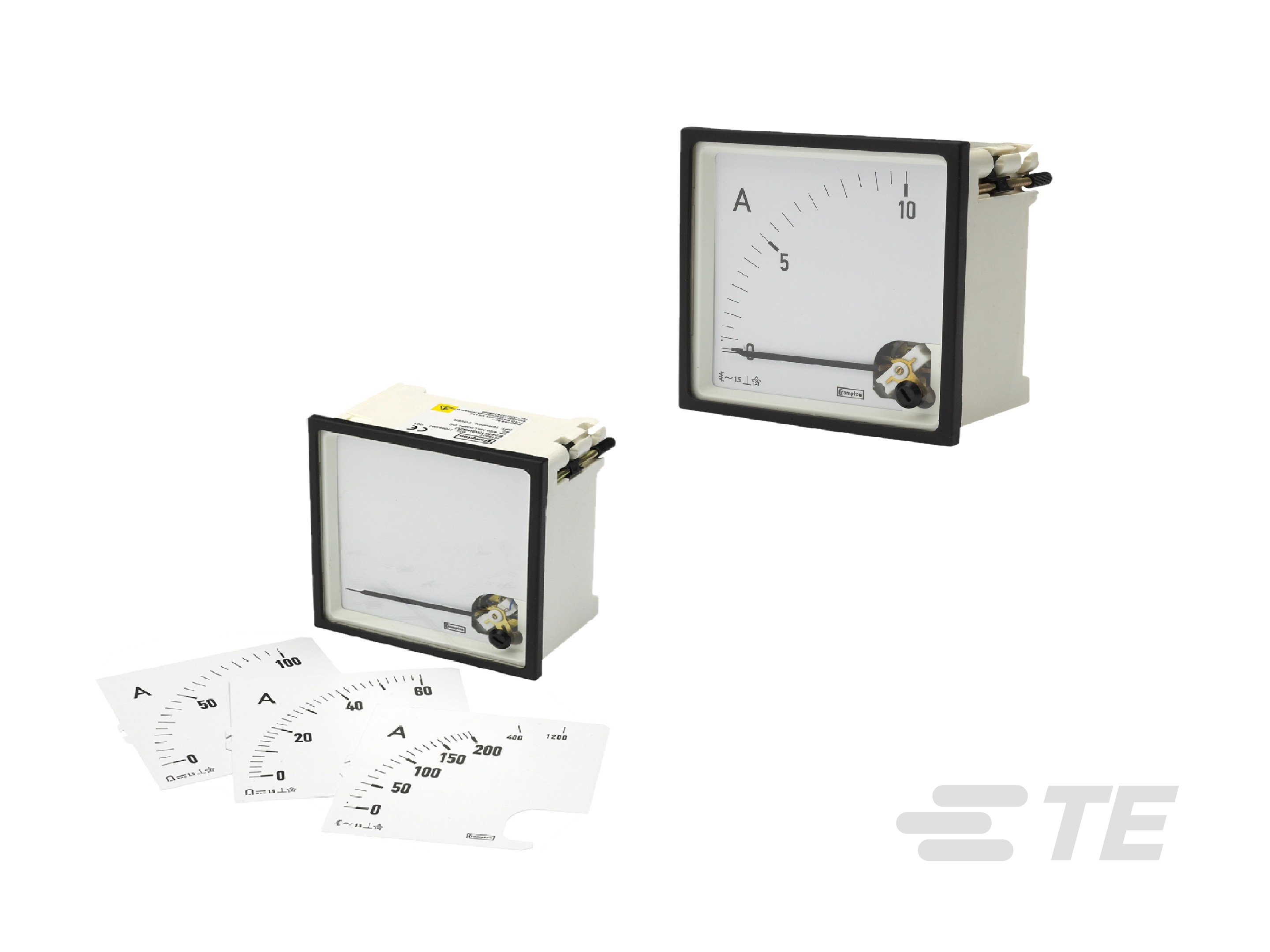

CI-E244

CROMPTON INSTRUMENTS

Crompton 007

More Less

Connect with Us

Product Features

Power Meter Function : AC Ammeter | AC Voltage | DC Ammeter | DC Voltage | Frequency
Scale (mV): 0/60 | 0/75
Scale (V): 0/15 | 0/150 | 0/30 | 0/40 | 0/500 | 0/600 | 200/250
Scale (mA): 0/1 | 0/20 | 4/20
Scale (A): 0/10 | 0/15/30 | 0/200/400 | 0/400 | 0/750/1500 | 0/5 | 0/400/800 | 0/800/1600 | 0/1000/2000 | 0/150 | 0/100 | 0/300/600 | 0/100/200 | 0/40/80 | 0/600/1200 | 0/60 | 0/25 | 0/80 | 0/40 | 0/250 | 0/5/10 | 0/25/50 | 0/500/1000 | 0/200 | 0/60/120 | 0/250/500 | 0/10/20 | 0/150/300

Available from

Product	TE Part #	Documents	Power Meter Function	Scale	Scale	Scale	Scale	Measured Scale	Case Size	Product Weight	EU ELV Compliance
CI-E244-01VGNDND	A27988-000	Product Drawing	DC Voltage	-	0/15 V	-	0/25 A	-	96 mm	.3 kg	-
CI-E244-02AGLSPKC7	F44204-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/60/120 A	-	-	72 mm	.25 kg	-
CI-E244-01AGFASJ	F07581-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/400 A	-	-	96 mm	.25 kg	-
CI-E244-01AGFAPD	C31301-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/60 A	-	-	96 mm	.25 kg	-
CI-E244-01AGHFNJ	F64276-000	Product Drawing	DC Ammeter	-	-	-	-	0/20 mA	-	-	-	-	96 mm	.25 kg	-
CI-E244-026AGNJNJC7	A07949-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/100/200 A	-	-	96 mm	.25 kg	-
CI-E244-01AGHFNW	A17094-000	Product Drawing	DC Ammeter	-	-	-	-	0/20 mA	-	-	-	-	96 mm	.25 kg	-
CI-E244-01AGMTMT	C87238-000	Product Drawing	DC Ammeter	-	-	0/30 V	-	-	0/10 A	-	-	96 mm	.25 kg	-
CI-E244-01AGFAPZ	E37485-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/150 A	-	-	96 mm	.25 kg	-
CI-E244-01AGEJPZ	A73662-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/1000/2000 A	-	-	96 mm	.25 kg	-
CI-E244-01AGHFPK	E04186-000	Product Drawing	DC Ammeter	-	-	0/40 V	0/20 mA	-	-	-	-	96 mm	.25 kg	-
CI-E244-01AGFAIP	A47997-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	-	-	-	-	96 mm	.25 kg	-
CI-E244-026A-G-LS-RX-C7	CK0923-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/300/600 A	-	-	72 mm	.25 kg	-
CI-E244-01A-G-EJ-PD	F37375-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/750/1500 A	-	-	96 mm	.25 kg	-
CI-E244-01A-G-EJ-RS	F10007-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/10/20 A	-	-	96 mm	.25 kg	-
CI-E244-01A-G-EJ-NW	C96542-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/600/1200 A	-	-	96 mm	.25 kg	-
CI-E244-026A-G-LS-PZ-C7	A78393-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/200/400 A	-	-	72 mm	.25 kg	-
CI-E244-01AGFASF	E04195-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/250 A	-	-	96 mm	.25 kg	-
CI-E244-01AGFAB2	C97225-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/40/80 A	-	-	96 mm	.25 kg	-
CI-E244-01AGFANL	A07958-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/40 A	-	-	96 mm	.25 kg	-
CI-E244-01AGHFND	D77334-000	Product Drawing	DC Ammeter	-	-	-	-	0/20 mA	-	-	-	-	96 mm	.25 kg	-
CI-E244-01AGFAPK	F84211-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/80 A	-	-	96 mm	.25 kg	-
CI-E244-02AGMTMT-C7	060848-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/600/1200 A	-	-	72 mm	.2 kg	-
CI-E244-01AGEJSC	D24022-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/15/30 A	-	-	96 mm	.25 kg	-
CI-E244-026A-G-LS-NW-C7	CL0622-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/100/200 A	-	-	72 mm	.3 kg	-
CI-E244-026A-G-LS-SC-C7	CK0924-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/400/800 A	-	-	72 mm	.25 kg	-
CI-E244-026A-G-ND-ND-C7	CJ7518-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/60/120 A	-	-	96 mm	.28 kg	-
CI-E24441SGRNAJAJ	E05045-000	Product Drawing	Frequency	-	-	200/250 V	-	-	0/400/800 A	-	-	96 mm	.3 kg	-
CI-E244-01AGFAPQ	E48379-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/100 A	-	-	96 mm	.25 kg	-
CI-E244-02V-G-PZ-PZ-C7	F55593-000	Product Drawing	AC Voltage	-	-	0/150 V	-	-	0/150/300 A	-	-	96 mm	.25 kg	-
CI-E244-01A-G-EJ-NP	C56290-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/500/1000 A	-	-	96 mm	.25 kg	-
CI-E244-02VGSJSJC7	C67219-000	Product Drawing	AC Voltage	-	-	0/600 V	-	-	0/300/600 A	-	-	72 mm	.25 kg	-
CI-E244-02VGSFSFC7	D54064-000	Product Drawing	AC Voltage	-	-	0/500 V	-	-	0/250/500 A	-	-	96 mm	.25 kg	-
CI-E244-01AGEJPK	A87972-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/800/1600 A	-	-	96 mm	.25 kg	-
CI-E244-01AGFARL	C63768-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/200 A	-	-	96 mm	.25 kg	-
CI-E244-02A-G-LS-XX-C7	C50994-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/5 A	-	-	72 mm	.28 kg	-
CI-E244-022A-G-LS-XX-C7	A06161-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/5/10 A	-	-	72 mm	.45 kg	-
CI-E244-026A-G-LS-RS-C7	C69429-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/250/500 A	-	-	72 mm	.25 kg	-
CI-E244-02AGNPNP-C7	810220-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/1000/2000 A	-	-	96 mm	.25 kg	-
CI-E244-02AGNDND-C7	852292-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/750/1500 A	-	-	96 mm	.25 kg	-
CI-E244-026A-G-LS-PK-C7	CL0623-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/150/300 A	-	-	72 mm	.3 kg	-
CI-E244-01R-G-HG-ZU	A45430-000	Product Drawing	DC Ammeter	-	-	-	-	4/20 mA	-	-	-	-	48 mm	.3 kg	-
CI-E244-01A-G-EF-XX	CG6103-000	Product Drawing	DC Ammeter	0/60 mV	-	-	-	-	-	-	-	-	48 mm	.3 kg	-
CI-E244-01AGFAA4	F57523-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	0/25/50 A	-	-	96 mm	.25 kg	-
CI-E244-01V-G-NL-NL	D62307-000	Product Drawing	DC Voltage	-	-	200/250 V	-	-	0/40 A	-	-	96 mm	.45 kg	-
CI-E244-01AGHFIP	C23756-000	Product Drawing	DC Ammeter	-	-	0/40 V	0/20 mA	-	-	-	-	96 mm	.25 kg	-
CI-E244-01A-G-EJ-RL	A58946-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	-	-	0/1.2/2.4 kA	96 mm	.25 kg	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Scale (mV) 0/60 | 0/75
Scale (V) 0/15 | 0/150 | 0/30 | 0/40 | 0/500 | 0/600 | 200/250
Scale (mA) 0/1 | 0/20 | 4/20
Scale (A) 0/10 | 0/15/30 | 0/200/400 | 0/400 | 0/750/1500 | 0/5 | 0/400/800 | 0/800/1600 | 0/1000/2000 | 0/150 | 0/100 | 0/300/600 | 0/100/200 | 0/40/80 | 0/600/1200 | 0/60 | 0/25 | 0/80 | 0/40 | 0/250 | 0/5/10 | 0/25/50 | 0/500/1000 | 0/200 | 0/60/120 | 0/250/500 | 0/10/20 | 0/150/300
Measured Scale (kA) 0/1.2/2.4
Scale Shape Short Scale (90)
Accuracy (%) ±1.5

Configuration Features

Wiring Configuration Single Phase
Panel Cutout Size 64 mm [ 2.52 in ]

Electrical Characteristics

Power Meter Function AC Ammeter | AC Voltage | DC Ammeter | DC Voltage | Frequency

Body Features

Product Weight (kg) .2 | .25 | .28 | .3 | .45
Product Weight (lb) .661

Mechanical Attachment

Product Mount Type DIN Panel Mount

Dimensions

Case Size (mm) 48 | 72 | 96
Case Size (in) 1.89 | 2.84 | 3.78
Product Height 96 mm [ 3.78 in ]
Product Depth 64 mm [ 2.52 in ]
Product Width 96 mm [ 3.78 in ]

Operation/Application

Operating Frequency Range (Hz) 50 – 60

Industry Standards

Compatible With Agency/Standards Products UL
