View products below to see detailed pricing

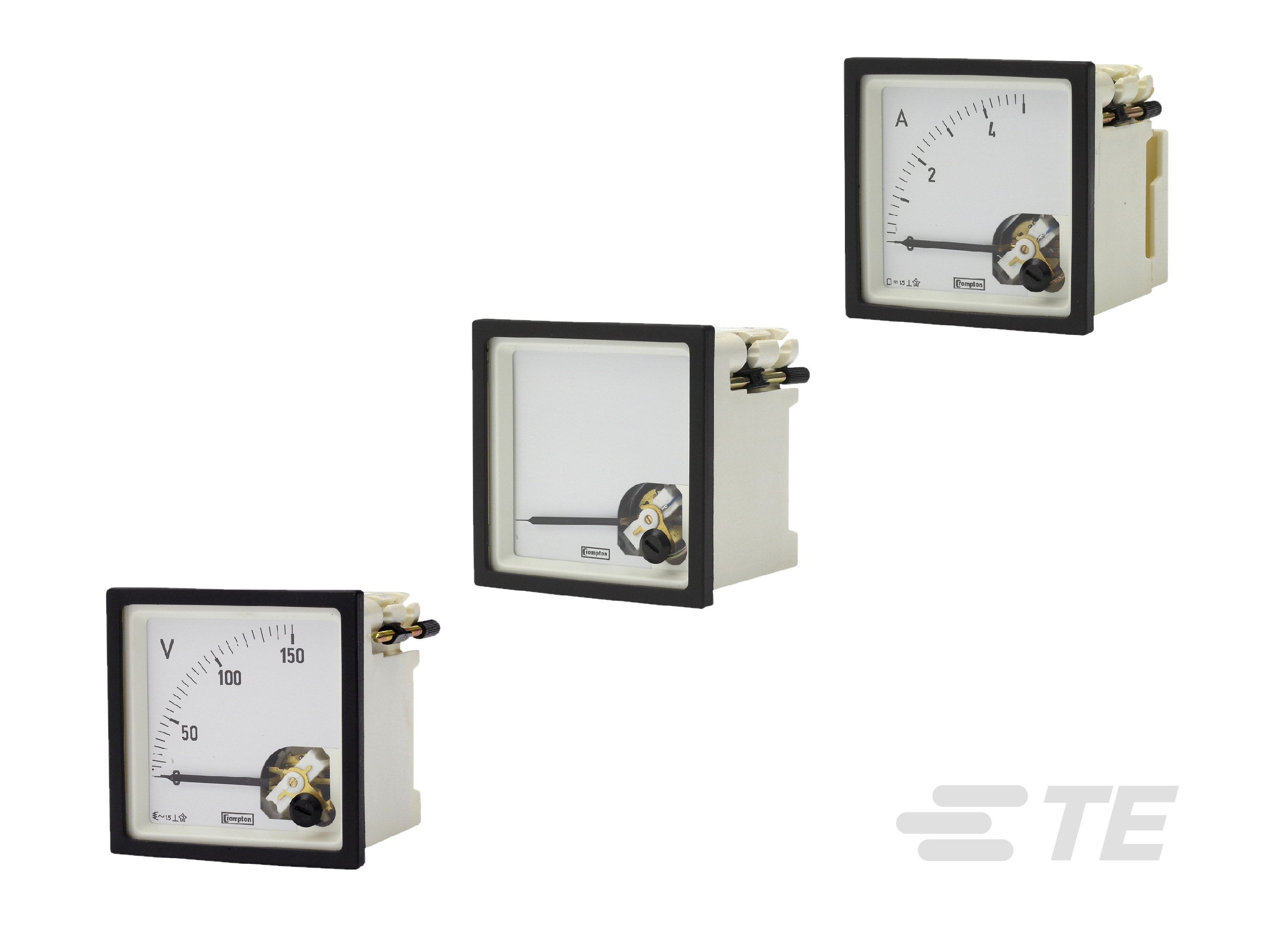

CI-E243

CROMPTON INSTRUMENTS

Crompton 007

More Less

Connect with Us

Product Features

Power Meter Function : AC Ammeter | AC Voltage | DC Ammeter | DC Voltage | Frequency
Scale (mV): 0/60 | 0/75
Scale (V): 0/15 | 0/150 | 0/30 | 0/300 | 0/40 | 0/500 | 200/250
Scale (mA): 0/1 | 0/20 | 4/20
Scale (A): 0/150/900 | 0/10/60 | 0/60/360 | 0/10 | 0/15/30 | 0/15/90 | 0/200/400 | 0/400 | 0/750/1500 | 0/1500 | 0/5 | 0/1200 | 0/300/1800 | 0/100/600 | 0/400/800 | 0/800/1600 | 0/1000/2000 | 0/3000 | 0/125 | 0/2.5 | 0/400/2400 | 0/150 | 0/100 | 0/300/600 | 0/1 | 0/100/200 | 0/40/80 | 0/7.5 | 0/600/1200 | 0/60 | 0/600 | 0/2 | 0/1.2 | 0/2000 | 0/40 | 0/250 | 0/5/10 | 0/25/50 | 0/2500 | 0/500/1000 | 0/30 | 0/200 | 0/250/1500 | 0/60/120 | 0/1600 | 0/250/500 | 0/1250 | 0/15 | 0/200/1200 | 0/300 | 0/120 | 0/10/20 | 0/150/300

Available from

Product	TE Part #	Documents	Power Meter Function	Scale	Scale	Scale	Scale	Measured Scale	Case Size	Operating Frequency Range	Product Weight	EU ELV Compliance
CI-E243-02AGLSRLC7	686840-000	Product Drawing	AC Ammeter	-	-	-	0/200 A	-	72 mm	50 – 60 Hz	.189 kg	-
CI-E243-41SGRNAJZ3	625688-000	Product Drawing	Frequency	-	-	200/250 V	-	-	-	-	-	-	72 mm	45 – 55 Hz	.4 kg	-
CI-E24301VGEJZU/T	CY3147-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/100 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-B2-C7	C41378-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/1500 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-026AGLSRXC7	E51598-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/300/1800 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02AGMTMT-C7	D18211-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/10 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02JGMTMTC7	C63787-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/10/20 A	-	-	72 mm	50 – 60 Hz	.4 kg	-
CI-E243-026AGLSRSC7	C31358-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/250/1500 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-RS-C7	E74130-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/250 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-01A-G-EF-NP	C74975-000	Product Drawing	DC Ammeter	0/60 mV	-	-	-	-	0/40 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-01A-G-EF-NW	C99961-000	Product Drawing	DC Ammeter	0/60 mV	-	-	-	-	0/60 A	-	-	72 mm	50 – 60 Hz	.45 kg	-
CI-E243-01A-G-EJ-RL	C43340-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/200 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-AE-C7	C83917-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/1600 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-01A-G-FA-UF	E94991-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	-	-	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLS/10	EF2775-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/300/600 A	-	-	96 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLS/13	EF2778-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/1000/2000 A	-	-	96 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/14	EF2722-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/600/1200 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLS/14	EF2779-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/5/10 A	0/1.2/2.4 kA	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/10	EF2718-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/100/200 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/13	EF2721-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/400/800 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/17	EF2725-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/1000/2000 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-01A-G-EF-SC	C38009-000	Product Drawing	DC Ammeter	0/60 mV	-	-	-	-	0/400 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02JGLASFC7	C93795-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/500/1000 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-A1-C7	D61407-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/1250 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-A5-C7	F68438-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/3000 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02J-G-LS-SC-C7	C22169-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/400/800 A	-	-	96 mm	50 – 60 Hz	.25 kg	-
CI-E243-02JGLSPZC7	A27962-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/150/300 A	-	-	96 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-A3-C7	C08116-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/2000 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-LF-C7	F31614-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/2.5 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02JGLARSC7	C08131-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/250/500 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGND/1	EF2796-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/15/30 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGNP/1	EF2797-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/40/80 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/11	EF2719-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/150/300 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/15	EF2723-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/750/1500 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/16	EF2724-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/800/1600 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/8	EF2741-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/60/120 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLS/11	EF2776-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/750/1500 A	-	-	96 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/12	EF2720-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/200/400 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E24302JGLA/18	EF2726-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/1.2 A	0/1.2/2.4 kA	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-01A-G-FA-D6	CJ8382-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	-	-	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-PS-C7	E07401-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/125 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02JGLSRLC7	F31661-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/200/400 A	-	-	96 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-LE-C7	F91669-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/2 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-01A-G-EF-RS	A34414-000	Product Drawing	DC Ammeter	0/60 mV	-	-	-	-	0/250 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-LA-C7	A37979-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/1 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-PQ-C7	E24116-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/120 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02A-G-LS-MF-C7	F77524-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/7.5 A	-	-	72 mm	50 – 60 Hz	.25 kg	-
CI-E243-02JGLSSJC7	D71451-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/600/1200 A	-	-	96 mm	50 – 60 Hz	.25 kg	-
CI-E243-02JGLSPKC7	E08374-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/100/200 A	-	-	96 mm	50 – 60 Hz	.25 kg	-
CI-E243-01AGEFPZ	E68322-000	Product Drawing	DC Ammeter	0/60 mV	-	-	-	-	0/150 A	-	-	72 mm	50 – 60 Hz	.25 kg	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Scale (mV) 0/60 | 0/75
Scale (V) 0/15 | 0/150 | 0/30 | 0/300 | 0/40 | 0/500 | 200/250
Scale (mA) 0/1 | 0/20 | 4/20
Scale (A) 0/150/900 | 0/10/60 | 0/60/360 | 0/10 | 0/15/30 | 0/15/90 | 0/200/400 | 0/400 | 0/750/1500 | 0/1500 | 0/5 | 0/1200 | 0/300/1800 | 0/100/600 | 0/400/800 | 0/800/1600 | 0/1000/2000 | 0/3000 | 0/125 | 0/2.5 | 0/400/2400 | 0/150 | 0/100 | 0/300/600 | 0/1 | 0/100/200 | 0/40/80 | 0/7.5 | 0/600/1200 | 0/60 | 0/600 | 0/2 | 0/1.2 | 0/2000 | 0/40 | 0/250 | 0/5/10 | 0/25/50 | 0/2500 | 0/500/1000 | 0/30 | 0/200 | 0/250/1500 | 0/60/120 | 0/1600 | 0/250/500 | 0/1250 | 0/15 | 0/200/1200 | 0/300 | 0/120 | 0/10/20 | 0/150/300
Measured Scale (kA) 0/1.2/2.4
Scale Shape Short Scale (90)
Accuracy (%) ±1.5

Configuration Features

Wiring Configuration Single Phase
Panel Cutout Size 68 mm [ 2.677 in ]

Electrical Characteristics

Power Meter Function AC Ammeter | AC Voltage | DC Ammeter | DC Voltage | Frequency

Body Features

Product Weight (kg) .189 | .2 | .25 | .4 | .45 | .5
Product Weight (lb) .418 | .551

Mechanical Attachment

Product Mount Type DIN Panel Mount

Dimensions

Case Size (mm) 72 | 96
Case Size (in) 2.84 | 3.78
Product Height 72 mm [ 2.83 in ]
Product Depth 64 mm [ 2.52 in ]
Product Width 72 mm [ 2.83 in ]

Operation/Application

Operating Frequency Range (Hz) 45 – 55 | 50 – 60

Industry Standards

Compatible With Agency/Standards Products UL
