View products below to see detailed pricing

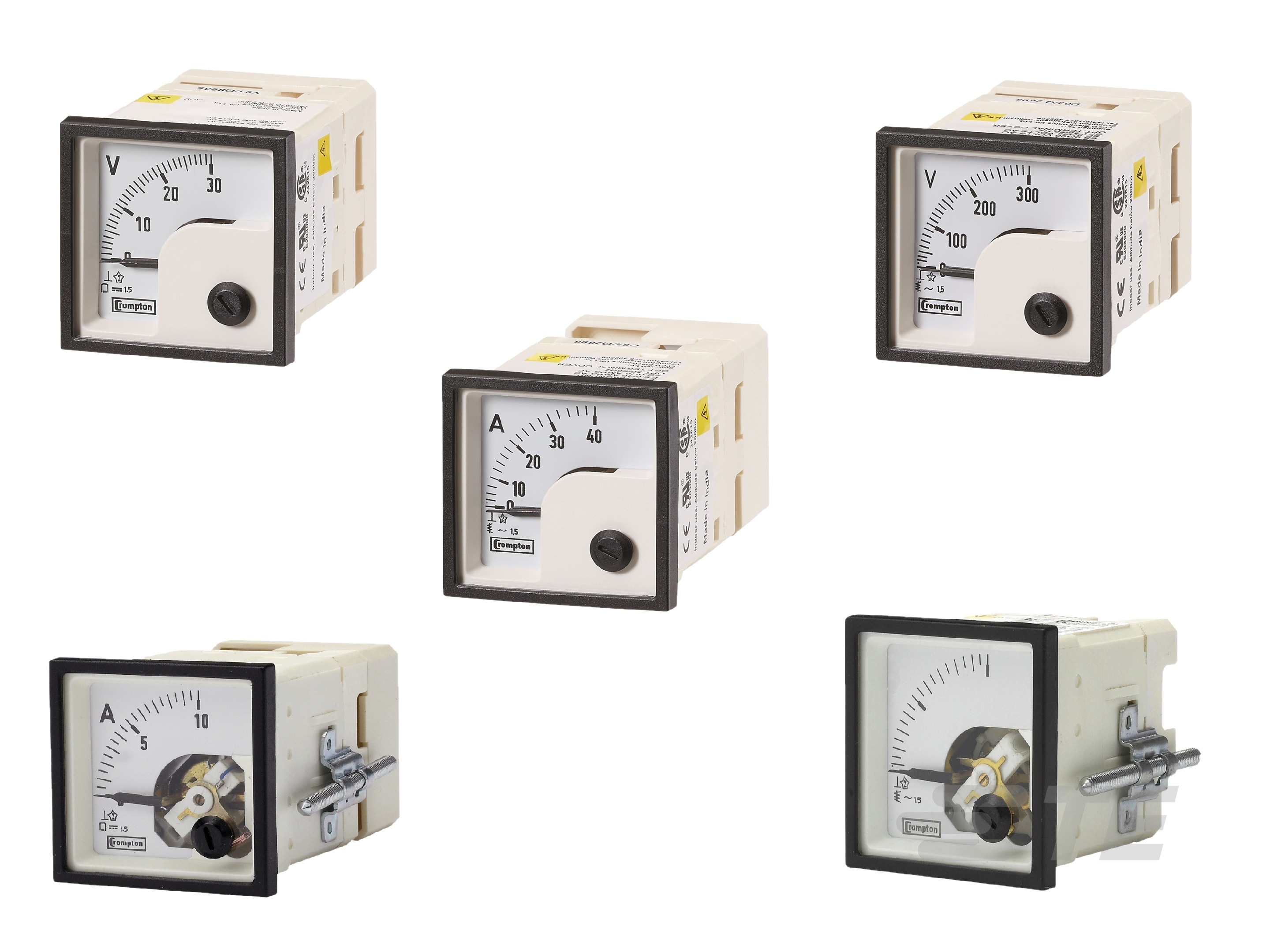

CI-E242

CROMPTON INSTRUMENTS

Crompton 007

More Less

Connect with Us

Product Features

Power Meter Function : AC Ammeter | AC Voltage | DC Ammeter | DC Voltage | Frequency
Scale (mV): 0/50 | 0/75 | 75
Scale (V): 0/15 | 0/150 | 0/30 | 0/300 | 0/500 | 0/600 | 200/250
Scale (mA): 0/1 | 0/10 | 0/20
Scale (A): 0/150/900 | 0/10/60 | 0/60/360 | 0/10 | 0/15/90 | 0/400 | 0/5 | 0/300/1800 | 0/100/600 | 0/800 | 0/400/2400 | 0/150 | 0/100 | 0/60 | 0/25 | 0/80 | 0/40 | 0/250 | 0/25/150 | 0/200 | 0/250/1500 | 0/15 | 0/200/1200 | 0/300 | 300/0/300 | 800/0/800

Available from

Product	TE Part #	Documents	Power Meter Function	Scale	Scale	Scale	Scale	Case Size	Operating Frequency Range	Product Weight	EU ELV Compliance
CI-E242-75AGNDND-C7	E28357-000	Product Drawing	AC Ammeter	-	-	-	0/15 A	48 mm	50 – 60 Hz	.3 kg	-
CI-E242-756A-G-LS-SC-C7	E68856-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/400/2400 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EJ-RL	C46656-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/200 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EJ-RS	C25828-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/250 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EC-RY	A47382-000	Product Drawing	DC Ammeter	0/50 mV	-	-	-	-	0/800 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EJ-PD	A97849-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/80 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89AGFAZU	E77494-000	Product Drawing	DC Ammeter	-	-	-	-	0/1 mA	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EJ-PZ	D66514-000	Product Drawing	DC Ammeter	75 mV	-	-	-	-	0/150 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-HA-XX	889792-000	Product Drawing	DC Ammeter	-	-	-	-	0/10 mA	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-HF-HF	C15275-000	Product Drawing	DC Ammeter	-	-	-	-	0/20 mA	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-756A-G-MT-MT-C7	CE0179-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/10/60 A	48 mm	50 – 60 Hz	.3 kg	-
CI-E242-75A-G-LS-RS-C7	F08488-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/250 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75A-G-LS-NW-C7	A21137-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/60 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-41SGRNAJAJ	A73694-000	Product Drawing	Frequency	-	-	200/250 V	-	-	-	-	48 mm	45 – 65 Hz	.3 kg	-
CI-E242-89A-G-EC-SZ	F04705-000	Product Drawing	DC Ammeter	0/50 mV	-	-	-	-	0/400 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-756A-G-LS-RX-C7	A41449-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/300/1800 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EJ-NW	A60582-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/60 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EC-SO	F25003-000	Product Drawing	DC Ammeter	0/50 mV	-	-	-	-	300/0/300 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-756A-G-LS-RS-C7	C94405-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/250/1500 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75A-G-LS-SC-C7	D88257-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/400 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EJ-NP	D76901-000	Product Drawing	DC Ammeter	75 mV	-	-	-	-	0/40 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-756A-G-LS-PZ-C7	E08856-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/150/900 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-756A-G-LS-RL-C7	D22128-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/200/1200 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EJ-SC	E39605-000	Product Drawing	DC Ammeter	0/75 mV	-	-	-	-	0/400 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EC-SV	D00157-000	Product Drawing	DC Ammeter	0/50 mV	-	-	-	-	0/300 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EC-SA	D15747-000	Product Drawing	DC Ammeter	0/50 mV	-	-	-	-	800/0/800 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-756A-G-NJ-NJ-C7	CE0182-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/25/150 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75A-G-LS-PZ-C7	A51118-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/150 A	48 mm	50 – 60 Hz	.3 kg	-
CI-E242-756A-G-LS-PK-C7	A04706-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/100/600 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75VGPZPZ-C7	A31119-000	Product Drawing	AC Voltage	-	-	0/150 V	-	-	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75V-G-RX-RX-C7	EA0699-000	Product Drawing	AC Voltage	-	-	0/300 V	-	-	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A-G-EC-SX	D06916-000	Product Drawing	DC Ammeter	0/50 mV	-	-	-	-	0/200 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75A-G-LS-RX-C7	F04207-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/300 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89A/1	CR2499-000	Product Drawing	DC Ammeter	-	-	-	-	-	-	0/10 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75AGLSXXC7	F41687-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/5 A	72 mm	50 – 60 Hz	.25 kg	-
CI-E242-75V-G-SF-SF-C7	CL0844-000	Product Drawing	AC Voltage	-	-	0/500 V	-	-	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-756A-G-ND-ND-C7	CE0180-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/15/90 A	48 mm	50 – 60 Hz	.3 kg	-
CI-E24275VGRX/3	EE7340-000	Product Drawing	AC Voltage	-	-	0/300 V	-	-	-	-	72 mm	50 – 60 Hz	.4 kg	-
CI-E242-75A-G-LS-PK-C7	D21459-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/100 A	48 mm	50 – 60 Hz	.4 kg	-
CI-E242-89A-G-EJ-PK	F69645-000	Product Drawing	DC Ammeter	75 mV	-	-	-	-	0/100 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75VGSJSJ-C7	E94690-000	Product Drawing	AC Voltage	-	-	0/600 V	-	-	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75AGNJNJ-C7	D58292-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/25 A	48 mm	50 – 60 Hz	.3 kg	-
CI-E242-89VGNDND	E64155-000	Product Drawing	DC Voltage	-	-	0/15 V	-	-	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75AGMTMT-C7	D41408-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/10 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75AGNPNP-C7	C73762-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/40 A	48 mm	50 – 60 Hz	.133 kg	-
CI-E242-756A-G-LS-NW-C7	E81295-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/60/360 A	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-89V-G-NL-NL	EA2607-000	Product Drawing	DC Voltage	-	-	0/30 V	-	-	-	-	48 mm	50 – 60 Hz	.25 kg	-
CI-E242-75A-G-LS-RL-C7	A67990-000	Product Drawing	AC Ammeter	-	-	-	-	-	-	0/200 A	48 mm	50 – 60 Hz	.25 kg	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Scale (mV) 0/50 | 0/75 | 75
Scale (V) 0/15 | 0/150 | 0/30 | 0/300 | 0/500 | 0/600 | 200/250
Scale (mA) 0/1 | 0/10 | 0/20
Scale (A) 0/150/900 | 0/10/60 | 0/60/360 | 0/10 | 0/15/90 | 0/400 | 0/5 | 0/300/1800 | 0/100/600 | 0/800 | 0/400/2400 | 0/150 | 0/100 | 0/60 | 0/25 | 0/80 | 0/40 | 0/250 | 0/25/150 | 0/200 | 0/250/1500 | 0/15 | 0/200/1200 | 0/300 | 300/0/300 | 800/0/800
Scale Shape Short Scale (90)
Accuracy (%) ±1.5

Configuration Features

Wiring Configuration Single Phase
Panel Cutout Size 45 mm [ 1.772 in ]

Electrical Characteristics

Power Meter Function AC Ammeter | AC Voltage | DC Ammeter | DC Voltage | Frequency

Body Features

Product Weight (kg) .133 | .25 | .3 | .4

Mechanical Attachment

Product Mount Type DIN Panel Mount

Dimensions

Case Size (mm) 48 | 72
Case Size (in) 1.89 | 2.84
Product Height 48 mm [ 1.89 in ]
Product Depth 64 mm [ 2.52 in ]
Product Width 48 mm [ 1.89 in ]

Operation/Application

Operating Frequency Range (Hz) 45 – 65 | 50 – 60

Industry Standards

Compatible With Agency/Standards Products UL
