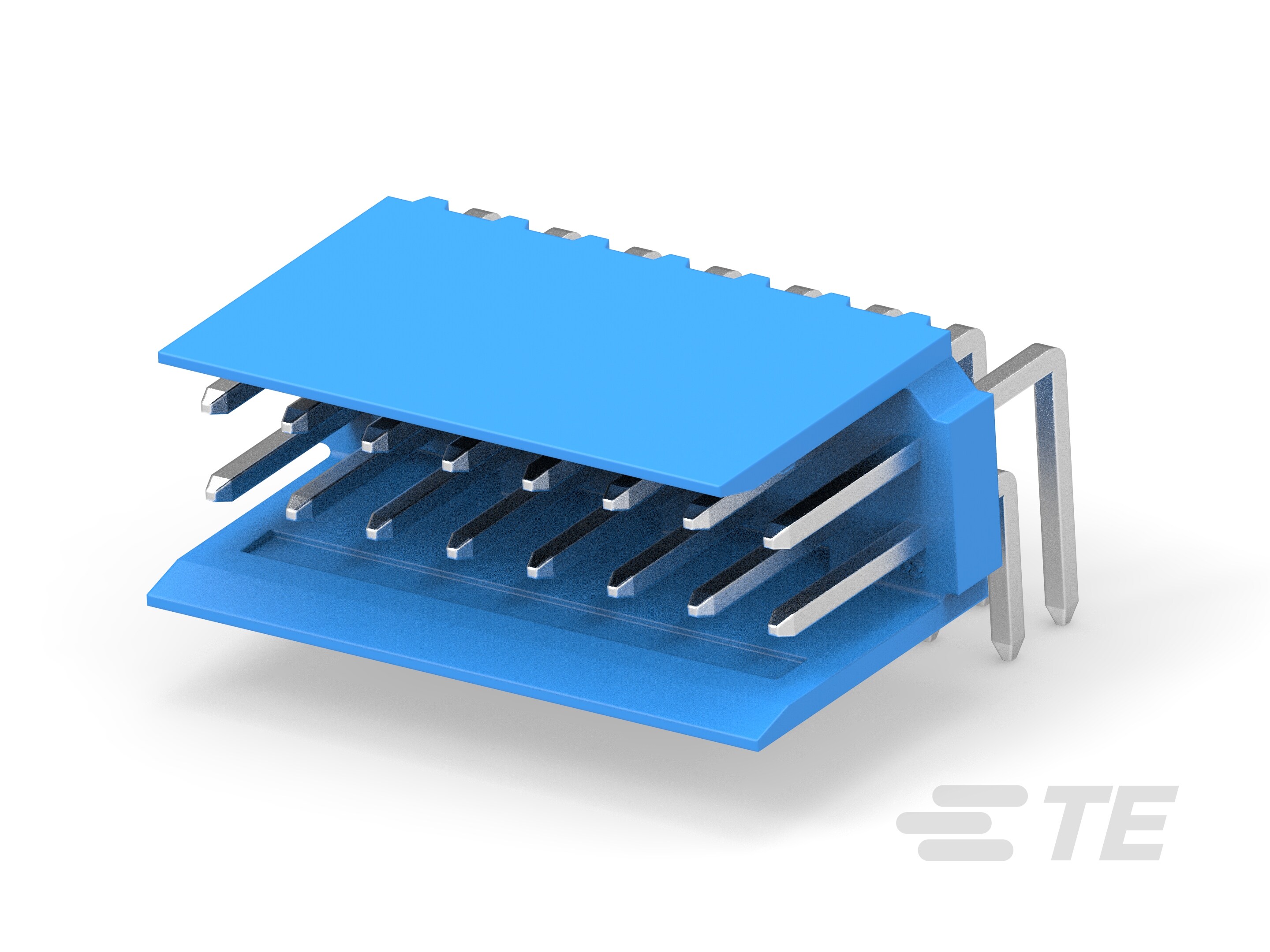

HE13/HE14 TH Headers, DRRA

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• PCB Connector Type  PCB Mount Header

• Connector System  Wire-to-Board

• Header Type  Partially Shrouded

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• Connector Product Type  Connector Assembly

• Connector Contact Load Condition  Fully Loaded

• PCB Mount Orientation  Right Angle

• Number of Positions  6 | 8 | 10 | 12 | 16 | 20 | 24

• Number of Rows  2

• Dielectric Withstanding Voltage (Max) (V) 500 | 1000

• Insulation Resistance (MΩ) 1000 | 5000

• Primary Product Color  Blue

• Contact Underplating Material  Nickel

• Mating Square Post Dimension  .64 mm [ .025 in ]

• Contact Shape & Form  Square

• Contact Base Material  Phosphor Bronze

• PCB Contact Termination Area Plating Material  Tin

• Contact Mating Area Length (mm) 7

• Contact Mating Area Plating Material  Gold (Au) | Tin (Sn)

• Contact Mating Area Plating Material Finish  Matte

• Contact Mating Area Plating Material Thickness (µm) .4 | .8

• Contact Mating Area Plating Material Thickness (µin) 15 | 31

• Contact Type  Pin

• Contact Current Rating (Max) (A) 3

• Square Termination Post & Tail Dimension  .63 mm [ .025 in ]

• Termination Post & Tail Length (mm) 2.9

• Termination Method to PCB  Through Hole - Solder

• Panel Mount Feature  Without

• Mating Alignment Type  Polarization

• Mating Retention  With

• PCB Mount Retention  Without

• Connector Mounting Type  Board Mount

• Mating Alignment  With

• Centerline (Pitch)  2.54 mm [ .1 in ]

• Housing Material  High Temperature Thermoplastic

• Row-to-Row Spacing  2.54 mm [ .1 in ]

• Operating Temperature Range (°C) -55 – 125 | -40 – 100

• Operating Temperature Range (°F) -67 – 257 | -40 – 212

• Circuit Application  Signal

• UL Flammability Rating  UL 94V-0

• Packaging Quantity  500 | 2000

• Packaging Method  Box | Package
