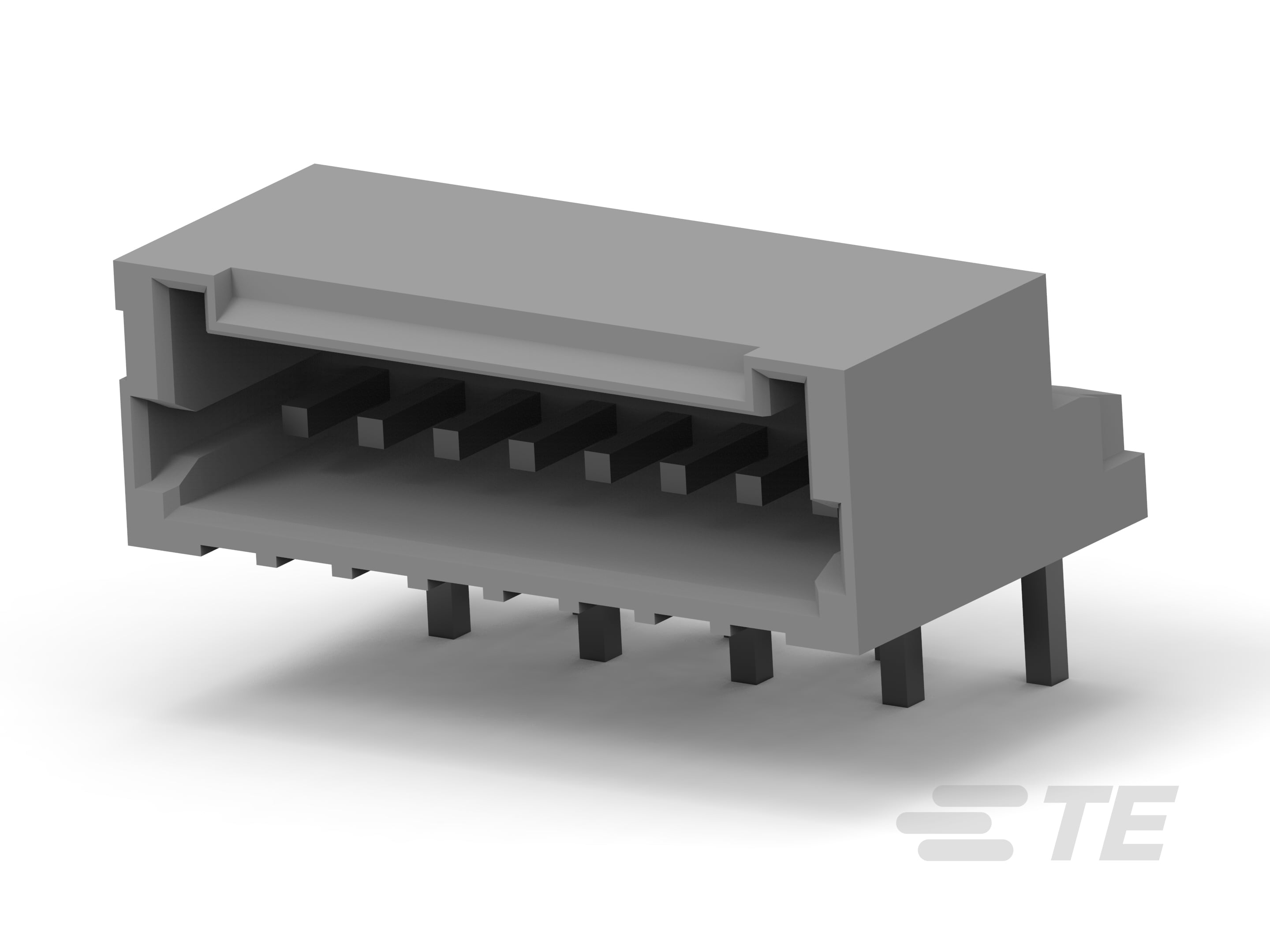

MINI COMMON TERMINATION HEADERS

MINI COMMON TERMINATION HEADERS-CAT-AM7053-H342
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Right Angle

  • Connector System : Wire-to-Board

  • Number of Positions : 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20

  • Centerline (Pitch) : 1.5 mm [ .059 in ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Right Angle

  • Number of Positions  2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VDC) 50

  • Operating Voltage (VAC) 50

Body Features

  • Primary Product Color  Blue | Natural

Contact Features

  • Contact Layout  Staggered

  • Contact Mating Area Length  2.4 mm [ .095 in ]

  • PCB Contact Termination Area Plating Material Thickness  1 – 2 µm [ 39.37 – 78.73 µin ]

  • Mating Square Post Dimension  .5 mm [ .02 in ]

  • Contact Shape & Form  Square

  • Contact Base Material  Brass

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Mating Area Plating Material  Tin (Sn)

  • Contact Mating Area Plating Material Finish  Matte

  • Contact Mating Area Plating Material Thickness  1 µm [ 39.37 µin ]

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 2

Termination Features

  • Square Termination Post & Tail Dimension  .5 mm [ .02 in ]

  • Termination Post & Tail Length (mm) 2.5 | 3

  • Termination Post & Tail Length (in) .098 | .118

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Kinked Legs

  • Panel Mount Feature  With

  • Mating Alignment Type  Polarization

  • PCB Mount Alignment  With

  • Mating Retention  With

  • PCB Mount Retention  With

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Centerline (Pitch)  1.5 mm [ .059 in ]

  • Housing Material  Nylon GF

Dimensions

  • PCB Thickness (Recommended)  1.6 mm [ .063 in ]

  • Connector Length (mm) 5.5 | 7 | 8.5 | 10 | 11.5 | 13 | 14.5 | 16 | 17.5 | 19 | 20.5 | 22 | 23.5 | 24.99 | 26.5 | 28 | 29.5 | 31 | 32.5

  • Connector Length (in) .216 | .276 | .334 | .393 | .452 | .511 | .57 | .63 | .689 | .748 | .807 | .866 | .925 | .983 | 1.043 | 1.102 | 1.161 | 1.221 | 1.279

  • Connector Width  4.9 mm [ .192 in ]

  • Connector Height  8.45 mm [ .332 in ]

Usage Conditions

  • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

  • Assembly Process Feature  Pick and Place Cover

  • Circuit Application  Signal

Industry Standards

  • Compatible With Approved Standards Products  CSA LR7189 | UL E28476

  • Compatible With Agency/Standards Products  CSA | UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  450 | 500 | 550 | 600 | 650 | 700 | 750 | 850 | 900 | 1000 | 1150 | 1300 | 1500 | 1750 | 2100 | 2700

  • Packaging Method  Box | Tray

Reference Number

  • TE Internal Number CAT-AM7053-H342
