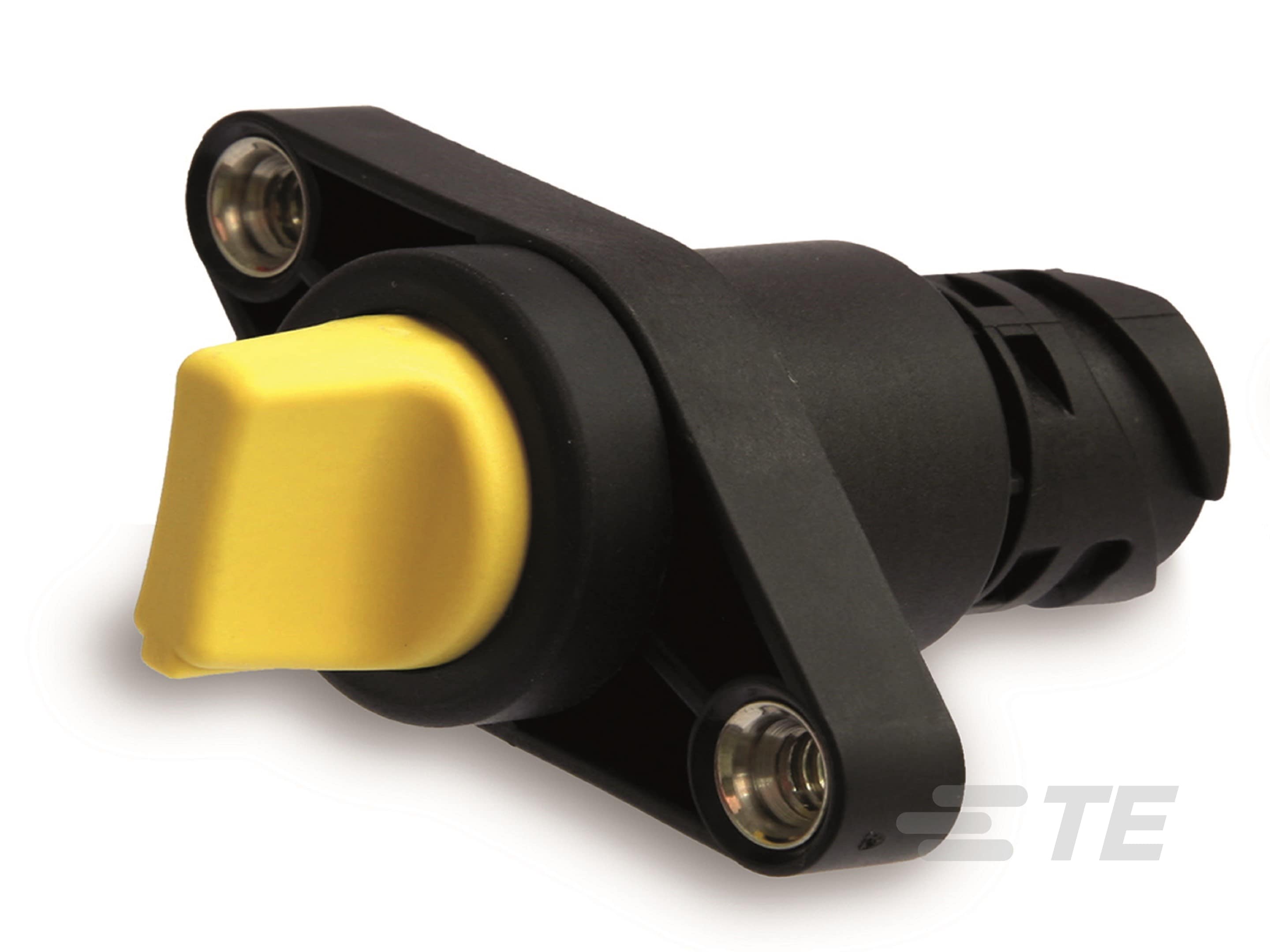

Rotary Switch, Socket, Short Handle Selector, Sealed

Rotary Switch, Socket, Short Handle Selector, Sealed-CAT-AL8-KSDRSS
Series DS Push Button Switch, sealed with socket housing and short handle selector. Characterized by its IP6K9K sealing rating, as well as its high shock and vibration resistance.
More Less
Connect with Us

Product Features

  • Number of Positions : 1 | 2 | 3

  • Actuator Style : Short Handle Selector

  • Number of Decks : 1 | 2

  • Actuator Color : Black | Blue | Red | Yellow

  • Rotary Switch Type : Rotary | Selector

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Switch Connection Type  12-Position Connector | DIN Connector

  • Angle of Throw  22.5 | 45

  • Actuator Style  Short Handle Selector

  • Rotary Switch Type  Rotary | Selector

  • Sealed Device  Yes

Configuration Features

  • Number of Positions  1 | 2 | 3

  • Number of Decks  1 | 2

  • Number of Switches  1 | 2

  • Operating Function  3 Position, Maintained | Change Over 1 Pole, Maintained | Change Over 2 Pole, Maintained

Electrical Characteristics

  • Contact Current Rating (A) 1 | 5

  • Operating Voltage (VDC) 32

Body Features

  • Actuator Color  Black | Blue | Red | Yellow

  • Case Material  Polyamide | Thermoplastic

  • Product Orientation  Vertical

Contact Features

  • Contact Base Material  Silver Alloy | Silver Clad Copper

Mechanical Attachment

  • Product Mount Type  Panel Mount

Packaging Features

  • Packaging Method  Box | Bulk

Reference Number

  • TE Internal Number CAT-AL8-KSDRSS
