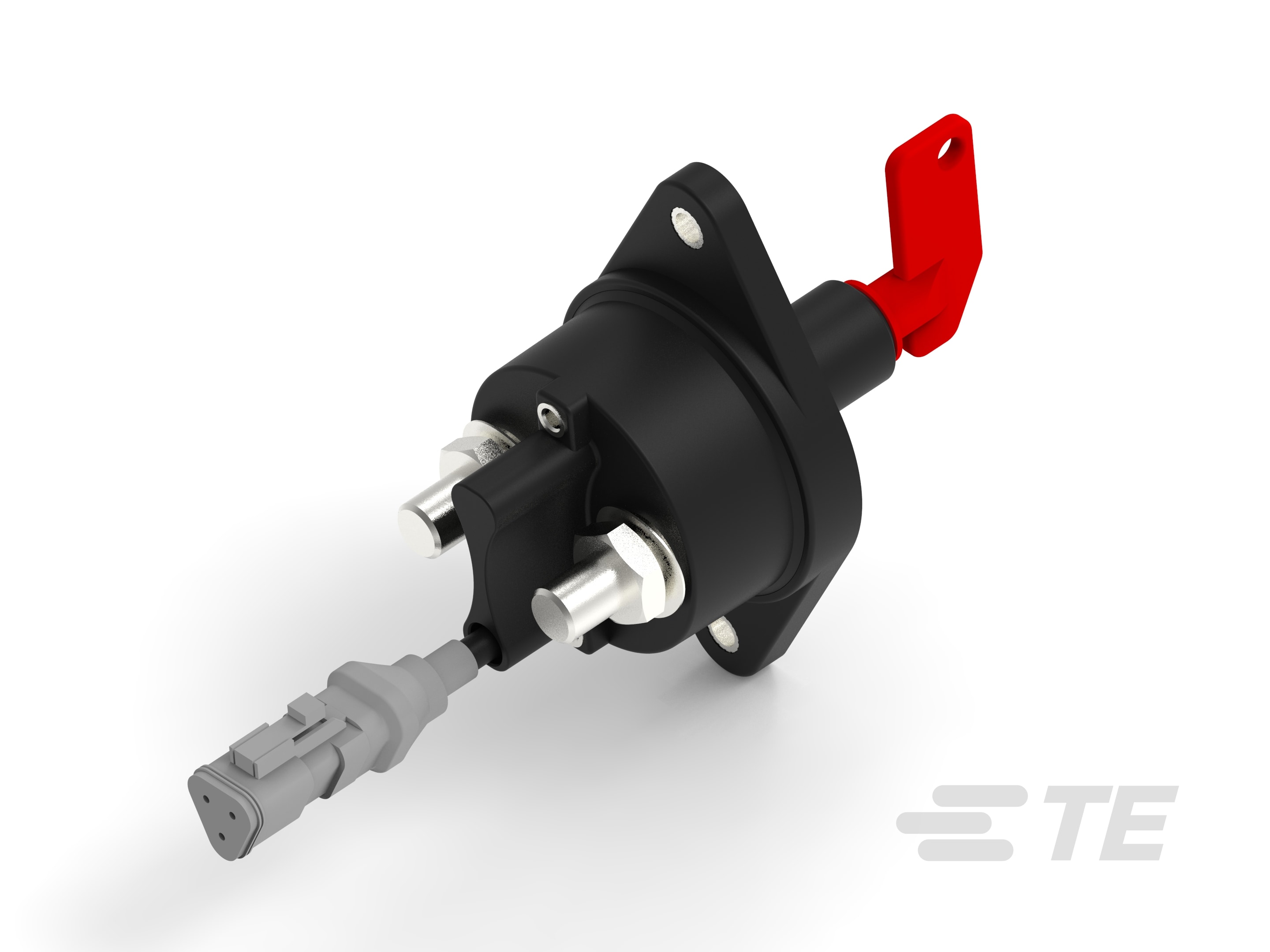

Battery Disconnector, 500A, 1 Pole

Battery Disconnector, 500A, 1 Pole-CAT-AL4-SBD355001
Series 35 500A battery disconnector with one pole, a lever-style activator, and rotary-style switch. Sealing meets the IP67 and IP6K9K standards.
More Less
Connect with Us

Product Features

  • Switch Main Contact Current Rating (A): 400 | 500

  • Operating Voltage (VDC): 32

  • Number of Poles : 1

  • Operating Handle Type : 45° Turn Off Handle | Double Wing Handle | Lever | Lever Extended Shaft | Pointer Key Handle | T-Handle

  • Termination Thread Size : M10 | M12

Available from

LADD Inc
Overview

KISSLING Battery Disconnector

Series 35 / 500A

Our manually operated battery disconnector up to 500 amps meets the most demanding requirements in all vehicle applications. The nominal current ratings refer to continuous DC current at up to 100% duty cycle and the switches are built to switch under full load. All series 35 battery disconnectors are sealed with a technology that meets the IP67 and IP6K9K (steam cleaning) standards and the switches are designed to operate at temperatures between -40°C and +85°C.

Key Features

  • Sealed housing conforms to IP6K9K
  • Robust design
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Battery disconnect under load in case of an emergency
  • Variable or scalable mounting options
  • Safety in the vehicle service by so called “LOCK” options
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sealed Device  Yes

Configuration Features

  • Number of Poles  1

  • Number of Auxiliary Contacts  0 | 1

  • Switch Keying Option  Not Removable | Removable With Chain | Removable Without Chain

Electrical Characteristics

  • Operating Voltage (VAC) 20

  • Switch Main Contact Current Rating (A) 400 | 500

  • Operating Voltage (VDC) 32

Body Features

  • Operating Handle Color  Black | Green | Red | Yellow

Mechanical Attachment

  • Operating Handle Type  45° Turn Off Handle | Double Wing Handle | Lever | Lever Extended Shaft | Pointer Key Handle | T-Handle

  • Termination Thread Size  M10 | M12

  • Switch Mounting Option  Center Mount | Long Flange

Dimensions

  • Centerline Between Flange Screw Holes (mm) 100

  • Centerline Between Flange Screw Holes (in) 3.937 | 3.94

  • Screw Hole Diameter (mm) 6.5 | 8.5

  • Screw Hole Diameter (in) .256 | .33 | .335

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Reference Number

  • TE Internal Number CAT-AL4-SBD355001
