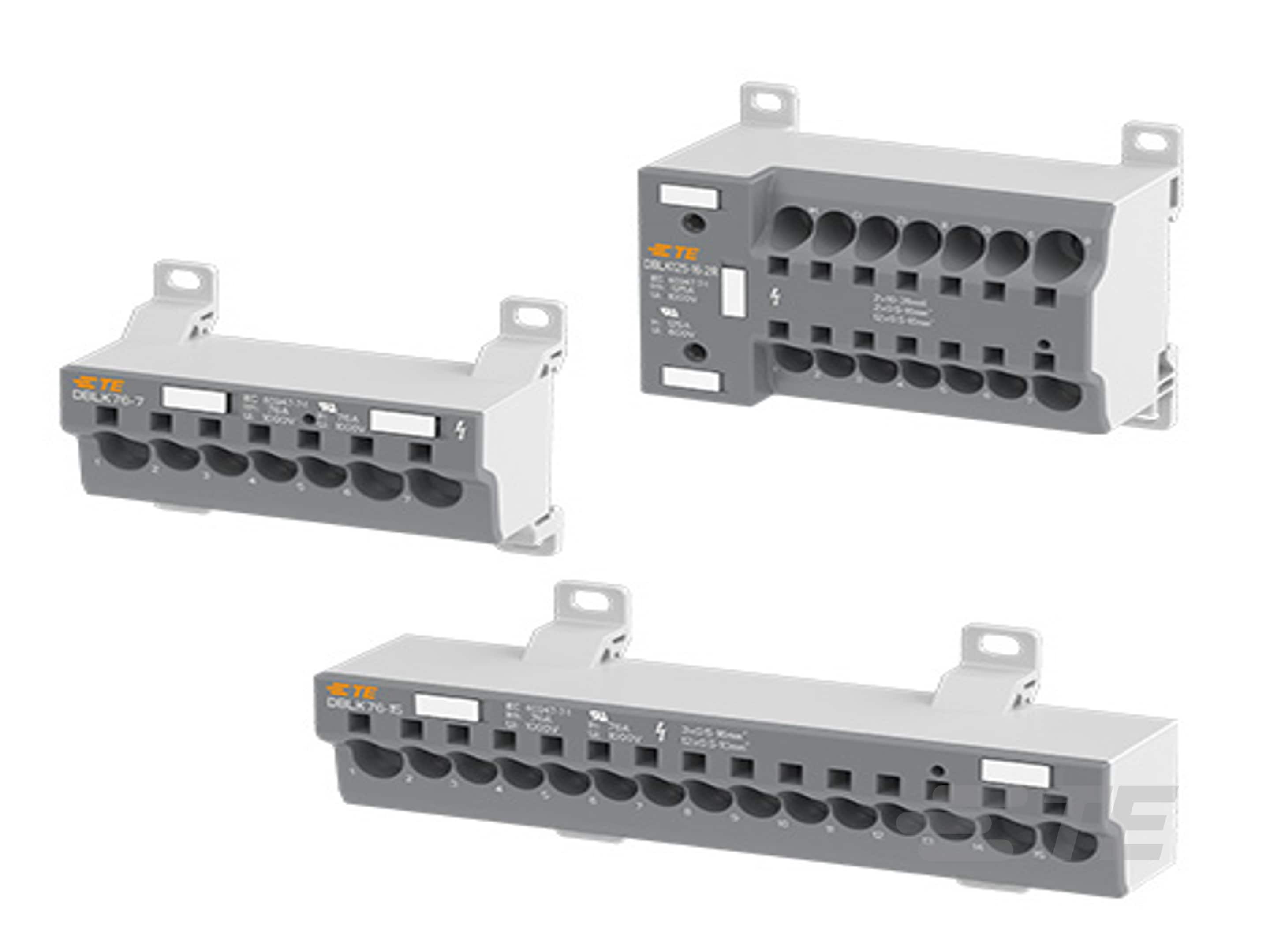

DBLK Power Distribution Block: PI-Spring technology, unipolar

DBLK Power Distribution Block: PI-Spring technology, unipolar-CAT-ABS-DBLK
Compact power distribution blocks with in-line PI-Spring connections offer vibration proof and time-saving power distribution in control panel applications. Unipolar, 7, 15, & 16 connections, 10, 16, 35 mm² up to 125A, 1000VAC – 1500VDC. TS35 rail or panel mount.
More Less

Product Features

  • Number of Poles : 1

  • Current Rating (IEC) (A): 76, 125

  • Current Rating (UL) (A): 76, 125

  • Number of Positions : 7, 14, 15

  • Contact Current Rating (Max) (A): 76, 125

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Block Function  Feed-Through

  • Number of Poles  1

  • Number of Positions  7, 14, 15

Electrical Characteristics

  • Input Current (Max) (A) 76, 125

  • Current Rating (IEC) (A) 76, 125

  • Current Rating (UL) (A) 76, 125

Contact Features

  • Contact Current Rating (Max) (A) 76, 125

Mechanical Attachment

  • Connector Mounting Type  DIN Rail

Usage Conditions

  • Installation Temperature Range  -5 – 40 °C [ 23 – 104 °F ]

  • Operating Temperature Range  -55 – 110 °C [ -67 – 230 °F ]

Reference Number

  • TE Internal Number CAT-ABS-DBLK
