ENTRELEC Dynamic Pluggable SNK Series

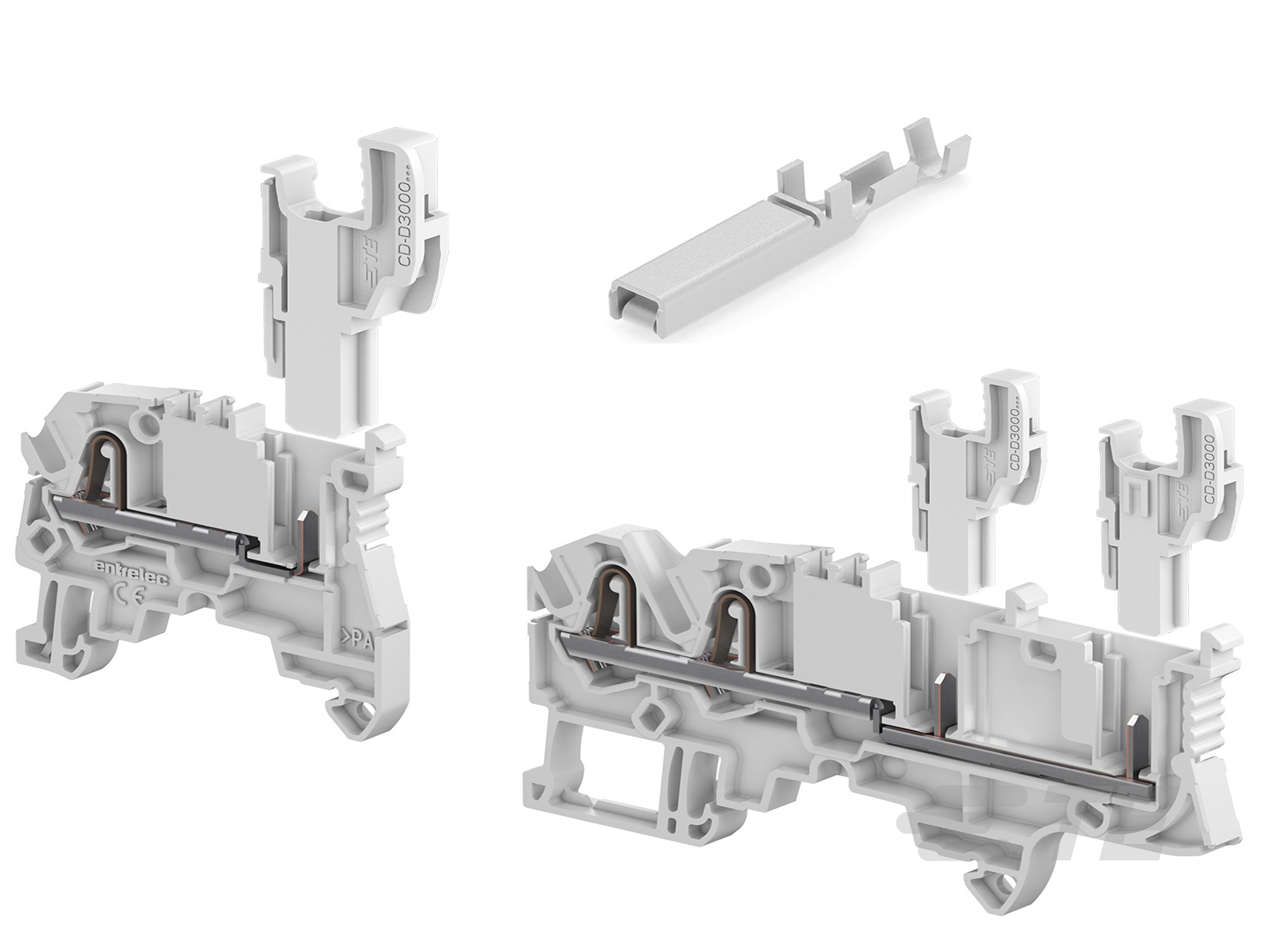

SNK Series, Dynamic Pluggable Terminal Blocks, combining Push-In, Spring and Dynamic crimp technology. Female plugs, up to 15 A, 1–4 positions 5.2 mm [.205 in], 14 AWG, and insulated up to 1000V.
Product Features
-
Modular Terminal Block Product Type : Female Plug Terminal Block, PI-Spring Terminal Block, Pluggable Terminal Block
-
Block Function : Feed-Through, Feed-Through & Pluggable
-
Primary Product Color : Gray
-
Product Spacing (mm): 5.2
-
Product Spacing (in): .204, .205
-
Number of Positions : 1, 2, 4
Overview
FAQ
How much space saving can we make with this products?
- 20% smaller product on the height compare the standard pluggable solution
What is the min wire size with Dynamic connection?
- 0.08mm² base on D3000 minimum wire size
Does the dynamic connecter supplied with the plugs?
- No, they should be ordered separately due to the application
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Connector & Contact Terminates To Wire & Cable
-
Modular Terminal Block Product Type Female Plug Terminal Block, PI-Spring Terminal Block, Pluggable Terminal Block
Configuration Features
-
Gauge Type A2 / 2.3 mm Dia.
-
Number of Circuits 1
-
Number of Poles 1, 2
-
Number of Levels 1
-
Block Function Feed-Through, Feed-Through & Pluggable
-
Number of Positions 1, 2, 4
Electrical Characteristics
-
Impulse Withstanding Voltage Rating (IEC) (V) 8000
-
Dielectric Withstanding Voltage (Max) (V) 2200
-
Current Rating (IEC) (A) 20, 24
-
Current Rating (UL) (A) 15, 22
-
Voltage Rating (CSA) (V) 600
-
Short-Time Withstanding Current Rating @ 1s (A) 300
-
Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V) 600
-
Voltage Rating (IEC) (V) 1000
-
Current Rating (CSA) (A) 20, 22
-
Power Loss (W) .8
-
Operating Voltage (VAC) 1000
Body Features
-
Product Weight (g) 1.21, 7, 9.55
-
Product Weight (oz) .035, .246, .378
-
Primary Product Color Gray
Termination Features
-
Termination Method to Wire & Cable Crimp, Push-in
Mechanical Attachment
-
DIN Rail Mounting Type TH35-15, TH35-7.5
-
Connector Mounting Type Cable Mount (Free-Hanging), DIN Rail
Housing Features
-
Housing Material Polyamide, Polyamide 6.6
-
Centerline (Pitch) 5.2 mm [ .205 in ]
Dimensions
-
Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG) 26 – 14, 28 – 14
-
Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²) .2 – 4
-
Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²) .22 – 2.5
-
Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²) .22 – 2.5
-
Main Circuit Capacity - Twin Ferrule per Spring Clamp (AWG) 26 – 20
-
Product Height (mm) 15.95, 49.6, 89.3
-
Product Length 35.5 mm [ 1.38 in ]
-
Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (AWG) 28 – 14
-
Product Width 5.2 mm [ .204 in ]
-
Product Depth 35.5 mm [ 1.38 in ]
-
Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG) 26 – 14
-
Product Length (mm) 35.5
-
Product Depth (mm) 35.5
-
Tool Size 3.5 mm [ .138 in ]
-
Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²) .08 – 2.2, .22 – 2.5
-
Wire Stripping Length 11 mm [ .433 in ]
-
Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG) 26 – 12
-
Main Circuit Capacity - Twin Ferrule per Spring Clamp (mm²) .22 – .5
-
Product Spacing (mm) 5.2
-
Product Spacing (in) .204, .205
-
Wire Size (AWG) 12
-
Wire Size (mm²) 2.5
Usage Conditions
-
Installation Temperature Range -5 – 40 °C [ 23 – 104 °F ]
-
Operating Temperature Range -55 – 110 °C [ -67 – 230 °F ]
Operation/Application
-
Circuit Application Signal
Industry Standards
-
UL Flammability Rating UL 94V-0
-
IP Rating IP20
Reference Number
-
TE Internal Number CAT-ABN-SPC300025
