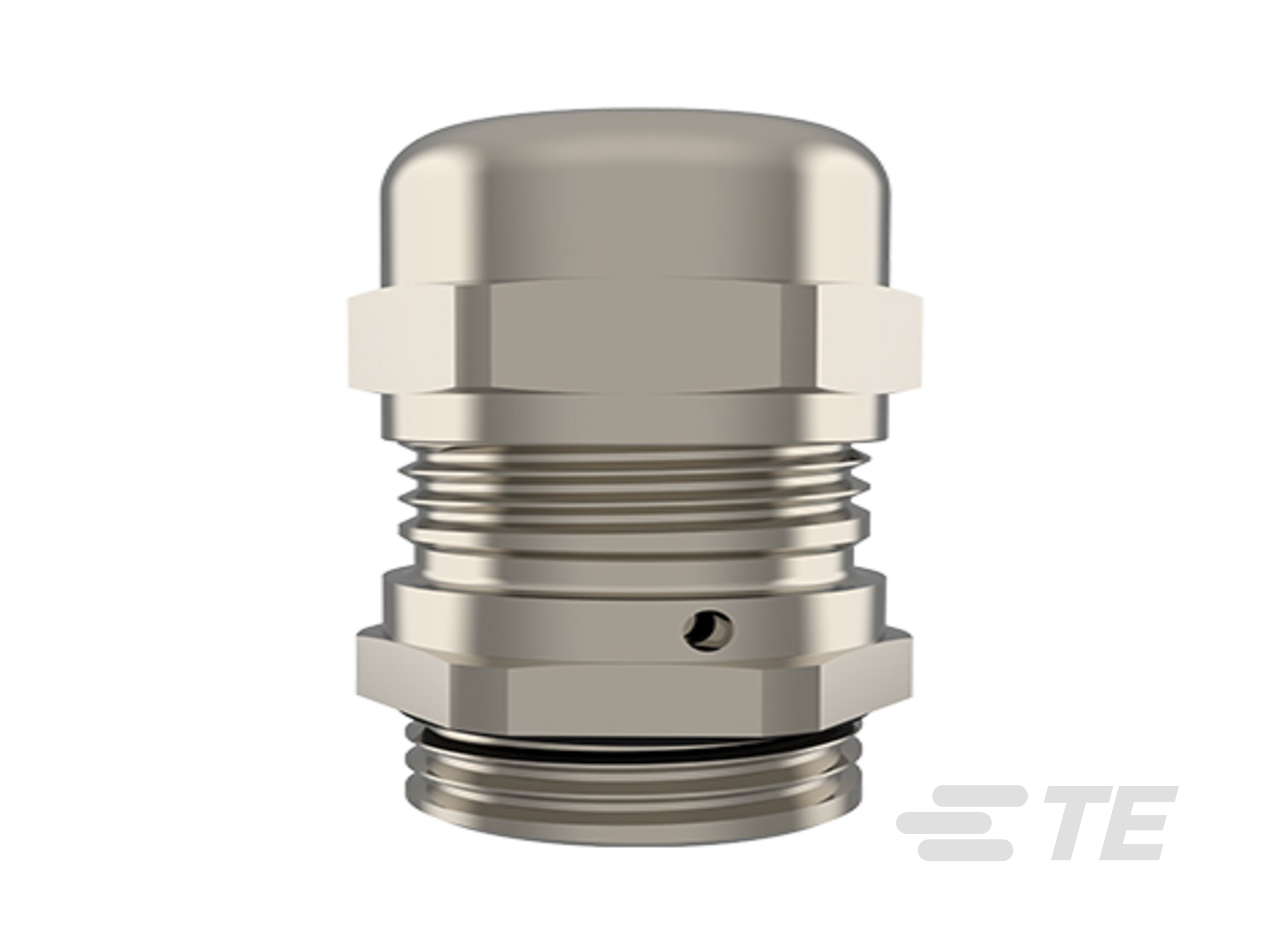

VENT CG

Digital Datasheet|

Product Features

Cable Gland Product Type : Ventilated Cable Gland
Primary Product Material : Brass, PA 6
Clamping Diameter Range (mm): 2 – 6, 3 – 7, 4 – 7, 4 – 8, 5 – 9, 6 – 12, 6 – 11
Primary Product Plating Material : Nickel
Primary Product Color : Black, Gray, Light Gray

Available from

Product	TE Part #	Documents	Primary Product Material	Clamping Diameter Range	Primary Product Plating Material	Primary Product Color	Outer Thread Size	Thread Length	IP Rating	Operating Temperature Range	EU RoHS Compliance
VENT CG,BRASS,M12,2-6,8	2490540-1	Product Drawing 3D PDF	Brass	2 – 6 mm	Nickel	-	M12 x 1.5	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,M12,4-7,8	2490540-2	Product Drawing 3D PDF	Brass	4 – 7 mm	Nickel	-	M12 x 1.5	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,M16,2-6,8	2490540-3	Product Drawing 3D PDF	Brass	2 – 6 mm	Nickel	-	M16 x 1.5	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,M16,4-7,8	2490540-4	Product Drawing 3D PDF	Brass	4 – 7 mm	Nickel	-	M16 x 1.5	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,M16,3-7,8	2490540-5	Product Drawing 3D PDF	Brass	3 – 7 mm	Nickel	-	M16 x 1.5	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,M16,5-9,8	2490540-6	Product Drawing 3D PDF	Brass	5 – 9 mm	Nickel	-	M16 x 1.5	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,M20,5-9,8	2490540-7	Product Drawing 3D PDF	Brass	5 – 9 mm	Nickel	-	M20 x 1.5	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,M20,6-11,8	2490540-8	Product Drawing 3D PDF	Brass	6 – 11 mm	Nickel	-	M20 x 1.5	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,PG7,2-6,8	2490540-9	Product Drawing 3D PDF	Brass	2 – 6 mm	Nickel	-	PG7	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,PG7,4-7,8	1-2490540-0	Product Drawing 3D PDF	Brass	4 – 7 mm	Nickel	-	PG7	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,PG9,2-6,8	1-2490540-1	Product Drawing 3D PDF	Brass	2 – 6 mm	Nickel	-	PG9	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,PG9,4-7,8	1-2490540-2	Product Drawing 3D PDF	Brass	4 – 7 mm	Nickel	-	PG9	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,PG11,3-7,8	1-2490540-3	Product Drawing 3D PDF	Brass	3 – 7 mm	Nickel	-	PG11	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,PG11,5-9,8	1-2490540-4	Product Drawing 3D PDF	Brass	5 – 9 mm	Nickel	-	PG11	8 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,PG13.5,5-9,9	1-2490540-5	Product Drawing 3D PDF	Brass	5 – 9 mm	Nickel	-	PG13.5	9 mm	IP67	-20 – 100 °C	-
VENT CG,BRASS,PG13.5,6-11,9	1-2490540-6	Product Drawing 3D PDF	Brass	6 – 11 mm	Nickel	-	PG13.5	9 mm	IP67	-20 – 100 °C	-
VENT CG,PA6,M12,4-8,8,SGR	2490541-1	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Gray	M12 x 1.5	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,M12,4-8,8,LGR	2490541-2	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Light Gray	M12 x 1.5	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,M12,4-8,8,BLK	2490541-3	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Black	M12 x 1.5	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,M16,4-8,10,SGR	2490541-4	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Gray	M16 x 1.5	10 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,M16,4-8,10,LGR	2490541-5	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Light Gray	M16 x 1.5	10 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,M16,4-8,10,BLK	2490541-6	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Black	M16 x 1.5	10 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,M20,6-12,10,SGR	2490541-7	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Gray	M20 x 1.5	10 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,M20,6-12,10,LGR	2490541-8	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Light Gray	M20 x 1.5	10 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,M20,6-12,10,BLK	2490541-9	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Black	M20 x 1.5	10 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG9,4-8,8,SGR	1-2490541-0	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Gray	PG9	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG9,4-8,8,LGR	1-2490541-1	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Light Gray	PG9	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG9,4-8,8,BLK	1-2490541-2	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Black	PG9	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG11,4-8,8,SGR	1-2490541-3	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Gray	PG11	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG11,4-8,8,LGR	1-2490541-4	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Light Gray	PG11	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG11,4-8,8,BLK	1-2490541-5	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Black	PG11	8 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG13.5,6-12,9,SGR	1-2490541-6	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Gray	PG13.5	9 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG13.5,6-12,9,LGR	1-2490541-7	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Light Gray	PG13.5	9 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,PG13.5,6-12,9,BLK	1-2490541-8	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Black	PG13.5	9 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,NPT3/8,4-8,15,SGR,L	1-2490541-9	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Gray	NPT 3/8"	15 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,NPT3/8,4-8,15,LGR,L	2-2490541-0	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Light Gray	NPT 3/8"	15 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,NPT3/8,4-8,15,BLK,L	2-2490541-1	Product Drawing 3D PDF	PA 6	4 – 8 mm	Nickel	Black	NPT 3/8"	15 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,NPT1/2,6-12,15,SGR,L	2-2490541-2	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Gray	NPT 1/2"	15 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,NPT1/2,6-12,15,LGR,L	2-2490541-3	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Light Gray	NPT 1/2"	15 mm	IP69	-40 – 100 °C	-
VENT CG,PA6,NPT1/2,6-12,15,BLK,L	2-2490541-4	Product Drawing 3D PDF	PA 6	6 – 12 mm	Nickel	Black	NPT 1/2"	15 mm	IP69	-40 – 100 °C	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Cable Gland Product Type Ventilated Cable Gland
Sealable Yes

Body Features

Primary Product Material Brass, PA 6
Primary Product Plating Material Nickel
Primary Product Color Black, Gray, Light Gray

Dimensions

Clamping Diameter Range (mm) 2 – 6, 3 – 7, 4 – 7, 4 – 8, 5 – 9, 6 – 12, 6 – 11
Outer Thread Size M12 x 1.5, M16 x 1.5, M20 x 1.5, NPT 1/2", NPT 3/8", PG11, PG13.5, PG7, PG9
Thread Length (mm) 8, 9, 10, 15

Usage Conditions

Operating Temperature Range (°C) -40 – 100, -20 – 100
Operating Temperature Range (°F) -40 – 212, -4 – 212

Industry Standards

UL Flammability Rating UL 94V-2
IP Rating IP67, IP69

Packaging Features

Packaging Method Bag

Other

Average Air Flow for ∆P of 1 PSI (l/h) 25, 35, 50, 70, 120

Reference Number

TE Internal Number CAT-AB0-VC
