This product is not currently available. For more information, including distributor inventory, please contact us.

View products below to see detailed pricing

  • Product Listing

This product is not currently available. For more information, including distributor inventory, please contact us.

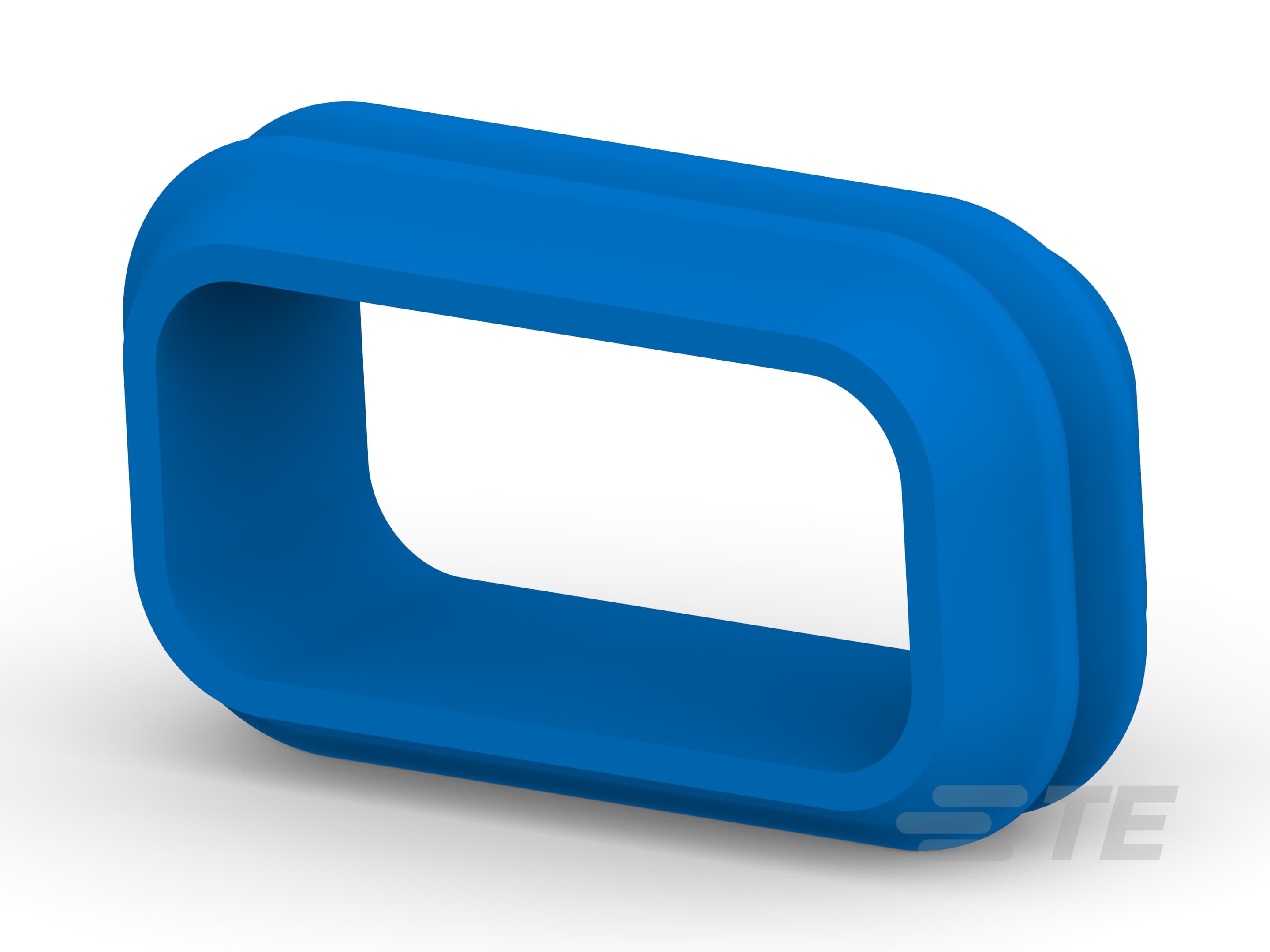

Connector Seals: 2.55 mm, Signal Double Lock

Connector Seals: 2.55 mm, Signal Double Lock-CAT-526SDL-SEALSE
2.5mm Sealed Connector: Seals, Signal Double Lock Connectors.
More Less
Connect with Us

Product Features

  • Connector Seal & Plug Type : Gang Wire Seal | Peripheral Seal

  • Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

  • Primary Product Color : Blue

  • Primary Product Material : Silicone Rubber

  • Compatible Insulation Diameter Range : 1.3 – 1.6 mm [ .051 – .062 in ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Seal & Plug Type  Gang Wire Seal | Peripheral Seal

Configuration Features

  • Number of Positions  2 | 3 | 4 | 5 | 6

Body Features

  • Primary Product Color  Blue

  • Primary Product Material  Silicone Rubber

Housing Features

  • Centerline (Pitch)  2.5 mm [ .098 in ]

Dimensions

  • Wire Size (AWG) 26 – 22

  • Wire Size (mm²) .128 – .325

  • Compatible Insulation Diameter Range  1.3 – 1.6 mm [ .051 – .062 in ]

Usage Conditions

  • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

  • Operating Temperature (Max)  105 °C [ 221 °F ]

Packaging Features

  • Packaging Method  Bag

  • Packaging Quantity  2000

Other

  • Shore A Hardness Range  50

  • Contains Lubricant  Yes

Related Materials

Datasheets & Catalog Pages
