CT 2mm Dbl Row Assembly w/Boss: Vert.

CT 2mm Dbl Row Assembly w/Boss: Vert.-CAT-3980700-DRWBSV

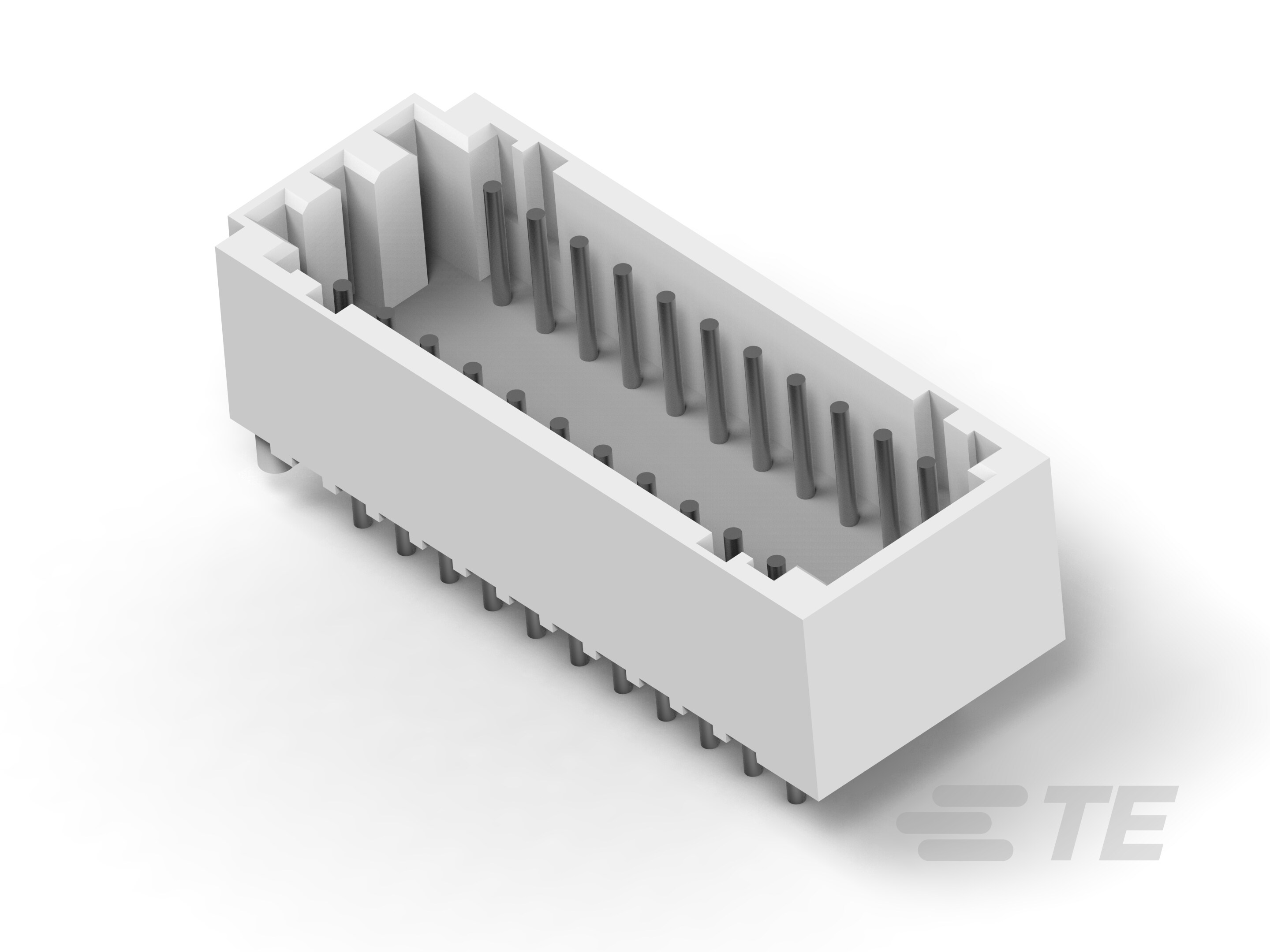

AMP CT 2.0mm Double Row Header Assembly: Vertical PCB Mount Orientation, with Boss.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Vertical

  • Connector System : Wire-to-Board

  • Number of Positions : 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30

  • Centerline (Pitch) : 2 mm [ .079 in ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Vertical

  • Number of Positions  16 | 18 | 20 | 22 | 24 | 26 | 28 | 30

  • Number of Rows  2

Electrical Characteristics

  • Operating Voltage (VAC) 125

  • Operating Voltage (VDC) 125

Body Features

  • Primary Product Color  Black | Natural

Contact Features

  • Contact Layout  Inline

  • Contact Mating Area Length  4.7 mm [ .185 in ]

  • PCB Contact Termination Area Plating Material Thickness  1 µm [ 39.37 µin ]

  • Contact Shape & Form  Round

  • Contact Base Material  Brass

  • Mating Pin Diameter  .6 mm [ .024 in ]

  • Contact Mating Area Plating Material  Tin (Sn)

  • Contact Mating Area Plating Material Finish  Bright | Matte

  • Contact Mating Area Plating Material Thickness  1 µm [ 39.37 µin ]

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 4

  • PCB Contact Termination Area Plating Material  Tin

Termination Features

  • Termination Post & Tail Length  3.2 mm [ .126 in ]

  • Termination Post & Tail Diameter  .6 mm [ .024 in ]

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Boardlock | Kinked Legs

  • PCB Mount Alignment Type  Boss | Kinked Legs | Locating Posts

  • Mating Alignment Type  Polarization

  • Mating Retention Type  Polarized Lock

  • PCB Mount Alignment  With | Without

  • Mating Retention  With | Without

  • PCB Mount Retention  With

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Centerline (Pitch)  2 mm [ .079 in ]

  • Housing Material  Nylon | Nylon 66 | Nylon GF

Dimensions

  • PCB Thickness (Recommended)  1.6 mm [ .063 in ]

  • Connector Length (mm) 10.7 | 21.9 | 23.8 | 23.9 | 25.8 | 25.9 | 27.8 | 27.9 | 29.8 | 29.9 | 31.9 | 33.9 | 35.9

  • Connector Length (in) .421 | .862 | .937 | .941 | 1.016 | 1.02 | 1.095 | 1.098 | 1.173 | 1.177 | 1.255 | 1.334 | 1.413

  • Row-to-Row Spacing (mm) 6.5

  • Row-to-Row Spacing (in) .255 | .256

  • Connector Width (mm) 10.7 | 21.9 | 23.9 | 25.9 | 27.9 | 29.9 | 31.9 | 33.9 | 35.9

  • Connector Width (in) .421 | .862 | .94 | 1.019 | 1.098 | 1.177 | 1.255 | 1.334 | 1.413

  • Connector Height  7.5 mm [ .295 in ]

  • Row-to-Row Spacing (mm) 6.5

Usage Conditions

  • Operating Temperature Range (°C) -40 – 105 | -30 – 105

  • Operating Temperature Range (°F) -40 – 221 | -22 – 221

Operation/Application

  • Assembly Process Feature  Pick and Place Cover

  • Circuit Application  Power & Signal

Industry Standards

  • Compatible With Approved Standards Products  CSA LR7189 | UL E28476

  • Compatible With Agency/Standards Products  CSA | UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  120 | 130 | 140 | 150 | 160 | 170 | 180 | 200

  • Packaging Method  Box | Carton | Tray

Reference Number

  • TE Internal Number CAT-3980700-DRWBSV
