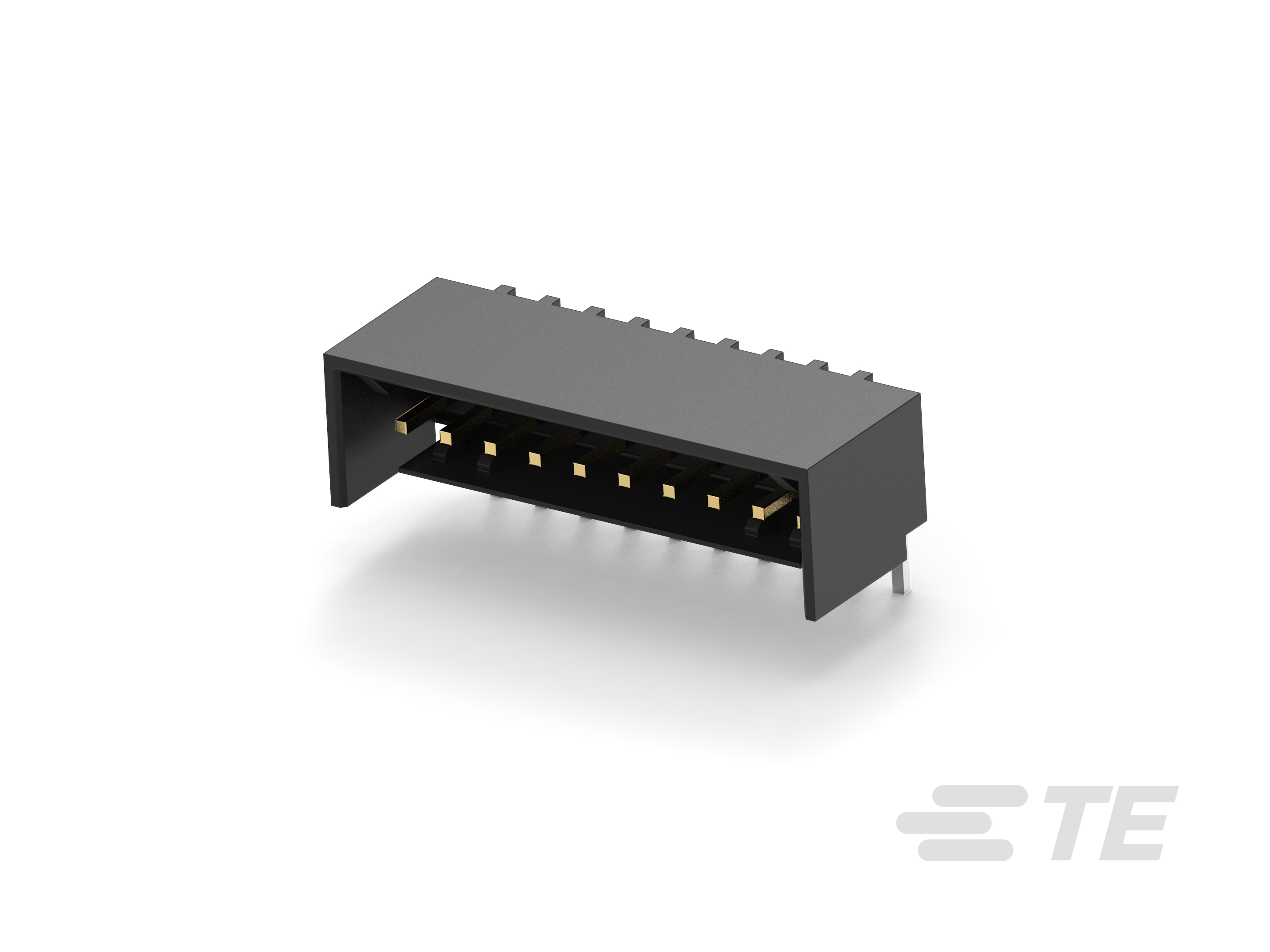

PCB Header, Right Angle, Polyester, 2.54 mm

PCB Header, Right Angle, Polyester, 2.54 mm-CAT-104MTA-PRSMH
Polyester Right Angle PCB Header: 2.54mm, Wire-to-Board, 2.54mm, 1 Row, Natural Housing Color, Shrouded, With Mating Alignment, MTA 100
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Right Angle

  • Connector System : Wire-to-Board

  • Number of Positions : 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 13

  • Number of Rows : 1

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Right Angle

  • Number of Positions  2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 13

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VAC) 250

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Underplating Material  Nickel

  • Contact Layout  Inline

  • Contact Mating Area Length  5.1 mm [ .2 in ]

  • PCB Contact Termination Area Plating Material Thickness (µm) .762 | 3.81 – 6.3 | 3.81 – 6.35

  • PCB Contact Termination Area Plating Material Thickness (µin) 30 | 150 – 250 | 150 – 350

  • Contact Mating Area Plating Material Finish  Bright | Matte

  • PCB Contact Termination Area Plating Material Finish  Matte

  • Mating Square Post Dimension  .64 mm [ .025 in ]

  • Contact Shape & Form  Square

  • Contact Underplating Material Thickness  1.27 µm [ 50 µin ]

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material Thickness (µm) .76 | 3.81 – 6.3

  • Contact Mating Area Plating Material Thickness (µin) 30 | 150 – 250

  • PCB Contact Termination Area Plating Material  Gold | Tin

  • Contact Mating Area Plating Material  Gold (Au) | Tin (Sn)

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 5

Termination Features

  • Square Termination Post & Tail Dimension  .64 mm [ .025 in ]

  • Termination Post & Tail Length  3.3 mm [ .13 in ]

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • Mating Retention  With

  • Panel Mount Feature  Without

  • Mating Alignment Type  Polarization

  • Mating Retention Type  Friction Lock

  • PCB Mount Retention  Without

  • PCB Mount Alignment  Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Housing Material  Polyester GF

  • Right Angle Bending Side  Front | Rear

  • Centerline (Pitch)  2.54 mm [ .1 in ]

Dimensions

  • PCB Thickness (Recommended)  1.6 mm [ .063 in ]

  • Connector Length (mm) 5.08 | 7.21 | 9.75 | 12.29 | 14.83 | 17.37 | 19.91 | 22.45 | 24.99 | 30.07 | 32.61 | 37.69

  • Connector Length (in) .2 | .284 | .384 | .484 | .584 | .684 | .784 | .884 | .984 | 1.184 | 1.284 | 1.484

  • Connector Height  10.41 mm [ .41 in ]

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

Industry Standards

  • Compatible With Approved Standards Products  CSA LR7189 | UL E28476

  • Compatible With Agency/Standards Products  CSA | UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  500 | 750 | 875 | 1000 | 1500 | 2000

  • Packaging Method  Bag | Box | Carton | Loose Piece | Package

Reference Number

  • TE Internal Number CAT-104MTA-PRSMH
