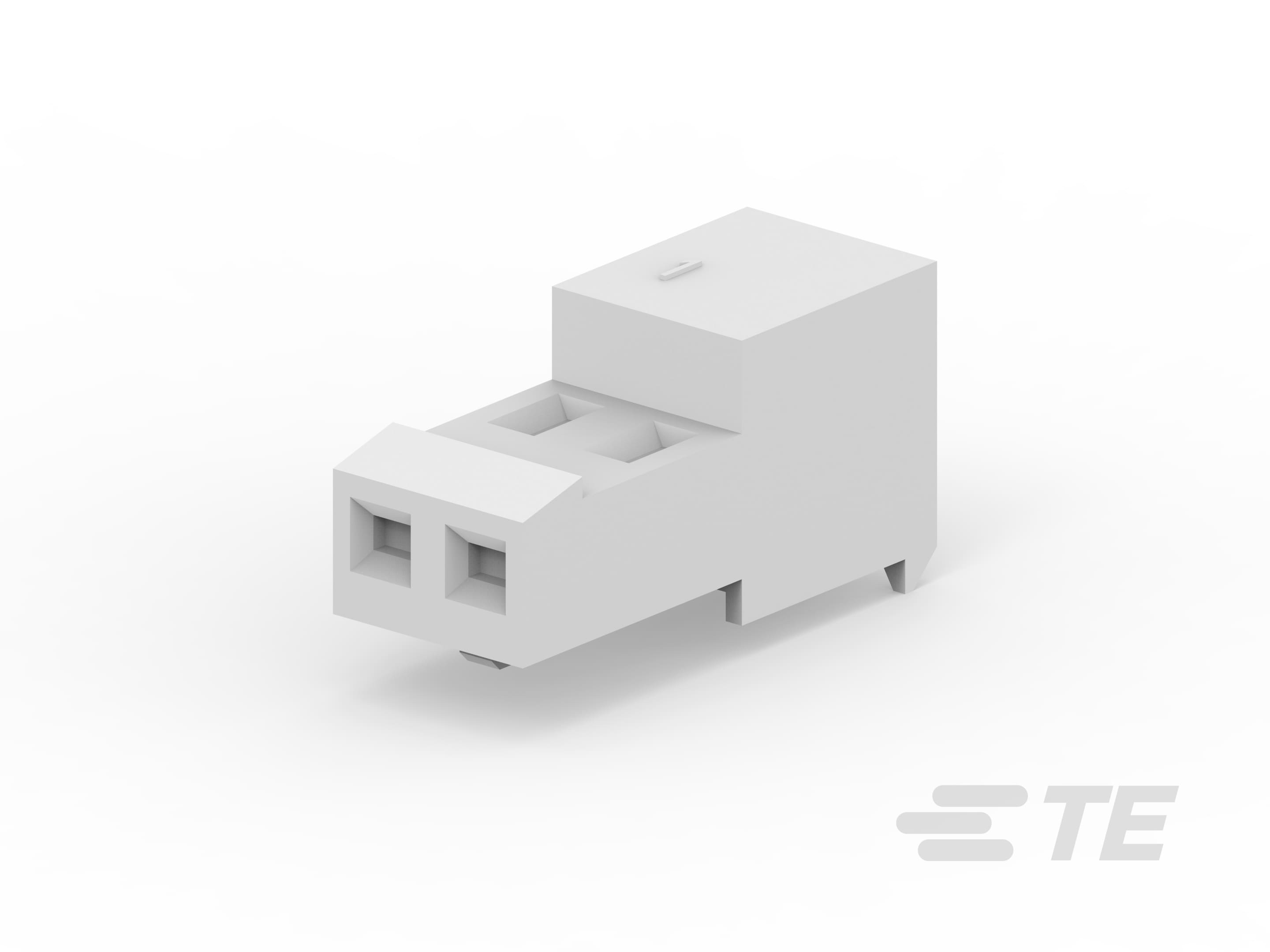

MTA Receptacle: Nylon, Tin Plated, 2.54 mm

Please review product documents or contact us for the latest agency approval information.

• Compatible With Discrete Wire Type  Stranded

• Connector & Housing Type  Receptacle

• Connector Product Type  Connector Assembly

• Connector System  Wire-to-Board

• Insertion Force Type  Normal

• Sealable  No

• Connector & Contact Terminates To  Wire & Cable

• Contacts Preloaded  Yes

• Number of Cavities  2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24

• Number of Positions  2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24

• Number of Rows  1

• Operating Voltage (VAC) 250

• Primary Product Color  Black | Blue | Green | Natural | Red | White

• Contact Underplating Material  Nickel

• Contact Type  Receptacle

• Wire Contact Termination Area Plating Material  Tin

• Contact Mating Area Plating Material  Tin (Sn)

• Contact Retention Within Housing  With

• Contact Current Rating (Max) (A) 5

• Termination Method to Wire & Cable  Insulation Displacement (IDC)

• Contact Retention Type Within Housing  Locking Lance

• Mating Alignment  Without

• Mating Retention  With

• Mating Retention Type  Locking Ramp

• Connector Mounting Type  Cable Mount (Free-Hanging)

• Housing Material  Nylon | Nylon 6/6

• Centerline (Pitch)  2.54 mm [ .1 in ]

• Connector Length (mm) 5.08 | 7.62 | 10.16 | 12.7 | 15.24 | 15.42 | 17.78 | 20.32 | 22.86 | 25.4 | 27.94 | 30.48 | 33.02 | 35.56 | 38.1 | 40.64 | 43.18 | 45.72 | 48.26 | 50.8 | 53.34 | 55.88 | 58.42 | 60.96

• Connector Length (in) .2 | .3 | .4 | .5 | .6 | .7 | .8 | .9 | 1 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 | 1.7 | 1.8 | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4

• Wire Size (AWG) 22 | 24 | 26 | 28

• Compatible Insulation Diameter (Max)  1.52 mm [ .06 in ]

• Connector Width (mm) 6.99 | 7.75 | 13.21

• Connector Width (in) .275 | .305 | .52

• Connector Height (mm) 6.99 | 13.21 | 13.47

• Connector Height (in) .275 | .52 | .53

• Wire Size (mm²) .08 – .09 | .12 – .15 | .2 | .3 – .4

• Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

• Shielded  No

• Circuit Application  Signal

• Circuit Identification Feature  With

• Compatible With Approved Standards Products  UL E28476

• UL Rating  Recognized

• CSA Rating  LR 7189

• Compatible With Agency/Standards Products  CSA | UL

• UL Flammability Rating  UL 94V-0 | UL 94V-2

• Packaging Method  Bag | Bag/Box | Box & Carton | Box & Tray | Package | Reel

• Packaging Quantity  1 | 125 | 250 | 500 | 1600 | 2200 | 2800 | 3700
