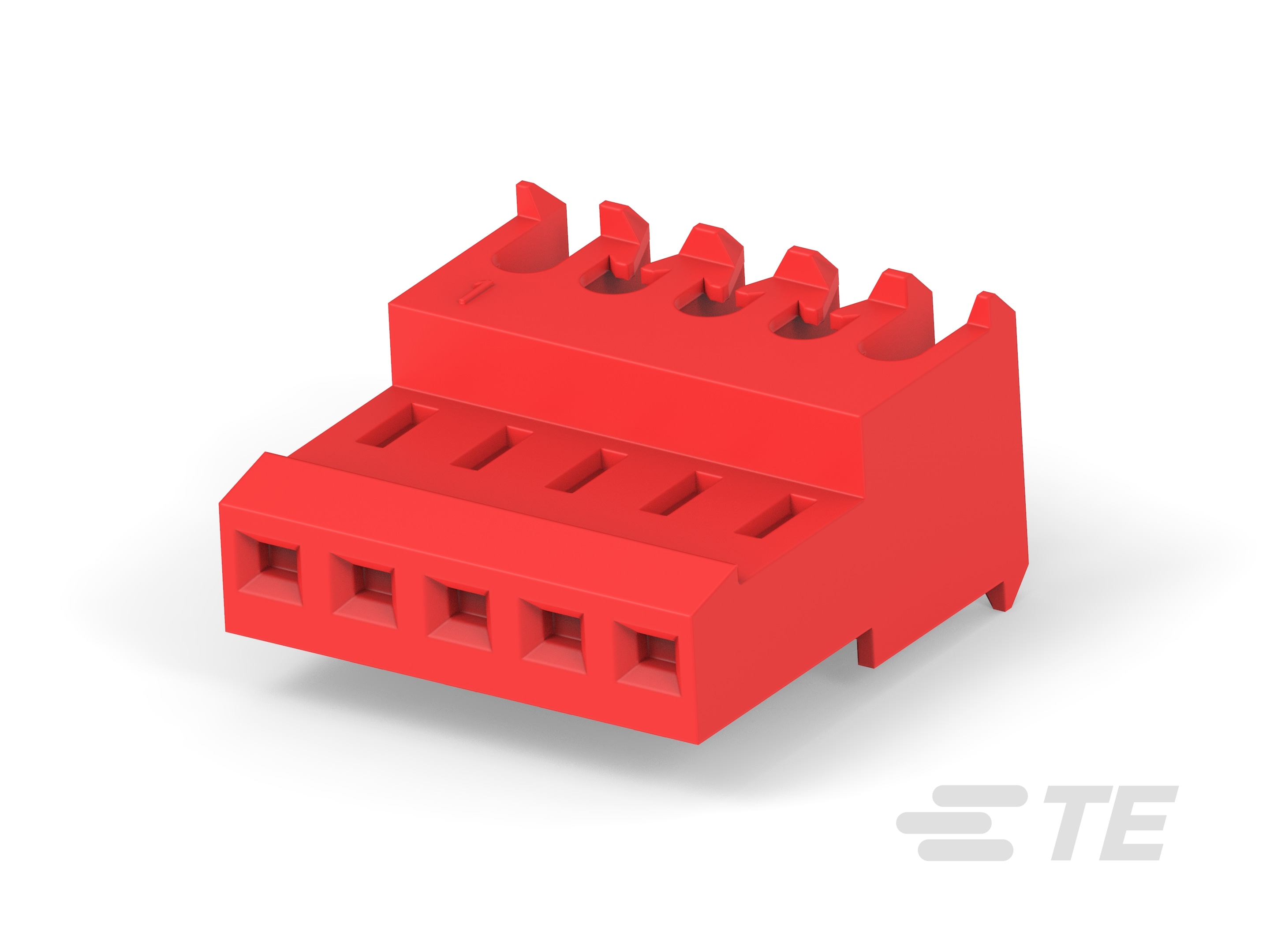

Nylon Gold Plated Receptacle: 2.54 mm, no Mating Alignment

Nylon Gold Plated Receptacle: 2.54 mm, no Mating Alignment-CAT-104MTA-NGPNR
Nylon Gold Plated Receptacle: 2.54mm, Standard Rectangular Connectors, Connector Assembly, No Mating Alignment, MTA 100
More Less

Product Features

  • Number of Positions : 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 25, 26

  • Connector & Housing Type : Receptacle

  • Connector Product Type : Connector Assembly

  • Mating Alignment : Without

  • Mating Retention : With

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Compatible With Discrete Wire Type  Stranded

  • Connector & Housing Type  Receptacle

  • Connector Product Type  Connector Assembly

  • Connector System  Wire-to-Board

  • Insertion Force Type  Normal

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Contacts Preloaded  Yes

  • Number of Cavities  2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 25, 26

  • Number of Positions  2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 25, 26

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VAC) 250

Body Features

  • Primary Product Color  Blue, Green, Red, White

Contact Features

  • Contact Underplating Material  Nickel

  • Contact Type  Receptacle

  • Wire Contact Termination Area Plating Material  Tin

  • Contact Mating Area Plating Material  Gold (Au), Gold Flash over Palladium Nickel

  • Contact Retention Within Housing  With

  • Contact Current Rating (Max) (A) 5

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Mechanical Attachment

  • Contact Retention Type Within Housing  Locking Lance

  • Mating Alignment  Without

  • Mating Retention  With

  • Mating Retention Type  Locking Ramp

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Housing Material  Nylon, Nylon 6/6, Nylon GF

  • Centerline (Pitch)  2.54 mm [ .1 in ]

Dimensions

  • Connector Length (mm) 5.08, 7.62, 10.16, 12.7, 15.24, 15.42, 17.78, 20.32, 22.86, 25.4, 27.94, 30.48, 33.02, 35.56, 40.64, 63.5, 66.04

  • Connector Length (in) .2, .3, .4, .5, .6, .7, .8, .9, 1, 1.1, 1.2, 1.3, 1.4, 1.6, 2.5, 2.6

  • Wire Size (AWG) 22, 24, 26, 28

  • Connector Width (mm) 6.99, 7.75, 13.21

  • Connector Width (in) .275, .305, .52

  • Connector Height (mm) 6.99, 13.21

  • Connector Height (in) .275, .52

  • Wire Size (mm²) .08 – .09, .12 – .15, .2, .3 – .4

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Shielded  No

  • Circuit Application  Signal

Industry Standards

  • Compatible With Approved Standards Products  UL E28476

  • UL Rating  Recognized

  • CSA Rating  LR 7189

  • Compatible With Agency/Standards Products  CSA, UL

  • UL Flammability Rating  UL 94V-2

Packaging Features

  • Packaging Method  Bag/Box, Box & Carton, Package

  • Packaging Quantity  125, 250, 500

Reference Number

  • TE Internal Number CAT-104MTA-NGPNR
