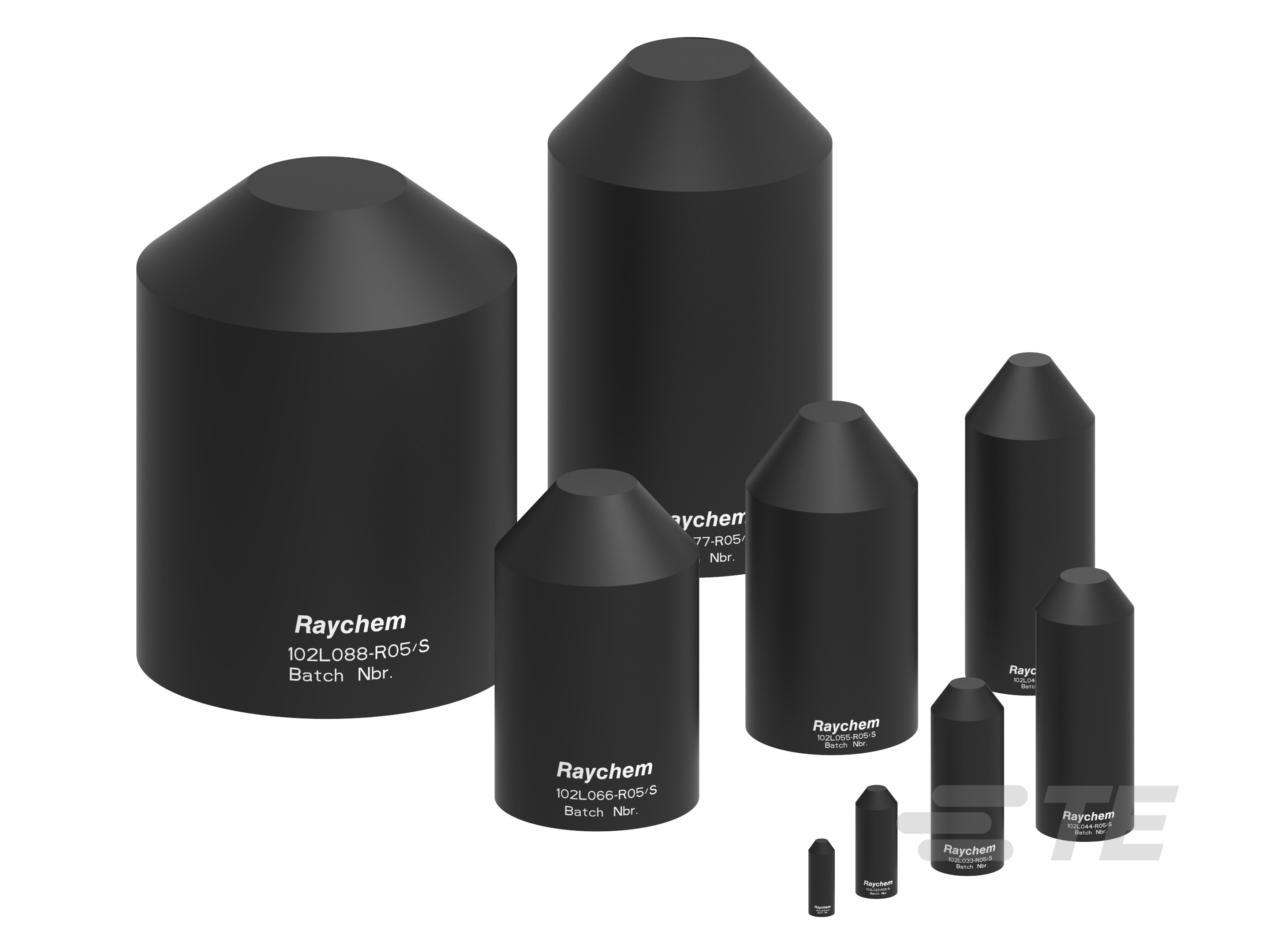

102L Heat Shrink End Cap

102L Heat Shrink End Cap-CAT-102L
  • RAYCHEM
|
  • RAYCHEM 102L
TE’s Raychem heat shrink end caps are designed to provide mechanical protection and an environmental seal to power cable ends.
More Less

Product Features

  • Product Availability : Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa

  • Adhesive Coating : With

  • Compatible Cable Diameter - Body (Min) (mm): 4.5, 16.5, 27, 49

  • Compatible Cable Diameter - Body (Min) (in): .649, 1.063, 1.929

  • Expanded Inside Diameter (Min) (mm): .98, 10, 12, 21.5, 32, 35, 40, 55, 57, 75, 100, 120, 170, 230

  • Flexibility : Semi-Rigid

Available from

LADD Inc
Overview

Our end caps may also be installed on pipes or poles made of plastic, metal or wood. When the caps are combined in a kit, the product becomes a live end seal kit capable of insulating energized power cables up to 1000 V.



Our Raychem end caps are made of cross-linked polyolefin material that is halogen free and contains ≥ 2.5% carbon black to protect it from ultra-violet light. It is both REACH and RoHS compliant.



Heat Shrink End Caps 102L are also manufactured with polyamide adhesive coating which melts and flows during the shrinking process creating a reliable moisture seal that is also fungus and weather resistant.



Key Features

  • High range taking product line to cover diameters from 4 mm up to 207 mm
  • Reliable seal against moisture and environmental contaminants
  • Excellent electrical performance with high mechanical strength and impact resistance
  • Cross-linked polyolefin material, halogen-free and non-corrosive. RoHS and REACH compliant
  • Type tested as live end seal kit according to EN50393:2015
  • Unlimited shelf-life

Know More

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Installation Technology  Heat Shrink

  • Coating Style  Planar, Spiral

  • Adhesive Coating  With

Electrical Characteristics

  • Voltage Class (kV) ≤ 1

Body Features

  • Primary Product Color  Black

  • Shrink Ratio  > 2:1

  • Primary Product Material  Crosslinked Polyolefin

  • Flexibility  Semi-Rigid

Dimensions

  • Wall Thickness  Thick/Heavy

  • Compatible Cable Diameter - Body (Max) (mm) 32, 50, 90

  • Recovered Wall Thickness (Max) (Body) (mm) 2.3, 2.5, 2.8, 3, 3.1, 3.2, 3.4, 3.56, 3.6, 3.8, 3.9, 4

  • Recovered Overall Length (Min) (mm) 20, 40, 50, 54, 55, 90, 125, 127, 138, 150, 170, 180, 200, 220

  • Compatible Cable Diameter - Body (Max) (mm) 32, 50, 90

  • Compatible Cable Diameter - Body (Max) (in) 1.259, 1.968, 3.543

  • Compatible Cable Diameter - Body (Min) (mm) 4.5, 16.5, 27, 49

  • Compatible Cable Diameter - Body (Min) (in) .649, 1.063, 1.929

  • Expanded Inside Diameter (Min) (mm) .98, 10, 12, 21.5, 32, 35, 40, 55, 57, 75, 100, 120, 170, 230

  • Recovered Inside Diameter (Max) (mm) 4, 7, 15, 25, 25.5, 32, 45, 60, 75, 80, 120

  • Recovered Overall Length (mm) 23, 38, 44, 45, 59, 60, 90, 100, 140, 143, 145, 160, 162, 165, 180, 200, 220, 250

Usage Conditions

  • Flammability Performance  Non-Flame-Retardant

  • Fluid Resistance Type  Hydrocarbons, Transformer Oil

  • Environmental Resistance  Contaminated Water, Moisture, Rain, Salt Water, Weathering

Operation/Application

  • Marine-Offshore-Shipbuilding Certified  No, Yes

  • Mechanical Resistance  Against Mechanical Impact

  • UV-Stabilized  Yes

Industry Standards

  • Compatible With Approved Standards Products  HD631.2, IEC 62329-3

  • Compatible With Agency/Standards Products  CSA, UL

Product Availability

  • Product Availability  Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa

Reference Number

  • TE Internal Number CAT-102L
