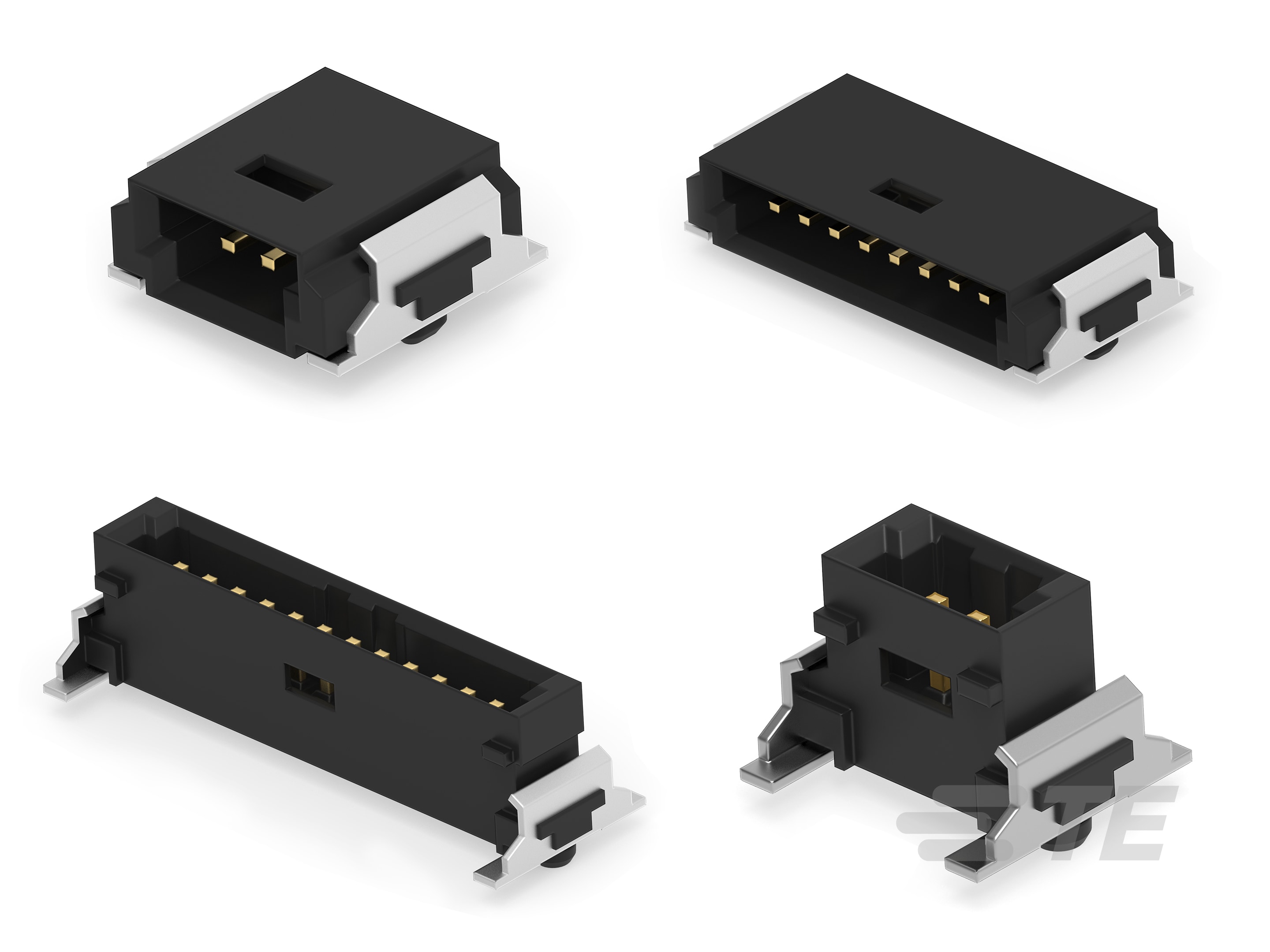

ERNI MiniBridge Standard Male Board Connector

Please review product documents or contact us for the latest agency approval information.

• Mixed & Hybrid Header  No

• Connector Shape  Rectangular

• PCB Connector Type  PCB Mount Header

• PCB Connector Type  PCB Mount Header

• Connector System  Cable-to-Board | Wire-to-Board

• Header Type  Fully Shrouded

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• Header Type  Fully Shrouded

• Connector Product Type  Connector Assembly

• Number of Columns  2 | 3 | 4 | 6 | 8 | 10 | 12

• Number of Loaded Positions  2 | 3 | 4 | 6 | 8 | 10 | 12

• Connector Contact Load Condition  Fully Loaded

• PCB Mount Orientation  Horizontal | Right Angle | Vertical

• PCB Mount Orientation  Horizontal | Right Angle | Vertical

• Number of Positions  2 | 3 | 4 | 6 | 8 | 10 | 12

• Number of Rows  1

• Number of Rows  1

• Dielectric Withstanding Voltage (Max) (Vrms) 500

• Insulation Resistance (MΩ) 10000

• Primary Product Color  Black | White

• Primary Product Color  Black | White

• Contact Mating Area Length  2.5 mm [ .098 in ]

• PCB Contact Termination Area Plating Material Thickness  4 – 6 µm [ 157.48 – 236.22 µin ]

• Contact Base Material  Copper Alloy

• Contact Layout  Inline

• Contact Shape & Form  Rectangular

• Contact Mating Area Plating Material  Gold (Au)

• Contact Type  Pin | Tab

• Contact Mating Area Plating Material  Gold (Au)

• Contact Current Rating (Max) (A) 3.6 | 3.7 | 4.3 | 4.8 | 12

• Contact Type  Pin | Tab

• PCB Contact Termination Area Plating Material  Tin

• Termination Method to PCB  Surface Mount

• Termination Method to PCB  Surface Mount

• Mounting Alignment Feature Length  .75 mm [ .029 in ]

• Mating Retention  With

• PCB Mount Alignment Type  Pegs

• Mating Alignment Type  Polarization

• Mating Retention Type  Friction Lock | Latching Feature

• PCB Mount Alignment  With

• PCB Mount Alignment  With

• Connector Mounting Type  Board Mount

• Mating Alignment  With

• PCB Mount Retention  With | Without

• PCB Mount Retention  With | Without

• Mating Entry Location  Side | Top

• Centerline (Pitch)  1.27 mm [ .05 in ]

• Housing Material  Liquid Crystal Polymer (LCP)

• Housing Material  Liquid Crystal Polymer (LCP)

• Connector Length (mm) 7.62 | 8.89 | 10.16 | 12.7 | 15.24 | 17.78 | 20.32

• Connector Length (in) .3 | .35 | .4 | .5 | .6 | .7 | .8

• Profile Height from PCB (mm) 2.98 | 6.1

• Profile Height from PCB (in) .117 | .24

• Connector Height (mm) 2.98 | 6.1

• Connector Height (in) .117 | .24

• Connector Width (mm) 7 | 7.2

• Connector Width (in) .276 | .283

• Operating Temperature (Max)  150 °C [ 302 °F ]

• Operating Temperature Range  -55 – 150 °C [ -67 – 302 °F ]

• Assembly Process Feature  Pick and Place Cover

• Circuit Application  Power & Signal

• Industry Standard  IEC

• Compatible With Agency/Standards Products  DIN | UL

• UL Flammability Rating  UL 94V-0

• UL Flammability Rating  UL 94V-0
