ERNI MiniBridge Standard Female Cable Connector

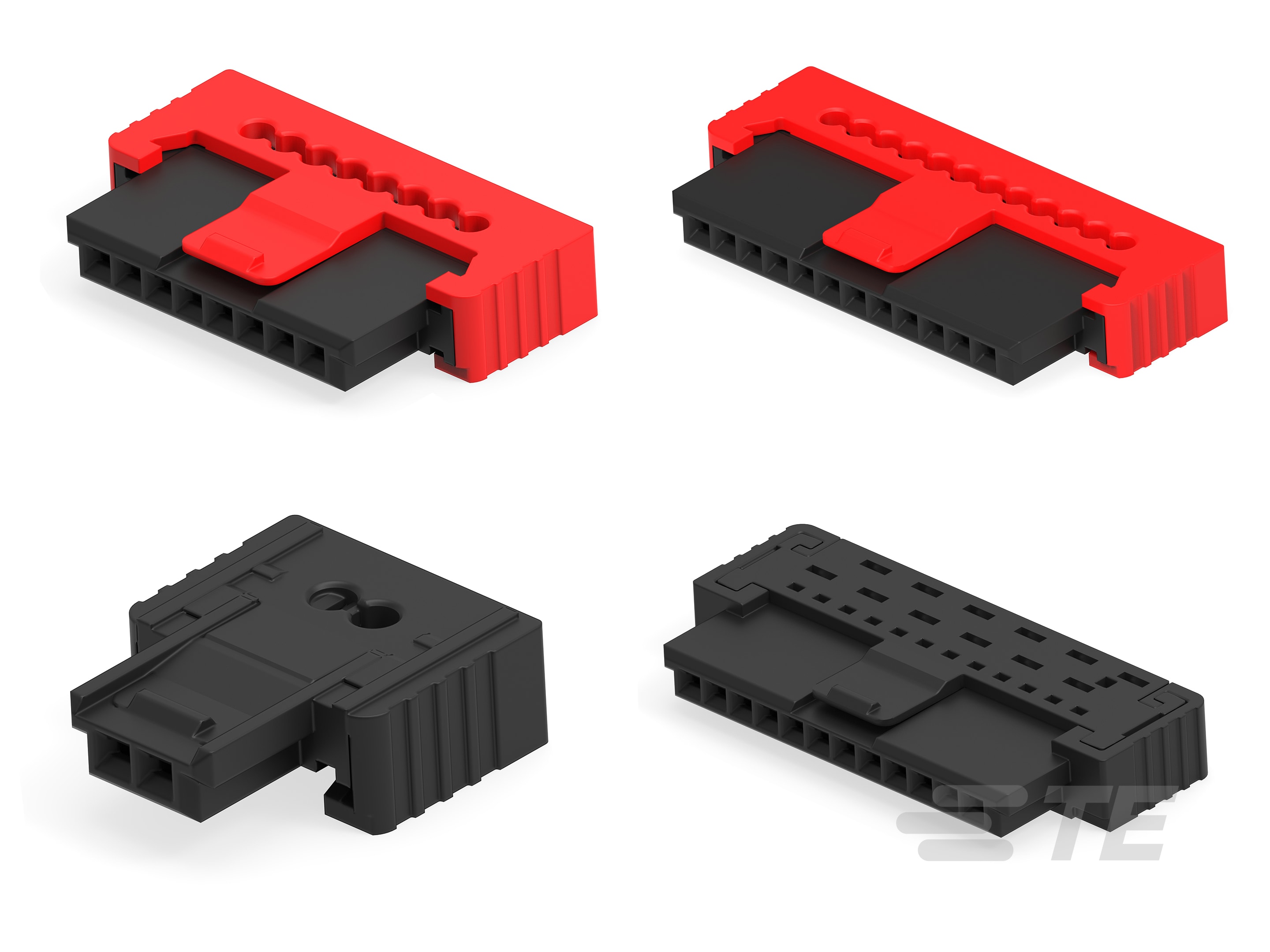

ERNI MiniBridge Standard Female Cable Connector-CAT-0B4-ERNISRCSFB
The MiniBridge connector is engineered to meet the demanding standards of both industrial and automotive applications, serving as a reliable wire-to-board solution. The standard female cable connector is designed to accommodate female contacts for variable wire sizes. It is available in both 180-degree (straight) and 90-degree (angled) versions, providing flexibility to suit a wide range of cable assembly scenarios. It offices both friction lock and positive lock to mee different purpose of applications
More Less
Connect with Us

Product Features

  • Connector Product Type : Connector Assembly | Housing

  • Mating Alignment : With

  • Mating Alignment Type : Polarization

  • Connector & Housing Type : Housing for Female Terminals | Receptacle

  • Mating Retention Type : Friction Lock | Latching Feature | Positive Lock

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly | Housing

  • Connector & Housing Type  Housing for Female Terminals | Receptacle

  • Connector & Housing Type  Housing for Female Terminals | Receptacle

  • Connector System  Cable-to-Board | Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  2 | 3 | 4 | 6 | 8 | 10 | 12

  • Number of Rows  1

  • Number of Rows  1

Body Features

  • Primary Product Color  Black

  • Primary Product Color  Black

  • Cable Exit Angle (°) 90 | 180

Contact Features

  • Contact Layout  Inline

  • Contact Base Material  Copper Alloy

  • Contact Current Rating (Max) (A) 8.7

  • Contact Type  Receptacle

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Mechanical Attachment

  • Mating Alignment  With

  • Mating Alignment Type  Polarization

  • Mating Retention Type  Friction Lock | Latching Feature | Positive Lock

  • Mating Retention  With

  • Mating Retention  With

  • Connector Mounting Type  Free-Hanging (In-Line)

Housing Features

  • Centerline (Pitch)  1.27 mm [ .05 in ]

  • Housing Material  Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) GF30

  • Housing Material  Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) GF30

Dimensions

  • Connector Length (mm) 7.62 | 8.89 | 10.16 | 12.7 | 15.24 | 17.78 | 20.32

  • Connector Length (in) .3 | .35 | .4 | .5 | .6 | .7 | .8

  • Connector Width  3 mm [ .118 in ]

  • Connector Height (mm) 9.2 | 11.4

  • Connector Height (in) .362 | .449

  • Wire Size (AWG) 22 | 26 – 24 | 26 – 22

  • Wire Size (mm²) .15 – .2 | .35

Usage Conditions

  • Operating Temperature Range  -55 – 150 °C [ -67 – 302 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  105 | 119 | 144 | 168 | 180 | 210 | 238 | 280

  • Packaging Method  Tray
