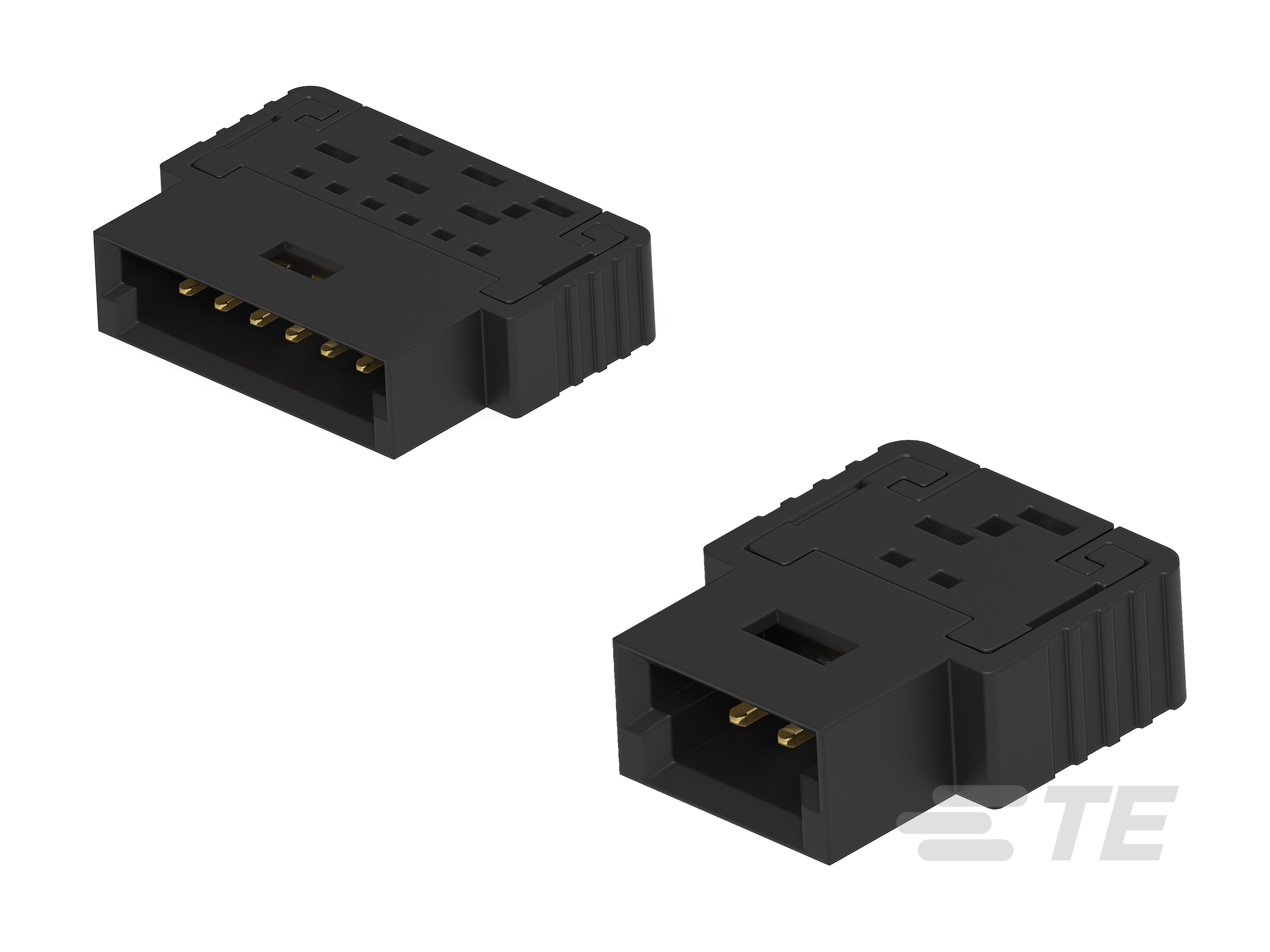

ERNI MiniBridge Standard Male Cable Connector

ERNI MiniBridge Standard Male Cable Connector-CAT-0B4-ERNISRCMI
The MiniBridge connector is engineered to meet the demanding standards of both industrial and automotive applications. The standard male cable connector provides a robust cable-side interface, designed to mate with corresponding female cable connectors to realize wire to wire solution.
More Less
Connect with Us

Product Features

  • Connector Product Type : Connector Assembly

  • Connector & Housing Type : Plug

  • Mating Retention : Without

  • Termination Method to Wire & Cable : Insulation Displacement (IDC)

  • Connector System : Cable-to-Board | Wire-to-Wire

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly

  • Connector & Housing Type  Plug

  • Connector System  Cable-to-Board | Wire-to-Wire

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  2 | 4

  • Number of Rows  1

Electrical Characteristics

  • Insulation Resistance (MΩ) 10000

  • Termination Resistance (mΩ) 25

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Layout  Inline

  • Contact Base Material  Copper Alloy

  • Contact Current Rating (Max) (A) 8.7

  • Contact Type  Pin | Tab

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Mechanical Attachment

  • Mating Retention  Without

  • Connector Mounting Type  Free-Hanging (In-Line)

Housing Features

  • Centerline (Pitch)  1.27 mm [ .05 in ]

  • Housing Material  Liquid Crystal Polymer (LCP)

Dimensions

  • Wire Size (AWG) 22

  • Wire Size (mm²) .35 | 1.07

Usage Conditions

  • Operating Temperature Range  -55 – 150 °C [ -67 – 302 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  210 | 280

  • Packaging Method  Tray
