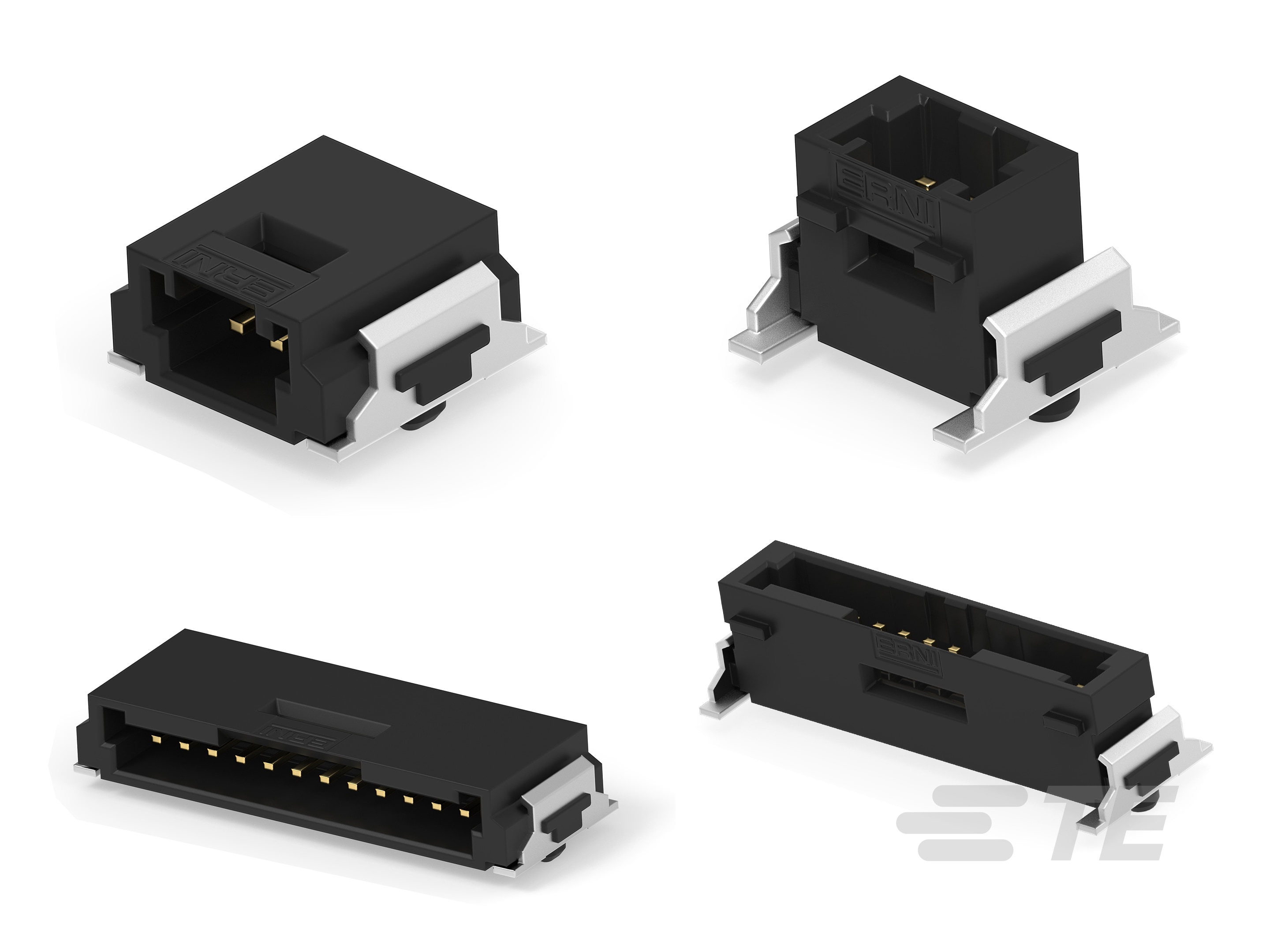

ERNI MiniBridge Koshiri Male Board Connector

ERNI MiniBridge Koshiri Male Board Connector-CAT-0B4-ERNISRCKM
The MiniBridge connector is engineered to meet the demanding standards of both industrial and automotive applications, serving as a reliable wire-to-board solution. The koshiri male board connector features an enhanced locking mechanism for secure mating, constructed using Surface Mount Technology (SMT) and offered in both straight and angled versions, ensuring reliable performance in high-vibration environments.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • Connector System : Cable-to-Board

  • Number of Positions : 2 | 3 | 4 | 6 | 8 | 10 | 12

  • Number of Rows : 1

  • Centerline (Pitch) : 1.27 mm [ .05 in ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Shape  Rectangular

  • PCB Connector Type  PCB Mount Header

  • Connector System  Cable-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • Number of Columns  2 | 3 | 4 | 6 | 8 | 10 | 12

  • Number of Loaded Positions  2 | 3 | 4 | 6 | 8 | 10 | 12

  • Connector Contact Load Condition  Fully Loaded

  • Number of Positions  2 | 3 | 4 | 6 | 8 | 10 | 12

  • Number of Rows  1

  • PCB Mount Orientation  Right Angle | Vertical

Electrical Characteristics

  • Insulation Resistance (MΩ) 10000

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Layout  Inline

  • Contact Mating Area Length  2.2 mm [ .087 in ]

  • PCB Contact Termination Area Plating Material Thickness  4 – 6 µm [ 157.48 – 236.22 µin ]

  • Contact Shape & Form  Rectangular

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Gold (Au)

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 5.8 | 6.1 | 8 | 8.7

  • PCB Contact Termination Area Plating Material  Tin

Termination Features

  • Termination Method to PCB  Surface Mount

Mechanical Attachment

  • Mounting Alignment Feature Length  .75 mm [ .029 in ]

  • PCB Mount Alignment Type  Pegs

  • Mating Retention  With

  • Mating Alignment Type  Polarization

  • Mating Retention Type  Friction Lock

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

  • PCB Mount Alignment  With

  • PCB Mount Retention  Without

Housing Features

  • Mating Entry Location  Side | Top

  • Centerline (Pitch)  1.27 mm [ .05 in ]

  • Housing Material  Liquid Crystal Polymer (LCP)

Dimensions

  • Connector Length (mm) 7.62 | 8.89 | 10.16 | 12.7 | 15.24 | 17.78 | 20.32

  • Connector Length (in) .3 | .35 | .4 | .5 | .6 | .7 | .8

  • Connector Width (mm) 7 | 7.2

  • Connector Width (in) .276 | .283

  • Profile Height from PCB (mm) 3.48 | 6.1

  • Profile Height from PCB (in) .137 | .24

  • Connector Height (mm) 3.48 | 6.1

  • Connector Height (in) .137 | .24

Usage Conditions

  • Operating Temperature (Max) (°C) 125 | 150

  • Operating Temperature (Max) (°F) 257 | 302

  • Operating Temperature Range  -55 – 150 °C [ -67 – 302 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Industry Standards

  • Industry Standard  IEC

  • Compatible With Agency/Standards Products  DIN | UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Reel Diameter  330 mm [ 12.99 in ]

  • Packaging Quantity  650 | 1000

  • Packaging Method  Tape & Reel

Related Materials
No documentation available.
