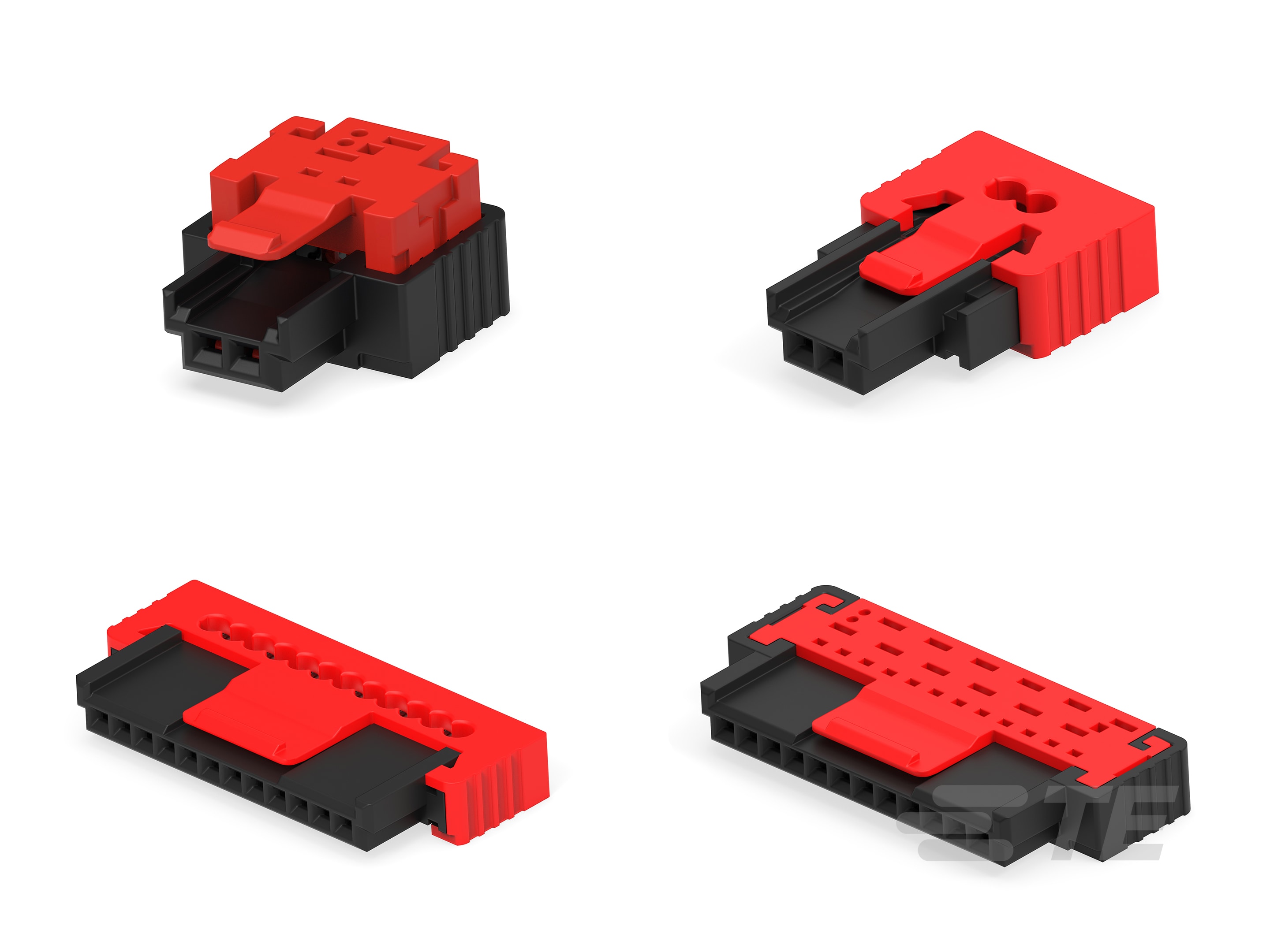

ERNI MiniBridge Koshiri Female Cable Connector

ERNI MiniBridge Koshiri Female Cable Connector-CAT-0B4-ERNISRCKF
The MiniBridge connector is engineered to meet the demanding standards of both industrial and automotive applications, serving as a reliable wire-to-board solution. The koshiri female cable connector features an enhanced positive locking mechanism that provides secure retention under demanding conditions. It is designed to mate with koshiri male board connectors, ensuring reliable connections in high-vibration industrial and automotive environments.
More Less
Connect with Us

Product Features

  • Connector Product Type : Connector Assembly

  • Connector & Housing Type : Receptacle

  • Mating Alignment : With

  • Mating Alignment Type : Polarization Groove

  • Mating Retention : With

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly

  • Connector & Housing Type  Receptacle

  • Connector System  Cable-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  2 | 3 | 4 | 6 | 8 | 10 | 12

  • Number of Rows  1

Body Features

  • Primary Product Color  Black

  • Cable Exit Angle (°) 90

Contact Features

  • Contact Layout  Inline

  • Contact Base Material  Copper Alloy

  • Contact Current Rating (Max) (A) 8.7

  • Contact Type  Receptacle

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC) | Insulation Displacement (IDC) Standard

Mechanical Attachment

  • Mating Alignment  With

  • Mating Alignment Type  Polarization Groove

  • Mating Retention  With

  • Mating Retention Type  Latching Feature | Positive Lock

  • Connector Mounting Type  Free-Hanging (In-Line)

Housing Features

  • Centerline (Pitch)  1.27 mm [ .05 in ]

  • Housing Material  Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) GF30

Dimensions

  • Connector Length (mm) 7.62 | 8.89 | 12.7 | 15.24 | 17.78 | 20.32

  • Connector Length (in) .3 | .35 | .5 | .6 | .7 | .8

  • Connector Height  11.4 mm [ .449 in ]

  • Wire Size (AWG) 22

  • Wire Size (mm²) .35

Usage Conditions

  • Operating Temperature Range  -55 – 150 °C [ -67 – 302 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  105 | 119 | 140 | 168 | 180 | 210 | 238 | 280

  • Packaging Method  Tray
