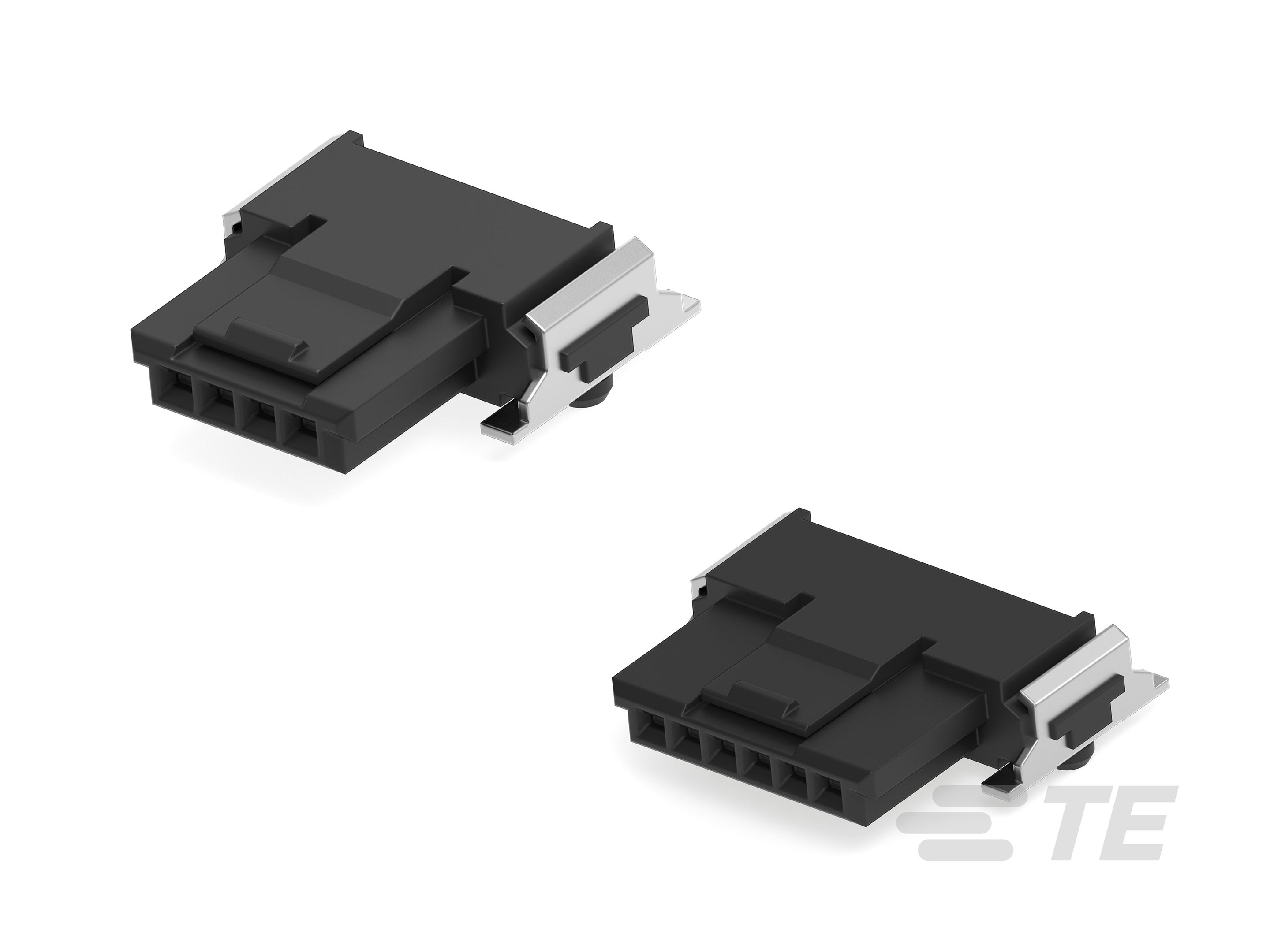

ERNI MiniBridge Standard Female Board Connector

Please review product documents or contact us for the latest agency approval information.

• Mixed & Hybrid Header  No

• Connector Shape  Rectangular

• PCB Connector Type  PCB Mount Receptacle

• PCB Connector Type  PCB Mount Receptacle

• Connector System  Board-to-Board | Cable-to-Board | Wire-to-Board

• Header Type  Fully Shrouded

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• Header Type  Fully Shrouded

• Connector Product Type  Connector Assembly

• Number of Columns  2 | 4 | 6

• Number of Loaded Positions  2 | 4 | 6

• Stackable  No

• Connector Contact Load Condition  Fully Loaded

• PCB Mount Orientation  Horizontal | Right Angle

• PCB Mount Orientation  Horizontal | Right Angle

• Number of Positions  2 | 3 | 4 | 6

• Number of Rows  1

• Number of Rows  1

• Primary Product Color  Black | White

• Primary Product Color  Black | White

• PCB Contact Termination Area Plating Material Thickness  4 – 6 µm [ 157.48 – 236.22 µin ]

• Contact Base Material  Copper Alloy

• Contact Layout  Inline

• Contact Mating Area Plating Material  Gold (Au)

• Contact Type  Receptacle

• Contact Mating Area Plating Material  Gold (Au)

• Contact Current Rating (Max) (A) 3.7 | 4.3 | 4.8

• Contact Type  Receptacle

• PCB Contact Termination Area Plating Material  Tin

• Termination Method to PCB  Surface Mount

• Termination Method to PCB  Surface Mount

• Mounting Alignment Feature Length  .75 mm [ .029 in ]

• Mating Retention  With

• PCB Mount Alignment Type  Pegs

• Mating Retention Type  Friction Lock | Locking Latch

• Mating Retention  With

• PCB Mount Alignment  With

• Mating Alignment Type  Polarization

• PCB Mount Alignment  With

• Mating Alignment Type  Polarization

• Connector Mounting Type  Board Mount

• Mating Alignment  With

• PCB Mount Retention  With | Without

• PCB Mount Retention  With | Without

• Mating Entry Location  Side

• Centerline (Pitch)  1.27 mm [ .05 in ]

• Housing Material  Liquid Crystal Polymer (LCP)

• Housing Material  Liquid Crystal Polymer (LCP)

• Connector Length (mm) 7.62 | 10.16 | 12.7

• Connector Length (in) .3 | .4 | .5

• Profile Height from PCB  3.01 mm [ .119 in ]

• Connector Height  3.01 mm [ .119 in ]

• Connector Width  11.1 mm [ .437 in ]

• Operating Temperature (Max)  125 °C [ 257 °F ]

• Operating Temperature Range (°C) -55 – 125 | -50 – 125 | -40 – 125

• Operating Temperature Range (°F) -67 – 257 | -58 – 257 | -40 – 257

• Circuit Application  Power & Signal

• Industry Standard  IEC

• Compatible With Agency/Standards Products  DIN | UL

• UL Flammability Rating  UL 94V-0

• UL Flammability Rating  UL 94V-0
